Запчасти Case IH 930 (4-11) - SPARK IGNITION ENGINE, CRANKSHAFT, PAGE 27 (02) - ENGINE

Схема запчастей Case IH 930 - (4-11) - SPARK IGNITION ENGINE, CRANKSHAFT, PAGE 27 (02) - ENGINE

Артикул

Название

Примечание

Количество

A9871

FLYWHEEL (use A20880 until present stocks are exhausted)

1шт.

A20880

FLYWHEEL - with ring gear (prior to serial no. 8172001) (see A22921)

1шт.

A22920

FLYWHEEL (use A22921)

1шт.

A22921

FLYWHEEL - with ring gear (serial no. 8172001 and after) (see A20880)

1шт.

A9492

CAMSHAFT (use A21516), valves, push rods, Figure 28

1шт.

A20865

TAPPET

LIFTER - push rod (use A21653) (has identifying grooves), valves, and camshaft, Figure 28

1шт.

A21061

LIFTER (never used. see A20865), valves, push rods, and camshaft, Figure 28

1шт.

A21516

CAMSHAFT, valves and push rods, Figure 28

1шт.

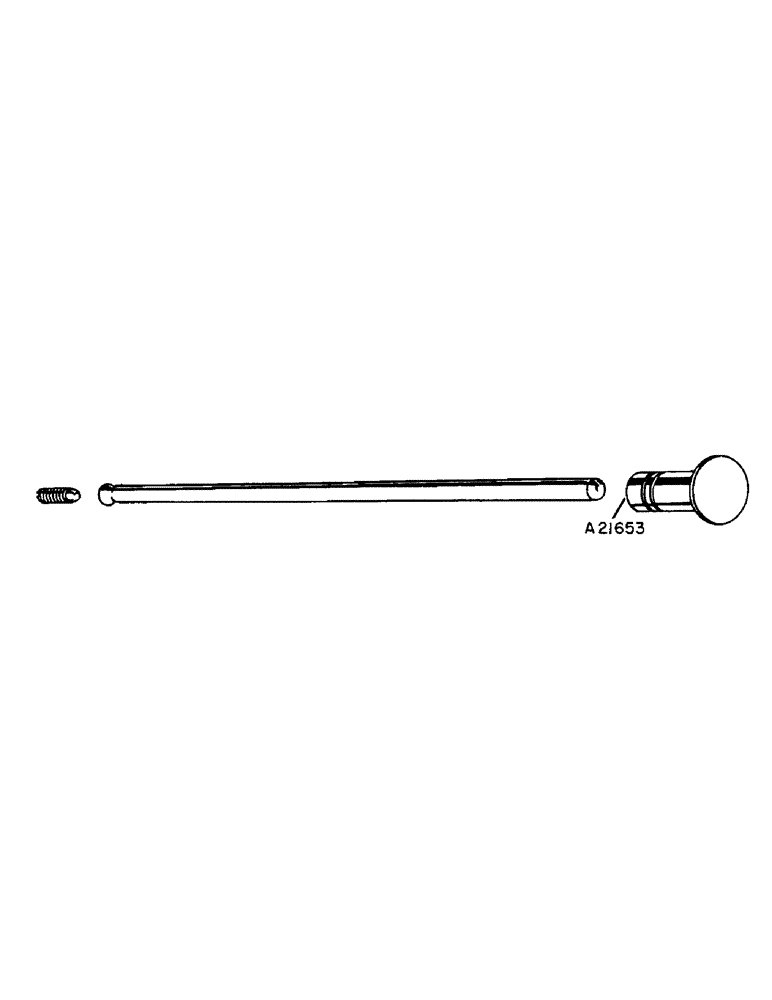

A21653

KIT

LIFTER - push rod, set of (4) A20865, valves and camshaft, Figure 28

3шт.

A21654

KIT

LIFTER - (never used. see A21653), valves, push rods and camshaft, Figure 28

1шт.

1

A21100

SHAFT

- valve rocker arm, forging

3шт.

2

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - valve push rod adjusting, rocker arm (forging)

12шт.

3

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.C. hex jam, rocker arm (forging)

12шт.

4

4607AA

X

ARM - inlet valve rocker, with bushing, forging

6шт.

5

4608AA

ARM - exhaust valve rocker, with bushing (for no. 1, 3 and 5 cylinders), forging

3шт.

6

4609AA

ARM - exhaust valve rocker, with bushing (for no. 2, 4 and 6 cylinders), forging

3шт.

7

O2803AB1

PLUG - valve rocker arm shaft, forging

6шт.

8

O9769AB

X

SPRING - valve rocker arm shaft, forging

3шт.

9

O9770AB

X

WASHER - valve rocker arm shaft, forging

18шт.

10

O9771AB

X

TUBE - oil, valve rocker arm shaft, forging

3шт.

11

O9772AB

X

"O" RING - valve rocker arm shaft oil tube, forging

3шт.

12

O9773AB

BRACKET - valve rocker arm shaft, forging

6шт.

13

15-764

BOLT (SPREADER)

BOLT - 7/16" x 4" N.C. hex, rocker arm (forging)

6шт.

14

92-7

LOCK WASHER,7/16"

rocker arm, forging 7/16"

6шт.

15

O9774AB

STUD - valve rocker arm shaft bracket, forging

6шт.

16

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex, rocker arm (forging)

6шт.

17

92-7

LOCK WASHER,7/16"

rocker arm, forging 7/16"

6шт.

18

O3658CH

X

SNAP RING - valve rocker arm shaft, forging

6шт.

19

O9767AB

X

BUSHING - inlet and exhaust rocker arm, forging

12шт.

20

O9882AB

X

WICK - exhaust valve rocker arm, forging

6шт.

1

A22320

SHAFT - valve rocker arm, pressed steel

3шт.

2

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - valve push rod adjusting, rocker arm (pressed steel)

12шт.

3

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.C. hex jam, rocker arm (pressed steel)

12шт.

4

A22322

ROCKER

ARM - inlet valve rocker, includes A21105 adjusting screw and 3/8" N.C. hex jam nut, pressed steel

6шт.

5

A22324

ROCKER

ARM - exhaust valve rocker, includes A21105 adjusting screw and 3/8" N.C. hex jam nut (for no. 1, 3 and 5 cylinders), pressed steel

3шт.

6

A22326

ROCKER

ARM - exhaust valve rocker, includes A21105 adjusting screw and 3/8" N.C. hex jam nut (for no. 2, 4 and 6 cylinders), pressed steel

3шт.

7

A22319

PLUG - valve rocker arm shaft, pressed steel

6шт.

8

O9769AB

X

SPRING - valve rocker arm shaft, pressed steel

3шт.

9

O9770AB

X

WASHER - valve rocker arm shaft, pressed steel

18шт.

10

O9771AB

X

TUBE - oil, valve rocker arm shaft, pressed steel

3шт.

11

O9772AB

X

"O" RING - valve rocker arm shaft oil tube, pressed steel

3шт.

12

O9773AB

BRACKET - valve rocker arm shaft, pressed steel

6шт.

13

15-764

BOLT (SPREADER)

BOLT - 7/16" x 4" N.C. hex, rocker arms (pressed steel)

6шт.

14

92-7

LOCK WASHER,7/16"

rocker arms (pressed steel) 7/16"

6шт.

15

O9774AB

STUD - valve rocker arm shaft bracket, pressed steel

6шт.

16

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex, rocker arms (pressed steel)

6шт.

17

92-7

LOCK WASHER,7/16"

rocker arms (pressed steel) 7/16"

6шт.

18

O3658CH

X

SNAP RING - valve rocker arm shaft, pressed steel

6шт.

Выбрано товаров: 48
