Запчасти Case IH 930 (4-11[3]) - SPARK IGNITION ENGINE, ROCKER ARMS, PRESSED STEEL (02) - ENGINE

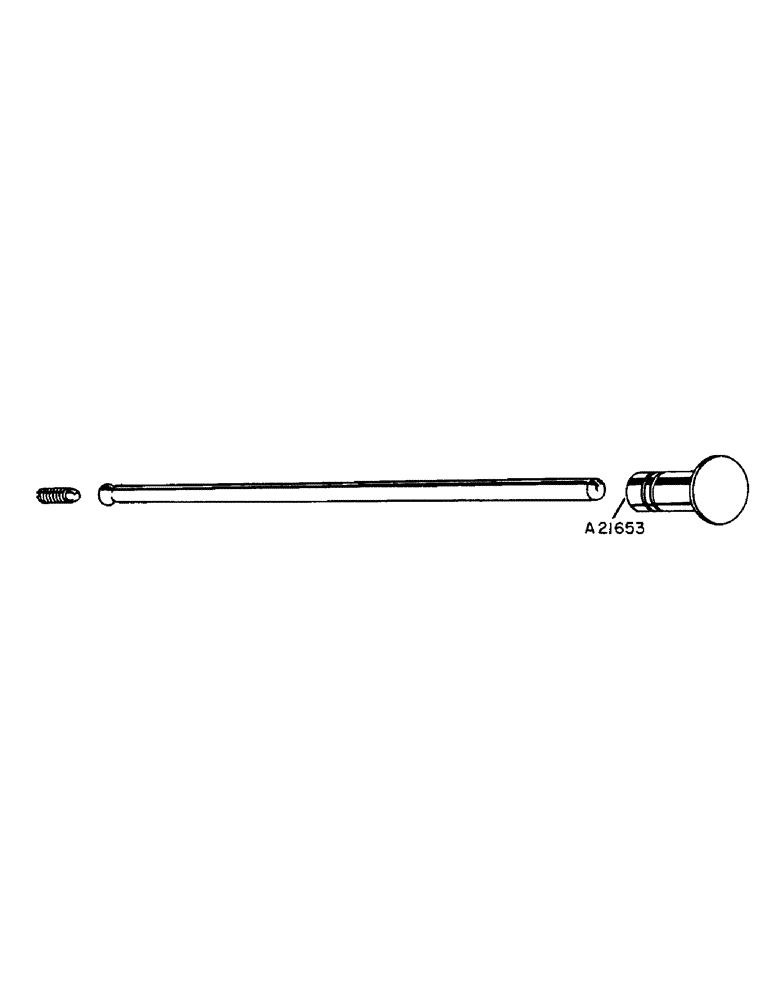

Схема запчастей Case IH 930 - (4-11[3]) - SPARK IGNITION ENGINE, ROCKER ARMS, PRESSED STEEL (02) - ENGINE

Артикул

Название

Примечание

Количество

A9871

FLYWHEEL (use A20880 until present stocks are exhausted)

1шт.

A20880

FLYWHEEL - with ring gear (prior to serial no. 8172001) (see A22921)

1шт.

A22920

FLYWHEEL (use A22921)

1шт.

A22921

FLYWHEEL - with ring gear (serial no. 8172001 and after) (see A20880)

1шт.

A9492

CAMSHAFT (use A21516)

1шт.

A20865

TAPPET

LIFTER - push rod (use A21653) (has identifying grooves)

1шт.

A21061

LIFTER (never used. see A20865)

1шт.

A21516

CAMSHAFT

1шт.

A21653

KIT

LIFTER - push rod, set of (4) A20865

3шт.

A21654

KIT

LIFTER - (never used. see A21653)

1шт.

1

A21100

SHAFT

- valve rocker arm

3шт.

2

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - valve push rod adjusting

12шт.

3

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.C. hex jam

12шт.

4

4607AA

X

ARM - inlet valve rocker, with bushing

6шт.

5

4608AA

ARM - exhaust valve rocker, with bushing (for no. 1, 3 and 5 cylinders)

3шт.

6

4609AA

ARM - exhaust valve rocker, with bushing (for no. 2, 4 and 6 cylinders)

3шт.

7

O2803AB1

PLUG - valve rocker arm shaft

6шт.

8

O9769AB

X

SPRING - valve rocker arm shaft

3шт.

9

O9770AB

X

WASHER - valve rocker arm shaft

18шт.

10

O9771AB

X

TUBE - oil, valve rocker arm shaft

3шт.

11

O9772AB

X

"O" RING - valve rocker arm shaft oil tube

3шт.

12

O9773AB

BRACKET - valve rocker arm shaft

6шт.

13

15-764

BOLT (SPREADER)

BOLT - 7/16" x 4" N.C. hex

6шт.

14

92-7

LOCK WASHER,7/16"

6шт.

15

O9774AB

STUD - valve rocker arm shaft bracket

6шт.

16

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

6шт.

17

92-7

LOCK WASHER,7/16"

6шт.

18

O3658CH

X

SNAP RING - valve rocker arm shaft

6шт.

19

O9767AB

X

BUSHING - inlet and exhaust rocker arm

12шт.

20

O9882AB

X

WICK - exhaust valve rocker arm

6шт.

1

A22320

SHAFT - valve rocker arm

3шт.

2

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - valve push rod adjusting

12шт.

3

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.C. hex jam

12шт.

4

A22322

ROCKER

ARM - inlet valve rocker, includes A21105 adjusting screw and 3/8" N.C. hex jam nut

6шт.

5

A22324

ROCKER

ARM - exhaust valve rocker, includes A21105 adjusting screw and 3/8" N.C. hex jam nut (for no. 1, 3 and 5 cylinders)

3шт.

6

A22326

ROCKER

ARM - exhaust valve rocker, includes A21105 adjusting screw and 3/8" N.C. hex jam nut (for no. 2, 4 and 6 cylinders)

3шт.

7

A22319

PLUG - valve rocker arm shaft

6шт.

8

O9769AB

X

SPRING - valve rocker arm shaft

3шт.

9

O9770AB

X

WASHER - valve rocker arm shaft

18шт.

10

O9771AB

X

TUBE - oil, valve rocker arm shaft

3шт.

11

O9772AB

X

"O" RING - valve rocker arm shaft oil tube

3шт.

12

O9773AB

BRACKET - valve rocker arm shaft

6шт.

13

15-764

BOLT (SPREADER)

BOLT - 7/16" x 4" N.C. hex

6шт.

14

92-7

LOCK WASHER,7/16"

6шт.

15

O9774AB

STUD - valve rocker arm shaft bracket

6шт.

16

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

6шт.

17

92-7

LOCK WASHER,7/16"

6шт.

18

O3658CH

X

SNAP RING - valve rocker arm shaft

6шт.

Выбрано товаров: 48
