(4-10[1]) - SPARK IGNITION ENGINE, ROCKER ARMS, FORGING, ROCKER ARMS, PRESSED STEEL, CYLINDER BLOCK

Запчасти Case IH 930 (4-10[1]) - SPARK IGNITION ENGINE, ROCKER ARMS, FORGING, ROCKER ARMS, PRESSED STEEL, CYLINDER BLOCK (02) - ENGINE

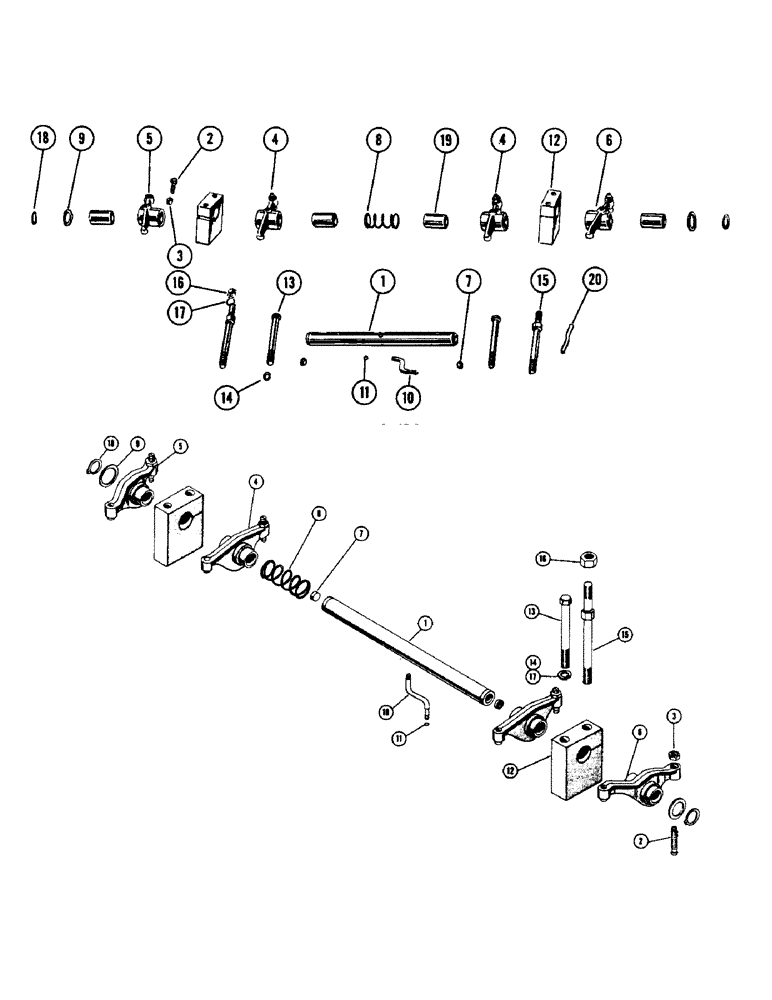

Схема запчастей Case IH 930 - (4-10[1]) - SPARK IGNITION ENGINE, ROCKER ARMS, FORGING, ROCKER ARMS, PRESSED STEEL, CYLINDER BLOCK (02) - ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

O9713AB

PIN - piston (see A23107)

1шт.

A23107

PISTON PIN

PIN - piston (replaces 09713AB) (use A21723)

6шт.

A21723

PIN

PISTON PINS - set of (2) A23107 and (4) 09714AB retainer

3шт.

A22394

PLUG

- expansion, rear camshaft bore (replaces A41-40)

1шт.

A41-40

PLUG - Welch (use A22394)

1шт.

Выбрано товаров: 5
