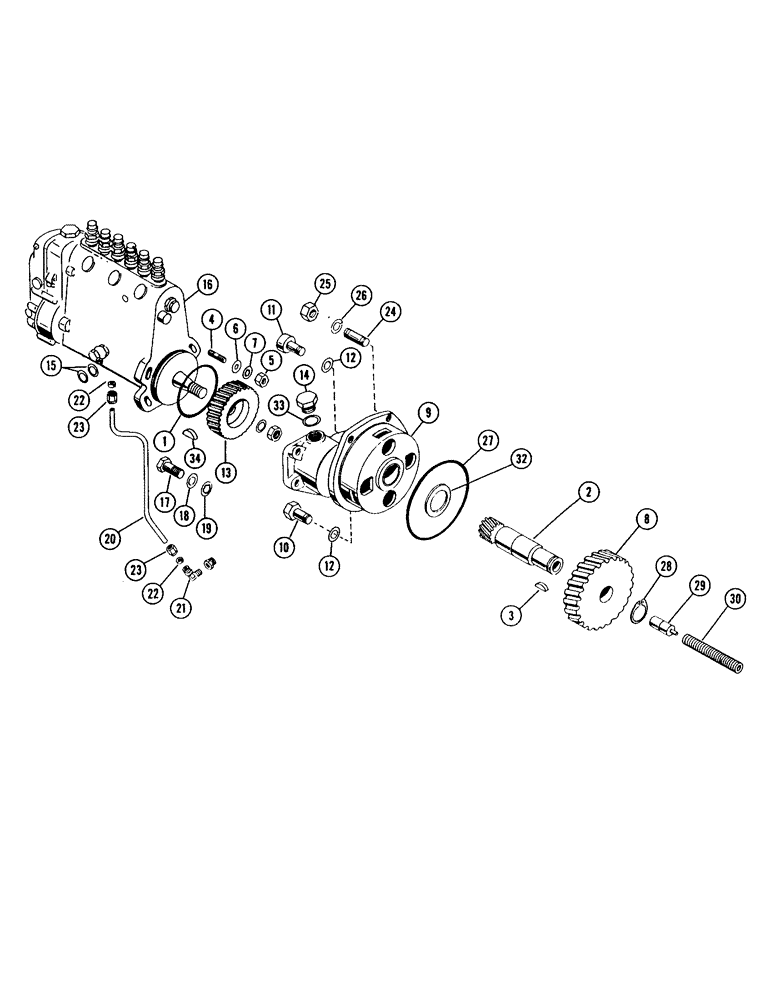

Запчасти Case IH 930 (3-6) - DIESEL ENGINE, MULTIPLUNGER FUEL PUMP NO. A22637, ENGINE LUBRICATED (02) - ENGINE

1

A20529

O-RING,2.598" ID x 2.834" OD

"O" RING - fuel pump to housing

1шт.

2

A20622

GEAR

SHAFT AND PINION - fuel pump

1шт.

3

126-66

WOODRUFF KEY

#141

1шт.

4

A20664

STUD - fuel, Serial Range: pump-housing

2шт.

5

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

6

195-25

WASHER,3/8"

2шт.

7

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , #1220-00 Int Tooth, 3/8"

2шт.

8

A20899

GEAR WHEEL

GEAR - fuel pump drive, Serial Range: (fastens-pinion)

1шт.

9

A21137

HOUSING - use A21136

1шт.

9

A21136

HOUSING - fuel pump drive shaft, with bushings

1шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

11

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - 3/8" x 1-1/4" N.C. hex socket head

1шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

A21139

GEAR

- fuel pump drive, Serial Range: (fastens-pump)

1шт.

14

A21140

PLUG

- timing hole

1шт.

15

A22381

WASHER

- copper, leak-off, Serial Range: fitting-pump

2шт.

16

A22637

FUEL PUMP - Robert Bosch no. PES-6A-80B-420LS-445/11 (1600 RPM)

1шт.

17

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex

2шт.

18

195-25

WASHER,3/8"

2шт.

19

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , #1220-00 Int Tooth, 3/8"

2шт.

20

A22640

TUBE

- oil gallery to fuel pump

1шт.

21

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 1/4" tube x 1/8" P.T. (A22640 to block)

1шт.

22

222-102

SLEEVE,1/4" Tube

(on A22640) 1/4" Tube

2шт.

23

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube fitting (on A22640)

2шт.

24

O1579AB

STUD - fuel pump drive housing to cylinder block

1шт.

25

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

O8861AB

X

"O" RING - drive shaft housing

1шт.

28

O9016AB

X

SNAP RING - drive shaft

1шт.

29

O9725AB

X

PLUNGER - drive shaft

1шт.

30

O9726AB

X

SPRING - drive shaft thrust plunger

1шт.

32

O9745AB

X

WASHER - drive shaft thrust

1шт.

33

O9892AB

STUD

GASKET - timing hole plug

1шт.

34

A20933

KEY

- A21139 gear to pump shaft

1шт.

A20688

CLIP

- A20693 fuel tube (replaces 09649AB), first and second stage fuel filters and tubes (Figure 18)

1шт.

A20692

TUBE - leak-off, relief valve to fuel tank (use with A21578 tank), first and second stage fuel filters and tubes (Figure 18)

1шт.

A22805

TUBE - leak-off, relief valve to fuel tank (use with A22457 tank), first and second stage fuel filters and tubes (Figure 18)

1шт.
