Запчасти Case IH 930 (2-063) - FAN AND WATER PUMP ASSEMBLY (02) - ENGINE

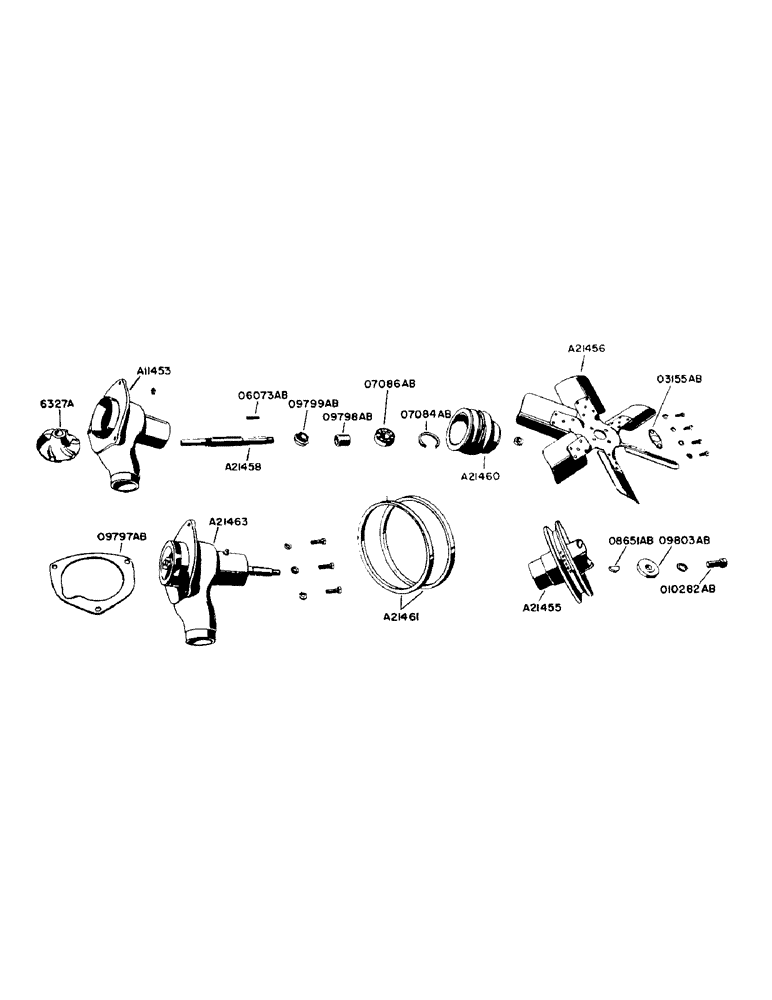

Схема запчастей Case IH 930 - (2-063) - FAN AND WATER PUMP ASSEMBLY (02) - ENGINE

Артикул

Название

Примечание

Количество

A11452

BODY - water pump (use A11453)

1шт.

A11453

BODY

- water pump, with bushing

1шт.

3/8" socket hd. pipe plug

1шт.

A15571

KIT - water pump repair (consists of; 1 - A21458, 1 - 6327A, 1 - 03155AB, 1 - 06073AB, 1 - 07084AB, 1 - 07086AB, 1 - 09797AB, 1 - 09798AB and 1 - 09799AB)

1шт.

A21455

X

PULLEY - fan drive, on crankshaft

1шт.

A21456

X

FAN - radiator use A23106

1шт.

FAN-SHOULD USE A23106

1шт.

A21458

X

SHAFT - water pump and fan

1шт.

5/8" N.F. hex. jam nut

1шт.

A21460

PULLEY

- fan

1шт.

3/8" x 3/4" N.C. hex. bolt w/lockwasher

4шт.

A21461

BELT 49.25" L, 2 Matched, Fan and generator 49.25" L

1шт.

A21463

X

PUMP - water, less fan pulley

1шт.

1/8" - 67-1/2 degree safety vent lub. fitting

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher

3шт.

6327A

IMPELLER - water pump

1шт.

O3155AB

X

LOCK - water pump shaft nut

1шт.

O6073AB

X

KEY - water pump and fan shaft

1шт.

O7084AB

X

SNAP RING - bearing

1шт.

O7086AB

X

BEARING - water pump shaft (ND #8604)

1шт.

O8651AB

X

KEY - Woodruff, fan drive pulley on crankshaft

1шт.

O9797AB

GASKET

- water pump

1шт.

O9798AB

X

BUSHING - water pump

1шт.

O9799AB

SEAL - water pump

1шт.

O9803AB

X

WASHER - lower fan drive pulley

1шт.

O10282AB

X

BOLT - lower, fan drive pulley

1шт.

5/8" std. lockwasher

1шт.

FOOTNOTE

1шт.

Выбрано товаров: 28
