Запчасти Case IH 930 (2-062[2]) - THERMOSTAT AND WATER MANIFLOD, STARTING CRANK (02) - ENGINE

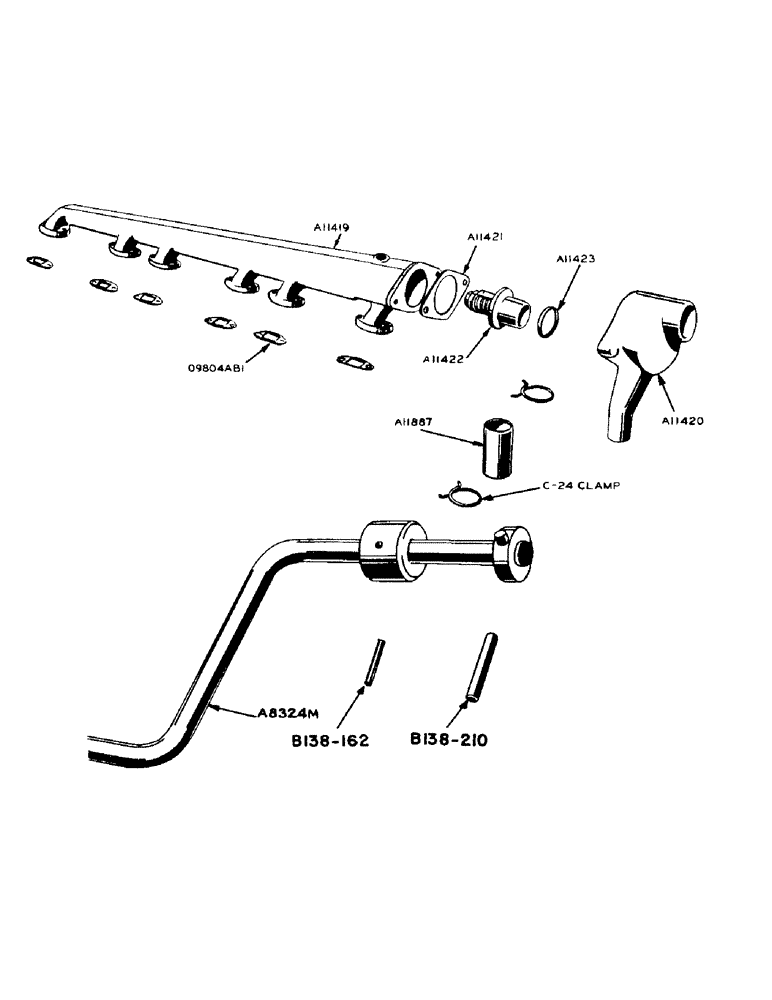

Схема запчастей Case IH 930 - (2-062[2]) - THERMOSTAT AND WATER MANIFLOD, STARTING CRANK (02) - ENGINE

Артикул

Название

Примечание

Количество

A11420

HOUSING - thermostat, diesel (see A20921)

1шт.

A11421

GASKET

- housing

1шт.

A11422

X

THERMOSTAT - 187 degree - 202 degree

1шт.

A11423

SEAL

- thermostat

1шт.

A20921

HOUSING - thermostat, LP-gas (see A11420)

1шт.

A11419

HOSE ASSY.

MANIFOLD - water

1шт.

5/16" x 1-1/8" N.C. hex. bolt w/lockwasher

12шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher

2шт.

A11887

HOSE,1.50" ID x 2.75", SAE 20R2

- Water by-pass 1.50" ID x 2.75", SAE 20R2

1шт.

#C-24 Corbin hose clamp

2шт.

A21462

SENDER UNIT

SENDING UNIT - temperature

1шт.

O9804AB1

X

GASKET - water manifold

6шт.

A8324M

CRANK - starting (machy. item)

1шт.

B138-162

ROLL PIN - 5/16" x 2-1/4"

1шт.

B138-210

ROLL PIN - 1/2" x 3", collar

1шт.

Выбрано товаров: 15
