Запчасти Case IH 930 (2-060) - RADIATOR AND GRILLE, SEE PAGE 24 OF SUPPLEMENT (02) - ENGINE

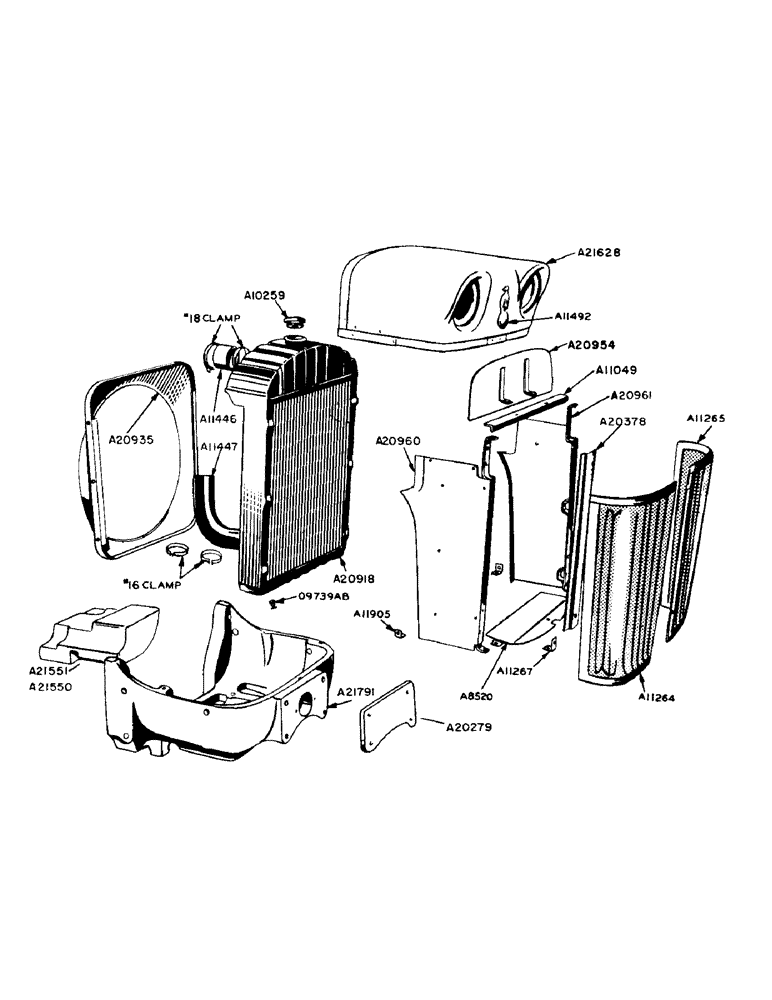

Схема запчастей Case IH 930 - (2-060) - RADIATOR AND GRILLE, SEE PAGE 24 OF SUPPLEMENT (02) - ENGINE

Артикул

Название

Примечание

Количество

A8520

PLATE - lower radiator baffle

1шт.

A10259

CAP

- radiator pressure

1шт.

A11049

BRACE - radiator side member, top

1шт.

A11264

GRILLE - R.H.

1шт.

1/4" x 3/4" N.C. Phillips hd. mach. screw

4шт.

A11265

GRILLE - L.H.

1шт.

1/4" x 3/4" N.C. Phillips hd. mach. screw

4шт.

A11267

BRACE - center piece, lower

1шт.

3/8" x 3/4" N.C. hex. bolt w/lockwasher

1шт.

A11319

X

CLIP - 3/16" push on type, for A11492

2шт.

A11446

RADIATOR HOSE,2.50" ID x 2.13", SAE 20R2

Inlet 2.50" ID x 2.13", SAE 20R2

1шт.

#18 hose clamp

2шт.

A11447

X

HOSE - radiator to water pump (2-1/4" I.D. x 2-5/8" O.D.)

1шт.

#16 hose clamp

2шт.

A11492

X

MEDALLION - grille cap

1шт.

A11737

WASHER - radiator side member

2шт.

A11905

CLIP - radiator side member rear support

2шт.

A20279

COVER - radiator bracket, front

1шт.

3/8" x 1" N.C. hex. bolt w/lockwasher

2шт.

A20378

BRACE

CENTER PIECE - grille

1шт.

1/4" N.C. hex. nut

1шт.

1/4" - 20 Tinnerman speed grip nut #C7998-1420 #27 finish

4шт.

1/4" x 3/4" truss hd. mach. screw, zinc plated, w/lockwasher

3шт.

A20918

RADIATOR

1шт.

A20925

SHROUD - radiator

1шт.

1/4" - 20 Tinnerman speed grip nut #C7998-1420 #3B finish

6шт.

A20954

PLATE - radiator upper baffle

1шт.

1/4" x 1/2" N.F. rhd. mach. screw w/int.-ext. lockwasher

2шт.

1/4" x 3/4" rhd. mach. screw w/hex. nut and ext.-int. lockwasher

2шт.

A20960

MEMBER - radiator side, R.H.

1шт.

5/16" x 5/8" N.F. hex. bolt w/lockwasher

1шт.

5/16" x 1-1/2" N.F. hex. bolt w/lockwasher

2шт.

3/8" x 7/8" N.C. hex. bolt w/lockwasher

2шт.

1/4" - 20 Tinnerman speed grip nut #C7998-1420 #27 finish

2шт.

A20961

MEMBER - radiator side, L.H.

1шт.

5/16" x 5/8" N.F. hex. bolt w/lockwasher

1шт.

5/16" x 1-1/2" N.F. hex. bolt w/lockwasher

2шт.

3/8" x 7/8" N.C. hex. bolt w/lockwasher

2шт.

1/4" - 20 Tinnerman speed grip nut #C7998-1420 #27 finish

2шт.

A21546

WASHER - radiator bracket weight hold-down

2шт.

A21550

WEIGHT - radiator bracket, R.H.

1шт.

1/2" - 13 x 3/4" N.C. hex. bolt w/lockwasher

1шт.

A21551

WEIGHT - radiator bracket, L.H.

1шт.

1/2" - 13 x 1-3/4" N.C. hex. bolt w/lockwasher

1шт.

A21628

CAP

- radiator grille

1шт.

1/4" x 5/8" N.C. Phillips hd. mach. screw, zinc plated

4шт.

1/4" - 20 Tinnerman speed grip nut #C7998-1420 #3B finish

5шт.

A21791

BRACKET - radiator and front axle

1шт.

3/4" x 2" N.C. hex. bolt w/lockwasher

4шт.

O9739AB

X

VALVE - radiator drain

1шт.

Выбрано товаров: 50
