Запчасти Case IH 930 (2-039A) - DISTRIBUTOR PARTS, A24505 PRESTO-LITE DISTRIBUTOR PARTS (02) - ENGINE

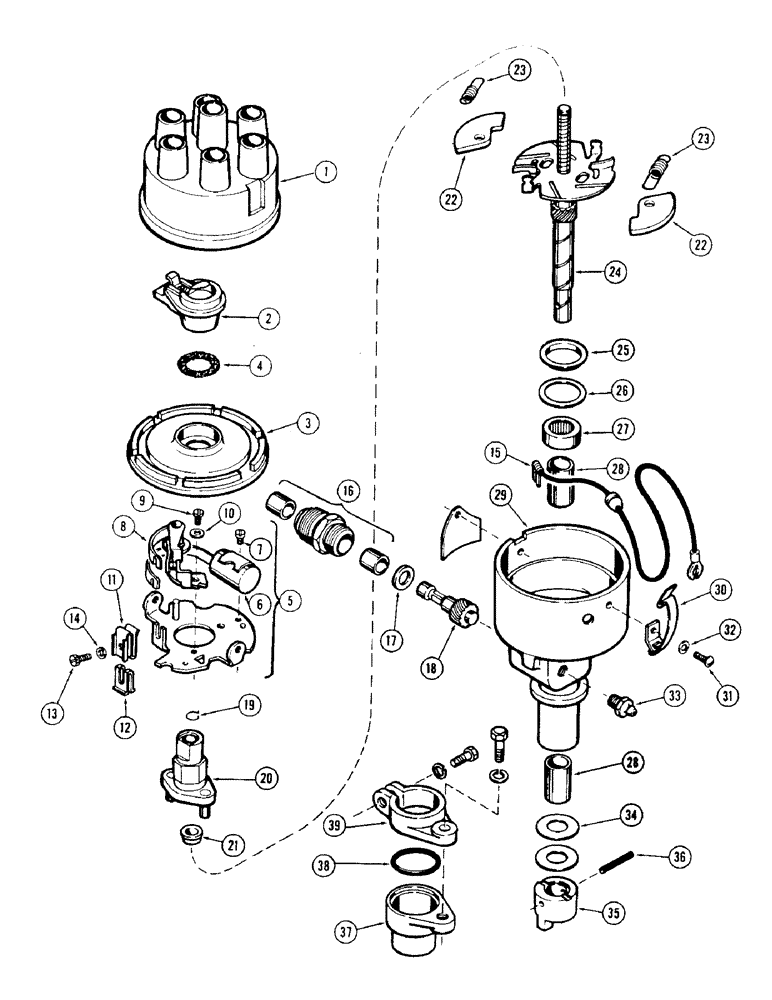

Схема запчастей Case IH 930 - (2-039A) - DISTRIBUTOR PARTS, A24505 PRESTO-LITE DISTRIBUTOR PARTS (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A24565

CAP

ASSY

1шт.

2

A24566

ROTOR

1шт.

3

A24763

PLATE

- seal, Includes: Ref. 4

1шт.

4

A24764

WASHER

- felt

1шт.

5

A24769

X

PLATE ASSY - breaker, Includes: Ref. 6 - 15

1шт.

6

A8370

PACKAGE

CONDENSER

1шт.

7

169-56

SCREW - condenser (#6-32 x 3/16")

1шт.

8

A24558

POINT

CONTACT SET

1шт.

9

A24776

SCREW,Locking, #8 - 32 x 3/16"

- contact set (#8-32 x 3/16")

1шт.

10

195-509

WASHER,3/16"

- #8 plain

1шт.

11

A24774

CLIP

- retaining

1шт.

12

A24773

INSULATOR

INSULATION - clip screw

1шт.

13

A24775

SCREW,0.138"-32 x 1/32"

- spring clip

1шт.

14

195-506

WASHER,#6

- plain #6

1шт.

15

A24772

HARNESS

LEAD - wire

1шт.

16

A24781

HOUSING - tach. drive (incl. bushings)

1шт.

17

A24755

WASHER - thrust, tach. drive

1шт.

18

A24761

SHAFT

AND GEAR - tach. drive

1шт.

19

A24756

SNAP RING - cam retaining

1шт.

20

A24831

CAM AND STOP PLATE

1шт.

21

A24757

SPACER - cam

1шт.

22

A24754

WEIGHT - governor

2шт.

23

A24835

SET

SPRING - governor weight (set of 2)

1шт.

24

A24833

DRIVE SHAFT

SHAFT - drive

1шт.

25

A24759

WASHER - upper, drive shaft

1шт.

26

A24758

WASHER - lower, drive shaft

1шт.

27

A24767

BEARING

- needle

1шт.

28

A24766

BUSHING

BEARING - bronze

2шт.

29

NSS

NOT SOLD SEPARAT

BASE

1шт.

30

A24760

CLAMP

- cap

2шт.

31

A24779

SCREW - clamp (#8-32 x 5/16")

2шт.

32

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

33

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - 1/4" taper

1шт.

34

A24834

WASHER - thrust

2шт.

35

A24830

COUPLING - drive

1шт.

36

138-58

LOCK PIN,1/8" x 13/16", Slotted

Pin, , coupling 1/8" x 13/16", Slotted

1шт.

37

A7621

INSERT - distributor support

1шт.

38

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - support

1шт.

39

A7622

CLAMP - distributor

1шт.

Выбрано товаров: 39
