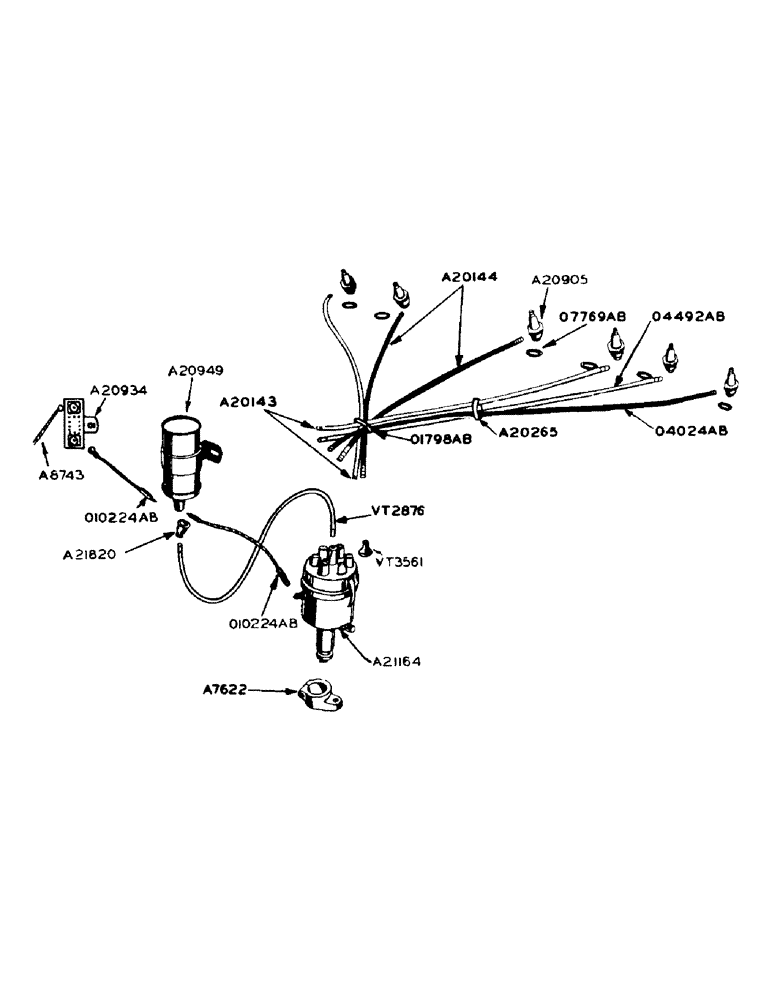

Запчасти Case IH 930 (2-037) - LP-GAS ENGINE, DISTRIBUTOR IGNITION, SEE PAGE 13 OF SUPPLEMENT (02) - ENGINE

A7622

CLAMP - distributor mounting

1шт.

5/16" x 1" N.C. hex. bolt w/lockwasher

1шт.

5/16" x 1-1/4" hex. bolt w/lockwasher

1шт.

A7625

COVER - magneto bracket opening

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher

3шт.

A7922

CLIP

- for distributor wire on cylinder block

1шт.

A20143

ELECTRICAL WIRE

WIRE - spark plug, #3 and #6 cylinders (15")

2шт.

A20144

ELECTRICAL WIRE

WIRE - spark plug, #4 and #5 cylinders (11")

2шт.

A20265

RING - spark plug wire (3 wire)

1шт.

A20905

SPARK PLUG

PLUG - spark, 18MM (Champion #D9) (includes 07769AB gasket)

6шт.

A20934

X

RESISTOR (Wico no. X30061B)

1шт.

5/16" x 1/2" N.C. hex. bolt w/lockwasher

1шт.

A20949

X

COIL - ignition (Wico no. X30081B)

1шт.

5/16" x 5/8" N.C. rhd. mach. screw w/shakeproof ext.-int. lockwasher #4018-24

2шт.

A21164

DISTRIBUTOR (Wico no. X30164)

1шт.

A21820

X

NIPPLE - ignition coil wire

1шт.

O1798AB

RING - spark plug wire (6 wires)

1шт.

O4024AB

X

WIRE - spark plug, #1 cylinder (25-1/2")

1шт.

O4492AB

X

WIRE - spark plug, #6 cylinder (21-1/2")

1шт.

O5051AB

WIRE - starter, Serial Range: solenoid-resistor

1шт.

O7769AB

X

GASKET - spark plug

6шт.

O10224AB

WIRE - resistor to coil and, Serial Range: coil-distributor

2шт.

VT2876

X

WIRE - center coil terminal to center distributor cap terminal

1шт.

VT3561

X

NIPPLE - distributor to coil and spark plug wires

7шт.
