Запчасти Case IH 930 (2-033) - LP-GAS ENGINE, AIR CLEANER, SEE PAGE 13 OF SUPPLEMENT (02) - ENGINE

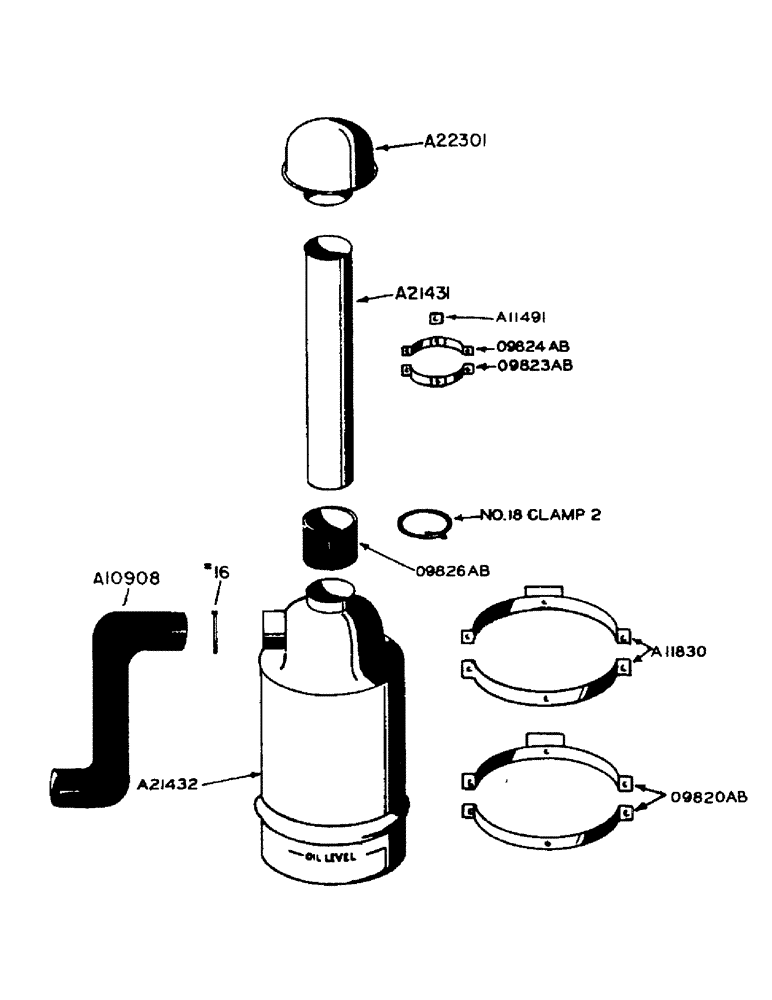

Схема запчастей Case IH 930 - (2-033) - LP-GAS ENGINE, AIR CLEANER, SEE PAGE 13 OF SUPPLEMENT (02) - ENGINE

Артикул

Название

Примечание

Количество

A10908

INTAKE AIR HOSE,2.25" ID x 7.84"

- Carburetor to air cleaner 2.25" ID x 7.84"

1шт.

#16 hose clamp

2шт.

A11491

SPACER - air intake pipe support

3шт.

A11830

SUPPORT - air cleaner

2шт.

3/8" x 3/4" N.C. hex. bolt w/lockwasher

4шт.

A21431

PIPE - air cleaner

1шт.

A21432

CLEANER

AIR CLEANER

1шт.

A22301

PRESCREENER

PRE-SCREENER - air intake

1шт.

O9820AB

STRAP - air cleaner

2шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

O9823AB

STRAP - air intake pipe support

1шт.

1/4" x 3/4" N.C. rhd. mach. screw w/hex. nut and lockwasher

2шт.

O9824AB

SUPPORT - air intake pipe

1шт.

5/16" x 7/8" N.C. carr. bolt w/hex. nut

1шт.

5/16" shakeproof ext.-int. lockwasher #4018-24

1шт.

O9826AB

X

HOSE - air cleaner to air intake pipe

1шт.

#18 hose clamp

2шт.

Выбрано товаров: 17
