Запчасти Case IH 930 (2-032) - LP-GAS ENGINE, INTAKE AND EXHAUST MANIFOLD (02) - ENGINE

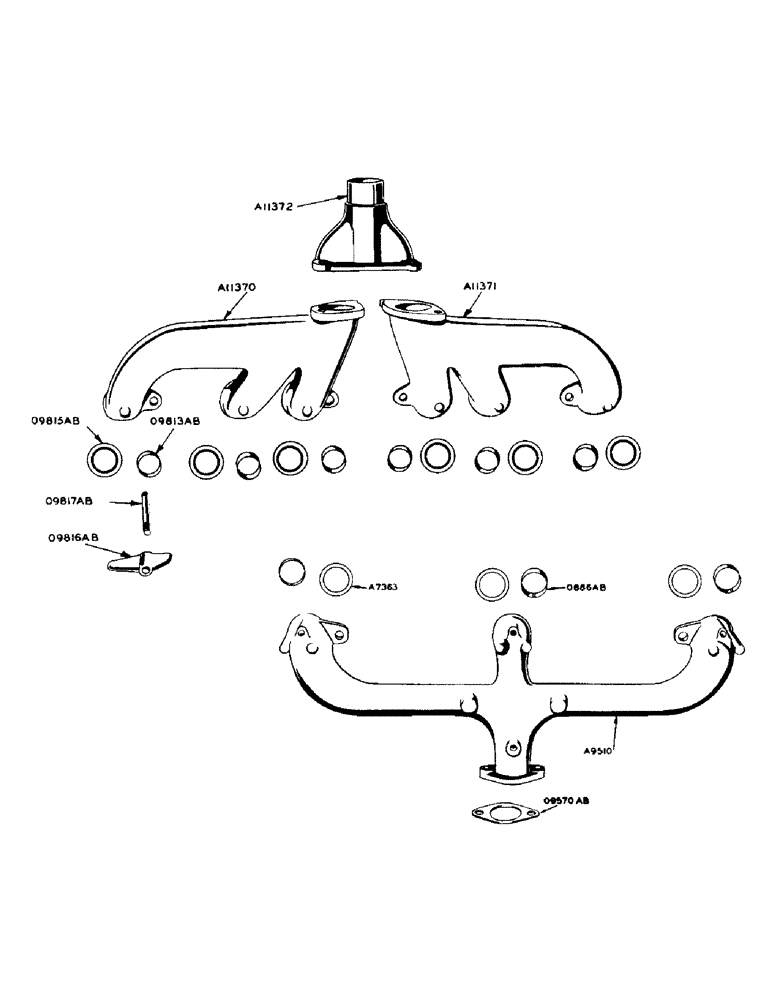

Схема запчастей Case IH 930 - (2-032) - LP-GAS ENGINE, INTAKE AND EXHAUST MANIFOLD (02) - ENGINE

Артикул

Название

Примечание

Количество

A7363

MANIFOLD GASKET

- inlet manifold (see A22347 gasket kit)

3шт.

A9510

MANIFOLD - inlet

1шт.

3/8" x 1-1/2" N.F. hex. bolt w/nut and lockwasher

2шт.

1/8" sq. hd. pipe plug

3шт.

A11370

MANIFOLD - exhaust, front

1шт.

A11371

MANIFOLD - exhaust, rear

1шт.

A11372

ELBOW

- exhaust

1шт.

1/2" x 1-1/2" N.F. hex. bolt w/hex. nut

2шт.

1/2" x 1-3/4" N.F. hex. bolt w/hex. nut

1шт.

O886AB

X

FERRULE - inlet manifold

3шт.

O9570AB

X

GASKET -, Serial Range: carburetor-manifold

1шт.

O9753AB

CLAMP - exhaust elbow

1шт.

O9813AB

X

FERRULE - exhaust manifold

6шт.

O9815AB

X

GASKET - exhaust manifold (see A22347 gasket kit)

6шт.

O9816AB

CLAMP - inlet and exhaust mainfold

6шт.

O9817AB

X

STUD - inlet and exhaust manifold

6шт.

7/16" N.F. hex. nut

6шт.

Выбрано товаров: 17
