Запчасти Case IH 930 (2-029) - LP-GAS ENGINE, ROCKER ARMS (02) - ENGINE

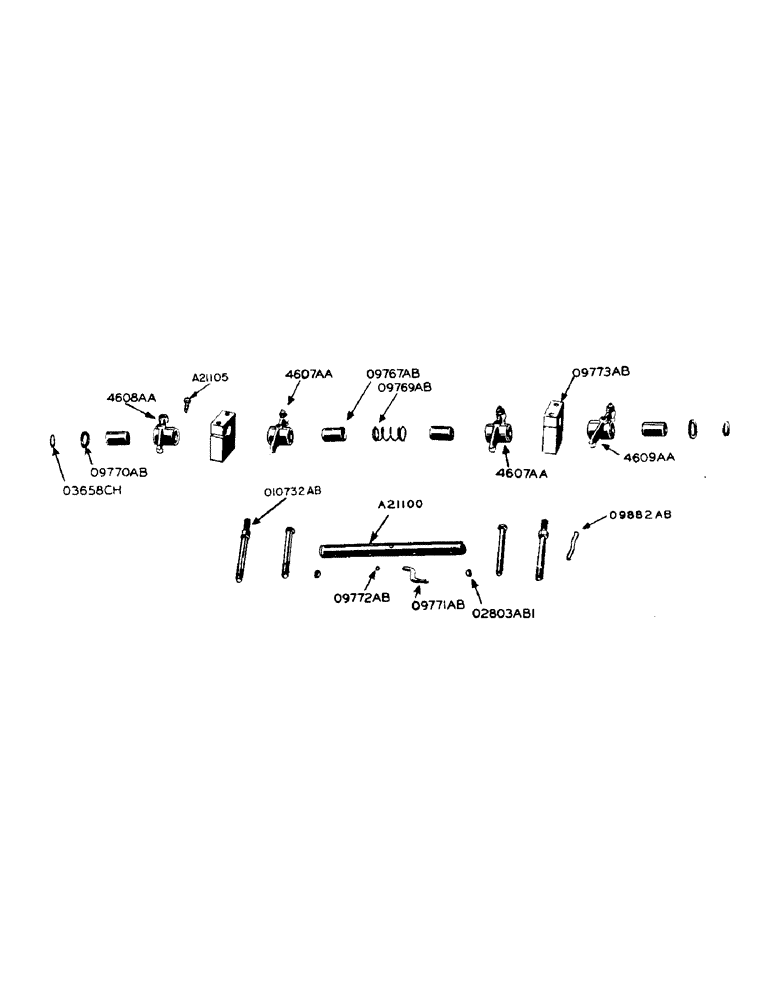

Схема запчастей Case IH 930 - (2-029) - LP-GAS ENGINE, ROCKER ARMS (02) - ENGINE

Артикул

Название

Примечание

Количество

A21100

SHAFT

- valve rocker arm

3шт.

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - valve push rod adjusting

12шт.

3/8" N.F. hex. jam nut

12шт.

4607AA

X

ARM - inlet valve rocker, with bushing

6шт.

4608AA

ARM - exhaust valve rocker, with bushing, for no. 1, 3 and 5 cylinder

3шт.

4609AA

ARM - exhaust valve rocker, with bushing, for no. 2, 4 and 6 cylinder

3шт.

O2803AB1

PLUG - valve rocker arm shaft

6шт.

O9767AB

X

BUSHING - rocker arm

12шт.

O9769AB

X

SPRING - valve rocker arm shaft

3шт.

O9770AB

X

WASHER - valve rocker arm shaft

18шт.

O9771AB

X

TUBE - oil, valve rocker arm shaft

3шт.

O9772AB

X

"O" RING - valve rocker arm shaft oil tube

3шт.

O9773AB

BRACKET - valve rocker arm shaft

6шт.

7/16" x 3-3/4" N.C. hex. bolt w/lockwasher

6шт.

O9882AB

X

WICK - exhaust valve rocker arm

6шт.

O10732AB

STUD - valve rocker arm shaft bracket

6шт.

7/16" N.F. hex. nut w/lockwasher

6шт.

O3658CH

X

SNAP RING - valve rocker arm shaft

6шт.

Выбрано товаров: 18
