Запчасти Case IH 930 (2-028) - LP-GAS ENGINE, VALVES, PUSH RODS AND CAMSHAFT, SEE PAGE 10 OF SUPPLEMENT (02) - ENGINE

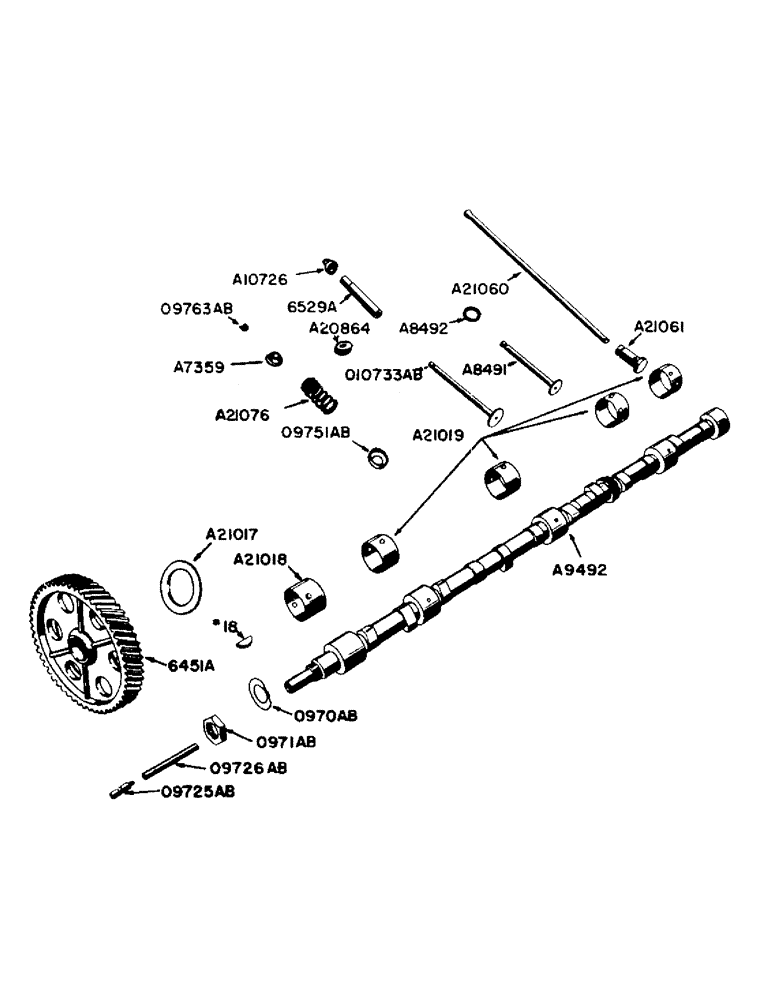

Схема запчастей Case IH 930 - (2-028) - LP-GAS ENGINE, VALVES, PUSH RODS AND CAMSHAFT, SEE PAGE 10 OF SUPPLEMENT (02) - ENGINE

Артикул

Название

Примечание

Количество

A7359

RETAINER - inlet valve spring (use A21656 or A21657)

6шт.

A8491

VALVE - exhaust (use A21711)

6шт.

A8492

INSERT - exhaust valve seat (use A21680)

6шт.

A9492

CAMSHAFT

1шт.

#18 Woodruff key

1шт.

A10726

SEAL

SHIELD - oil, intake valve stem

6шт.

A20864

ROTOCAP - exhaust valve (use A21688)

6шт.

A21017

WASHER

- camshaft thrust

1шт.

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- camshaft first (use A21662)

1шт.

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- camshaft second, third, fourth and fifth (use A21662)

4шт.

A21060

ROD

- push

12шт.

A21061

LIFTER - push rod (use A21654)

12шт.

A21076

SPRING

- inlet and exhaust valve (use A21694)

12шт.

A21654

KIT

LIFTERS - push rod, set of (4) A21061

3шт.

A21656

RETAINER

LOCKS - valve spring, set of (4) 09763AB

6шт.

A21657

LOCK

RETAINERS AND LOCKS - set of (2) A7359 and (4) 09763AB

3шт.

A21662

X

BUSHINGS - camshaft - set of (1) A21018 and (4) A21019

1шт.

A21673

GUIDE

S - valve, set of (2) 6529A

6шт.

A21680

KIT

INSERTS - exhaust valve seat, set of (2) A8492

3шт.

A21688

CAP

ROTOCAPS - exhaust valve, set of (4) A20864

1шт.

A21694

SPRING

S - valve, set of (4) A21076

3шт.

A21705

VALVE

S - inlet, set of (4) 010733AB

1шт.

A21711

KIT

VALVES - exhaust, set of (4) A8491

1шт.

6451A

X

GEAR - camshaft

1шт.

6529A

GUIDE - inlet and exhaust valve

12шт.

O970AB

X

LOCKWASHER - camshaft nut

1шт.

O971AB

X

NUT - camshaft (1-1/8" N.C. hex.)

1шт.

O9725AB

X

PLUNGER - camshaft thrust

1шт.

O9726AB

X

SPRING - camshaft thrust plunger

1шт.

O9751AB

X

SEAT - inlet and exhaust valve spring

12шт.

O9763AB

LOCK - valve spring retainer (2 per valve) (use A21656 and A21657)

24шт.

O10733AB

VALVE - inlet (use A21705)

6шт.

Выбрано товаров: 32
