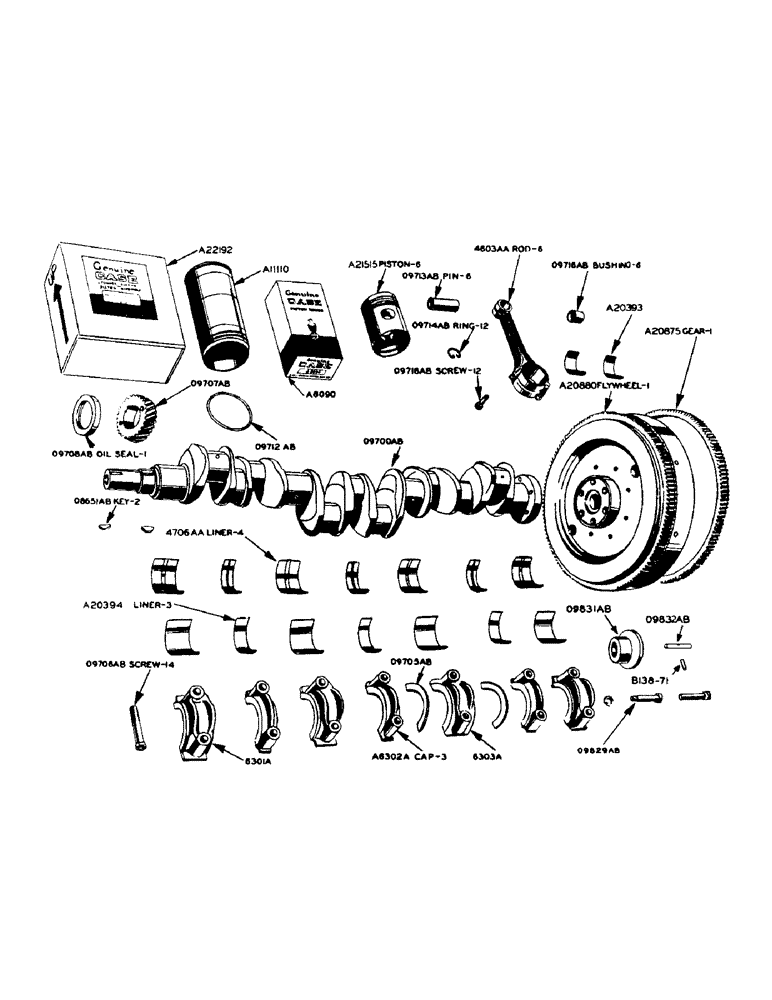

Запчасти Case IH 930 (2-026) - LP-GAS ENGINE, PISTONS, CONNECTING RODS & CRANKSHAFT, PISTON & CONNECTING, SEE PAGE 10 OF SUPPLEMENT (02) - ENGINE

A7526

OIL SEAL

RING - piston, top

6шт.

A7527

OIL SEAL

RING - piston, second and third

12шт.

A8090

RING

S - piston, set of (24) Perfet Circle 2-in-1 chrome

1шт.

A8656

RING

- piston, oil

6шт.

A11110

X

SLEEVE - cylinder

6шт.

A20393

LINING

LINERS - connecting rod bearing, top and bottom half (std. size)

6шт.

A21515

X

PISTON (see A22192)

6шт.

A21721

BUSHING

S - piston pin, set of (2) 09716AB

3шт.

A21723

PIN

PISTON PINS - set of (2) 09713AB and (4) 09714AB retainers

3шт.

A22192

SET OF 2 CYLINDER SLEEVES, pistons, rings and piston pins

3шт.

4603AA

X

ROD - connecting, with cap, bushing and capscrew

6шт.

O9712AB

X

"O" RING - cylinder sleeve

12шт.

O9713AB

PIN - piston (use A21723)

1шт.

O9714AB

X

RING - piston pin retainer (use A21723)

1шт.

O9716AB

BUSHING - piston pin (use A21721)

1шт.

O9718AB

X

CAPSCREW - connecting rod

12шт.

A7182

KIT

LINERS - crankshaft bearing (wide-upper and lower) (.002" undersize), see Figure 10 of supplement

4шт.

A7188

BEARING LINER

LINERS - crankshaft bearing (wide-upper and lower) (.010" undersize), see Figure 10 of supplement

4шт.

A7194

KIT

LINERS - crankshaft bearing (wide-upper and lower) (.020" undersize), see Figure 10 of supplement

4шт.

A7200

KIT

LINERS - crankshaft bearing (wide-upper and lower) (.030" undersize), see Figure 10 of supplement

4шт.

A7204

WASHER

- crankshaft thrust (.006" oversize) (see 09705AB), see Figure 10 of supplement

2шт.

A9871

FLYWHEEL - (use A20880), crankshaft, see Figure 10 of supplement

1шт.

A20394

LINING

LINERS - crankshaft bearing (narrow-upper and lower) (std. size), see Figure 10 of supplement

3шт.

A20579

LINING

LINERS - crankshaft bearing (narrow-upper and lower) (.002" undersize), see Figure 10 of supplement

3шт.

A20582

LINING

LINERS - crankshaft bearing (narrow-upper and lower) (.010" undersize), see Figure 10 of supplement

3шт.

A20585

KIT

LINERS - crankshaft bearing (narrow-upper and lower) (.020" undersize, see Figure 10 of supplement

3шт.

A20588

KIT

LINERS - crankshaft bearing (narrow-upper and lower) (.030" undersize), see Figure 10 of supplement

3шт.

A20875

GEAR, RING

GEAR - flywheel ring, crankshaft, see Figure 10 of supplement

1шт.

A20880

FLYWHEEL - w/ring gear, crankshaft, see Figure 10 of supplement

1шт.

B138-71

ROLL PIN - 5/32" x 5/8", for 09832AB wiggle pin, crankshaft, see Figure 10 of supplement

1шт.

6301A

CAP - crankshaft bearing, wide, see Figure 10 of supplement

3шт.

A6302A

X

CAP - crankshaft bearing, narrow, see Figure 10 of supplement

3шт.

6303A

CAP - crankshaft thrust bearing, see Figure 10 of supplement

1шт.

4706AA

X

LINERS - crankshaft bearing (wide-upper and lower) (std. size), see Figure 10 of supplement

4шт.

O8651AB

X

KEY - for crankshaft gear and lower drive pulley, see Figure 10 of supplement

2шт.

O9700AB

CRANKSHAFT, see Figure 10 of supplement

1шт.

5/8" x 3" N.F. hex. bolt w/lockwasher, crankshaft, see Figure 10 of supplement

4шт.

O9705AB

X

WASHER - crankshaft thrust (std. size) (see A7204), see Figure 10 of supplement

2шт.

O9706AB

SCREW - crankshaft bearing cap, see Figure 10 of supplement

14шт.

O9707AB

X

GEAR - crankshaft, see Figure 10 of supplement

1шт.

O9708AB

X

OIL SEAL - crankshaft, front, see Figure 10 of supplement

1шт.

O9829AB

BOLT - flywheel dowel, crankshaft, see Figure 10 of supplement

2шт.

5/8" std. lockwasher, crankshaft, see Figure 10 of supplement

2шт.

O9831AB

X

PLUG - flywheel oil control, crankshaft, see Figurge 10 of supplement

1шт.

O9832AB

PIN - wiggle, flywheel oil control plug, crankshaft, see Figure 10 of supplement

1шт.

A22347

KIT

GASKET KIT, valve grind, includes the following:

1шт.

A7363

MANIFOLD GASKET

intake manifold, valve grind kit

3шт.

A7669

RING

rubber, cylinder head gasket, valve grind kit

6шт.

A11421

GASKET

thermostat housing, valve grind kit

1шт.

A11423

SEAL

"O" RING, thermostat seal, valve grind gasket kit

1шт.

A21517

CYLINDER HEAD GASKET

cylinder head, valve grind kit

3шт.

O8569AB

X

"O" RING, cylinder head oil passage, valve grind gasket kit

3шт.

O9570AB

X

GASKET, carburetor to manifold, valve grind kit

1шт.

O9772AB

X

"O" RING, valve rocker arm shaft tube, valve grind gasket kit

3шт.

O9804AB1

X

GASKET, water manifold, valve grind kit

6шт.

O9815AB

X

GASKET, exhaust manifold, valve grind kit

6шт.

O9959AB

X

GASKET, cylinder head cover, valve grind kit

3шт.
