Запчасти Case IH 930 (2-024[2]) - LP-GAS ENGINE, OIL PAN (02) - ENGINE

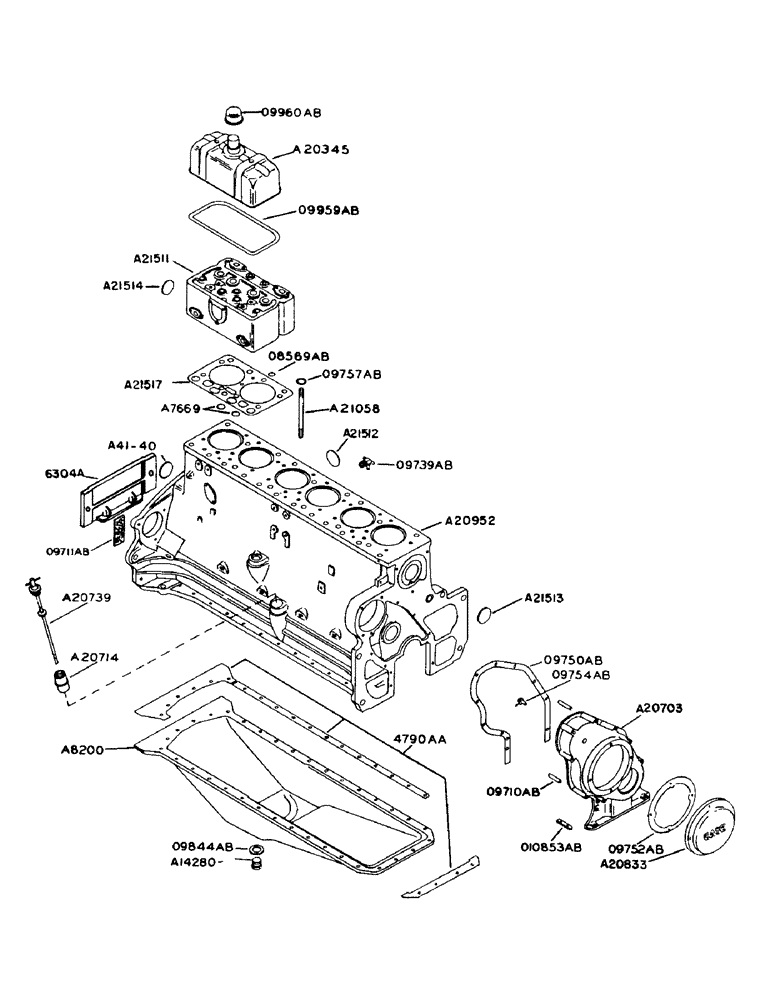

Схема запчастей Case IH 930 - (2-024[2]) - LP-GAS ENGINE, OIL PAN (02) - ENGINE

Артикул

Название

Примечание

Количество

A7669

RING

RUBBER RING - used with A21517 gasket

6шт.

A20345

COVER - cylinder head

3шт.

A21058

BOLT

- cylinder head

27шт.

9/16" N.F. hex. nut

27шт.

A21356

HEAD - cylinder (use A21511)

1шт.

A21511

HEAD

- cylinder, with valve guides and inserts

3шт.

A21514

X

PLUG - cup, 1-5/8", cylinder head

6шт.

A21517

CYLINDER HEAD GASKET

- cylinder head (see A22347 gasket kit)

3шт.

O8569AB

X

"O" RING - in cylinder head gasket for oil passage

3шт.

O9757AB

X

WASHER - cylinder head stud

27шт.

O9959AB

X

GASKET - cylinder head cover (see A22347 gasket kit)

3шт.

O9960AB

X

BREATHER - cylinder head cover

3шт.

A41-40

WELCH PLUG - 2-1/2" for camshaft hole in block

1шт.

A222-40

ELBOW - #69FL, 90 degree (1/8" tube x 1/8" P.T.) in block for oil gauge

1шт.

A20714

X

SOCKET - lube oil level gauge

1шт.

A20739

GAUGE

- lube oil level, bayonet

1шт.

A20775

BLOCK - cylinder (use A20952)

1шт.

A20952

X

BLOCK - cylinder, w/bearing caps, camshaft bushings and plug

1шт.

1/8" slotted head pipe plug

5шт.

3/8" socket head pipe plug

5шт.

1" socket head pipe plug

1шт.

A21512

X

PLUG - cup, 1-3/8", for cylinder block

1шт.

A21513

X

PLUG - cup, 1-3/4", for cylinder block

1шт.

4641AA

CONDUIT - generator and headlamp wires and temp. gauge tube

1шт.

5/16" x 1/2" N.C. hex. bolt w/lockwasher

2шт.

O9739AB

X

VALVE - water drain for block

1шт.

VT3399

WELCH PLUG - 1", for block

1шт.

A8200

PAN - oil

1шт.

3/8" x 7/8" N.C. hex. bolt w/lockwasher

34шт.

A14280

PLUG

- drain, oil pan

1шт.

6304A

BAFFLE - engine oil pan, rear

1шт.

3/8" x 7/8" N.C. bolt w/lockwasher

2шт.

4790AA

X

GASKET KIT - oil pan

1шт.

O9711AB

X

GASKET - for 6304A baffle

1шт.

O9844AB

X

GASKET - oil pan drain plug

1шт.

A20702

COVER - timing gear (use A20703)

1шт.

A20703

COVER - timing gear, with 1 - 09708AB oil seal, 2 - 09710AB dowel pins and 1 - 09754AB thrust button

1шт.

3/8" x 1" N.C. hex. bolt w/lockwasher

2шт.

3/8" x 1-1/2" N.C. hex. bolt w/lockwasher

8шт.

A20819

CAP - timing gear cover (use A20833)

1шт.

A20833

CAP - timing gear cover with 09754AB thrust button

1шт.

3/8" x 3/4" N.C. hex. bolt w/lockwasher

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher

3шт.

O9710AB

PIN - dowel, timing gear cover

2шт.

O9750AB

X

GASKET - timing gear cover

1шт.

O9752AB

X

GASKET - timing gear cover cap

1шт.

O9754AB

BUTTON - thrust, timing gear cover and cover cap

2шт.

O10853AB

POINTER - timing

1шт.

1/4" x 1/2" N.C. hex. bolt

2шт.

1/4" - #4014-20 shakeproof ext.-int. tooth lockwasher

2шт.

Выбрано товаров: 50
