Запчасти Case IH 930 (2-014) - DIESEL ENGINE, AIR CLEANER, SEE PAGE 4 OF SUPPLEMENT (02) - ENGINE

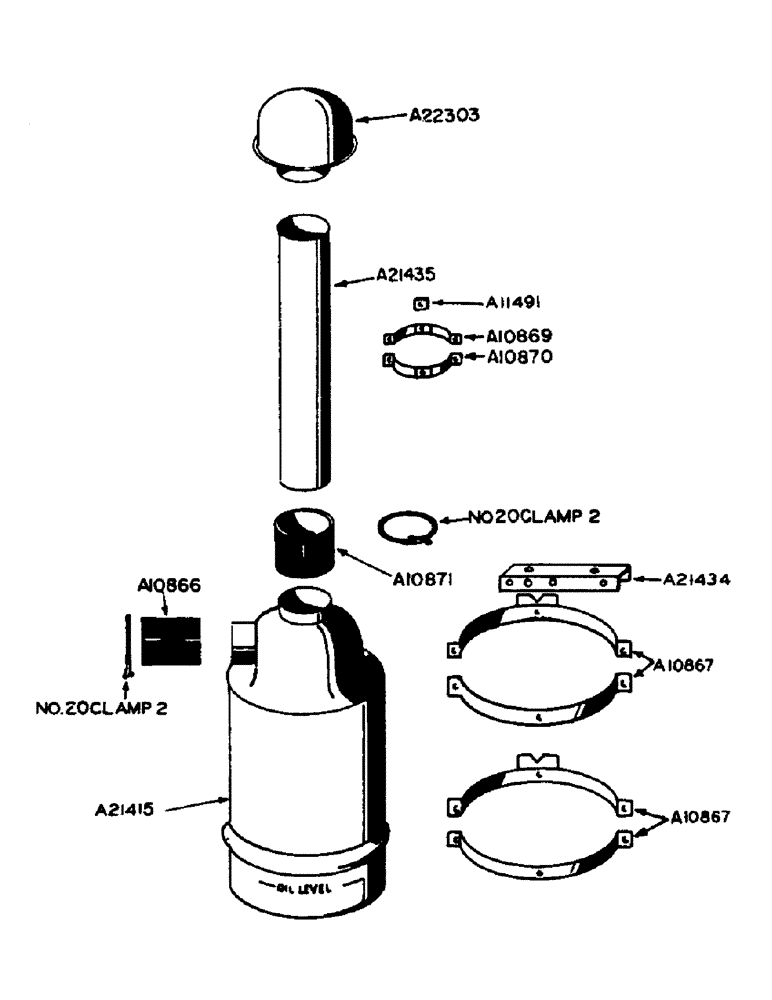

Схема запчастей Case IH 930 - (2-014) - DIESEL ENGINE, AIR CLEANER, SEE PAGE 4 OF SUPPLEMENT (02) - ENGINE

Артикул

Название

Примечание

Количество

A10866

HOSE - air cleaner

1шт.

#20 hose clamp

2шт.

A10867

SUPPORT - air cleaner

2шт.

3/8" x 3/4" N.F. hex. bolt w/nut and lockwasher

4шт.

A10869

SUPPORT - air intake stack

1шт.

5/16" x 1" N.C. carriage bolt w/hex. nut

1шт.

5/16" shakeproof ext.-int. lockwasher #4018-24

1шт.

A10870

STRAP - air intake stack

1шт.

1/4" x 3/4" N.C. rhd. mach. screw w/nut and lockwasher

2шт.

A10871

HOSE - air intake pipe

1шт.

#20 hose clamp

2шт.

A11491

SPACER - air intake pipe clamp

1шт.

A21415

AIR CLEANER

1шт.

A21434

BRACKET - air cleaner support

2шт.

3/8" x 1" N.C. hex. bolt w/lockwasher

4шт.

A21435

EXTENSION - air intake stack

1шт.

A22303

PRE-SCREENER - air intake

1шт.

Выбрано товаров: 17
