Запчасти Case IH 930 (2-013) - DIESEL ENGINE, INTAKE AND EXHAUST MANIFOLD, SEE PAGE 4 OF SUPPLEMENT (02) - ENGINE

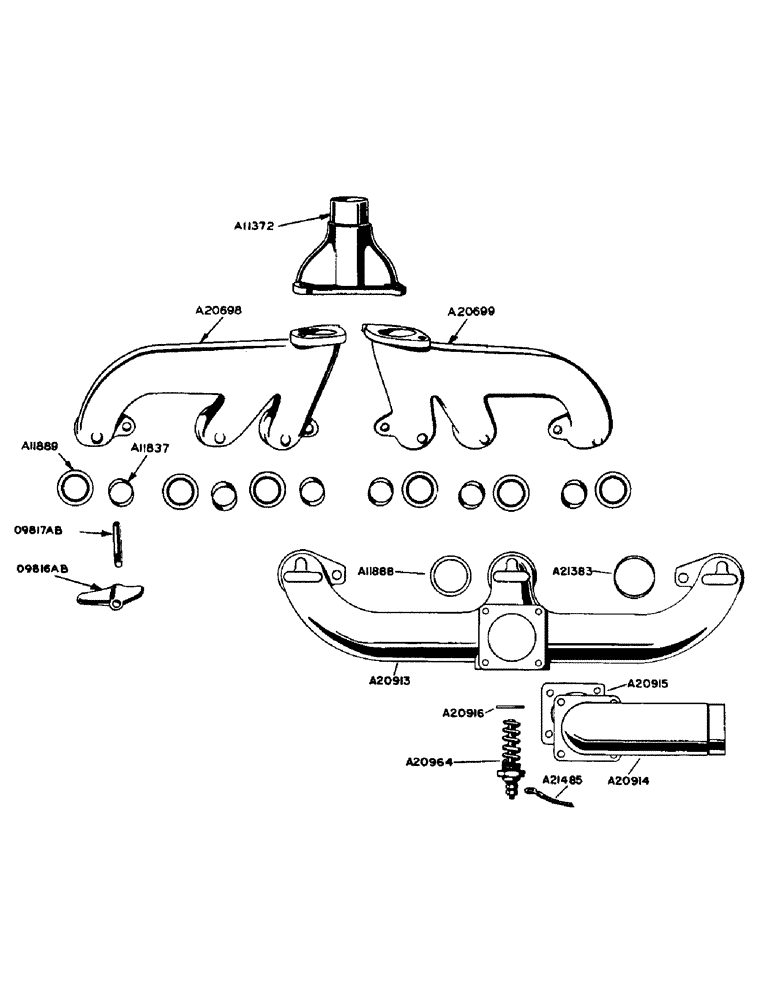

Схема запчастей Case IH 930 - (2-013) - DIESEL ENGINE, INTAKE AND EXHAUST MANIFOLD, SEE PAGE 4 OF SUPPLEMENT (02) - ENGINE

Артикул

Название

Примечание

Количество

A11372

ELBOW

- exhaust

1шт.

1/2" x 1-1/2" N.F. hex. bolt w/hex. nut

2шт.

A11837

FERRULE

- exhaust manifold

6шт.

A11888

MANIFOLD GASKET

- inlet manifold (see A22346 gasket kit)

3шт.

A11889

GASKET

- exhaust manifold (see A22346 gasket kit)

6шт.

A20698

X

MANIFOLD - exhaust, front

1шт.

A20699

X

MANIFOLD - exhaust, rear

1шт.

A20913

MANIFOLD - inlet

1шт.

A20914

ELB0W - inlet manifold

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher

4шт.

A20915

GASKET

- inlet manifold elbow

1шт.

A20916

MANIFOLD GASKET

GASKET - manifold heater plug

1шт.

A20964

HEATER ASSY.

HEATER - manifold

1шт.

A21383

CAP

FERRULE - inlet manifold

3шт.

A21481

SOLENOID

- manifold heater

1шт.

A21485

CABLE

- heater, Serial Range: solenoid-heater

1шт.

A21753

CAP

NIPPLE - rubber (2 used on heater solenoid, 1 used on heater)

3шт.

O9753AB

CLAMP - exhaust elbow

1шт.

1/2" x 1-3/4" N.F. hex. bolt w/nut

1шт.

O9816AB

CLAMP - inlet and exhaust manifold

6шт.

O9817AB

X

STUD - inlet and exhaust manifold

6шт.

7/16" N.F. hex. nut

6шт.

Выбрано товаров: 22
