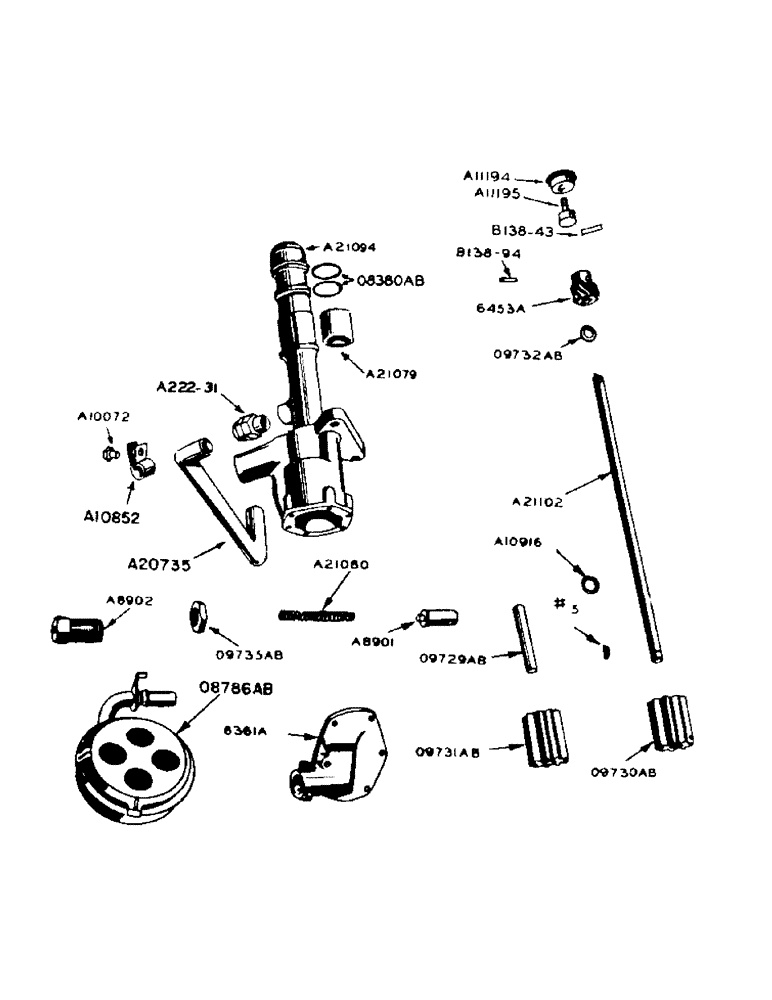

Запчасти Case IH 930 (2-011) - DIESEL ENGINE, OIL PUMP AND TACHOMETER DRIVE (02) - ENGINE

A222-31

CONNECTOR - 5/8" tube x 1/2" P.T. #68FL for A20735 tube

2шт.

A8901

X

PLUNGER - oil pump relief

1шт.

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - oil pump relief adjusting

1шт.

A10072

BOLT,3/8" - 16 x 3/4"

- tube clamp

1шт.

3/8" shakeproof int. tooth lockwasher

1шт.

A10852

CLIP - tube (A20735)

1шт.

A10916

RING, SNAP

SNAP RING - oil pump drive shaft

1шт.

A20722

PUMP - oil, less screen

1шт.

A20735

TUBE

- oil, Serial Range: pump-filter

1шт.

A21078

BODY - oil pump (use A21094)

1шт.

A21079

SLEEVE

- oil pump body

1шт.

A21080

X

SPRING - oil pump relief plunger

1шт.

A21094

BODY

- oil pump w/sleeve

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher

2шт.

A21102

SHAFT

- oil pump drive

1шт.

B138-94

ROLL PIN - 3/16" x 7/8", oil pump drive gear

1шт.

6361A

COVER - oil pump body

1шт.

1/4" x 3/4" N.C. rhd. mach. screw w/lockwasher

5шт.

1/4" x 1-1/2" N.C. rhd. mach screw w/lockwasher

1шт.

6453A

X

GEAR - oil pump drive

1шт.

O8380AB

X

"O" RING - on A21094

2шт.

O8786AB

X

SCREEN - oil pump, float-o-type

1шт.

3/32" x 1-1/2" cotter pin

1шт.

O9729AB

SHAFT - oil pump stub

1шт.

O9730AB

X

GEAR - oil pump, with keyway

1шт.

#5 Woodruff key

1шт.

O9731AB

X

GEAR - oil pump, without keyway

1шт.

O9732AB

X

WASHER - oil pump drive gear thrust

1шт.

O9735AB

NUT - oil pump relief adjusting screw

1шт.

A11194

X

ADAPTER - tachometer drive

1шт.

A11195

PLUG

- tachometer drive adapter

1шт.

B138-43

ROLL PIN - 3/32" x 7/8", used on A11194, tachometer drive

1шт.
