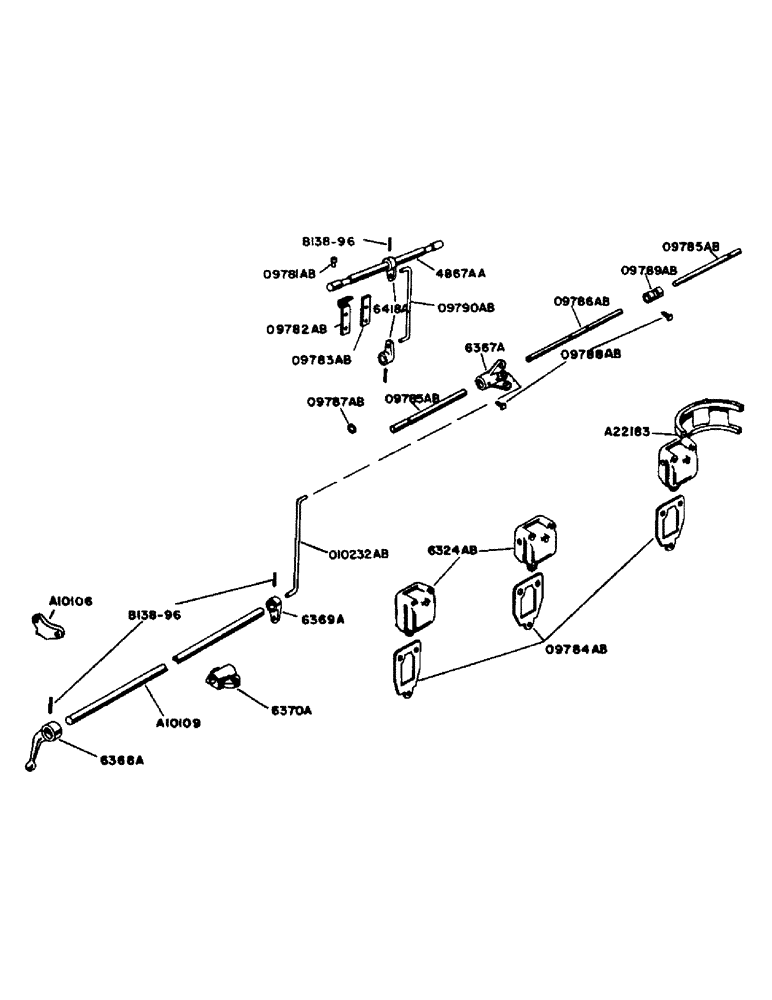

Запчасти Case IH 930 (2-010) - DIESEL ENGINE, DECOMPRESSOR, SEE PAGE 4 OF SUPPLEMENT (02) - ENGINE

A10106

SUPPORT - decompressor hand lever

1шт.

1/2" x 1-3/4" N.C. hex. hd. cap screw w/lockwasher

1шт.

A10109

SHAFT - decompressor hand lever

1шт.

1/8" x 1" cotter pin

2шт.

A12769

X

WELCH PLUG - 3/4" for 6324A housings

2шт.

A22183

BRACKET - decompressor control housing and final stage filter

1шт.

5/16" x 1" N.C. hex. bolt w/lockwasher

1шт.

5/16" x 1-1/2" N.C. hex. bolt w/lockwasher

2шт.

B138-96

ROLL PIN - 3/16" x 1" for 6368A, 6369A and 6418A levers

8шт.

6324A

HOUSING - decompressor control lever

2шт.

5/16" x 1" N.C. hex. bolt w/lockwasher

2шт.

5/16" x 1-3/4" N.C. hex. bolt w/lockwasher

4шт.

1/8" slotted hd. pipe plug

3шт.

6367A

COUPLING - stop, decompressor control shaft

1шт.

1/4" x 1" N.C. hex. bolt w/hex nut

2шт.

6368A

LEVER - hand, decompressor control

1шт.

6369A

LEVER - decompressor hand lever shaft

1шт.

6370A

SUPPORT - front, decompressor hand lever shaft

1шт.

6418A

LEVER - decompressor control

6шт.

4867AA

SHAFT - decompressor, with lever and trip pin

3шт.

O9781AB

PIN - decompressor trip

6шт.

O9782AB

BRACKET - top, decompressor shaft

6шт.

O9783AB

BRACKET - bottom, decompressor shaft

6шт.

O9784AB

GASKET - decompressor control lever housing

3шт.

O9785AB

SHAFT - decompressor control, short

2шт.

O9786AB

SHAFT - decompressor control, long

1шт.

O9787AB

X

"O" RING - decompressor control shaft

4шт.

O9788AB

X

SCREW - set, decompressor control shaft

4шт.

1/4" N.C. hex nut

2шт.

O9789AB

COUPLING - decompressor control shaft

1шт.

O9790AB

LINK - decompressor control, upper

3шт.

1/16" x 5/8" cotter pin

6шт.

O10232AB

LINK - decompressor control lever, lower

1шт.

1/8" x 3/4" cotter pin

2шт.
