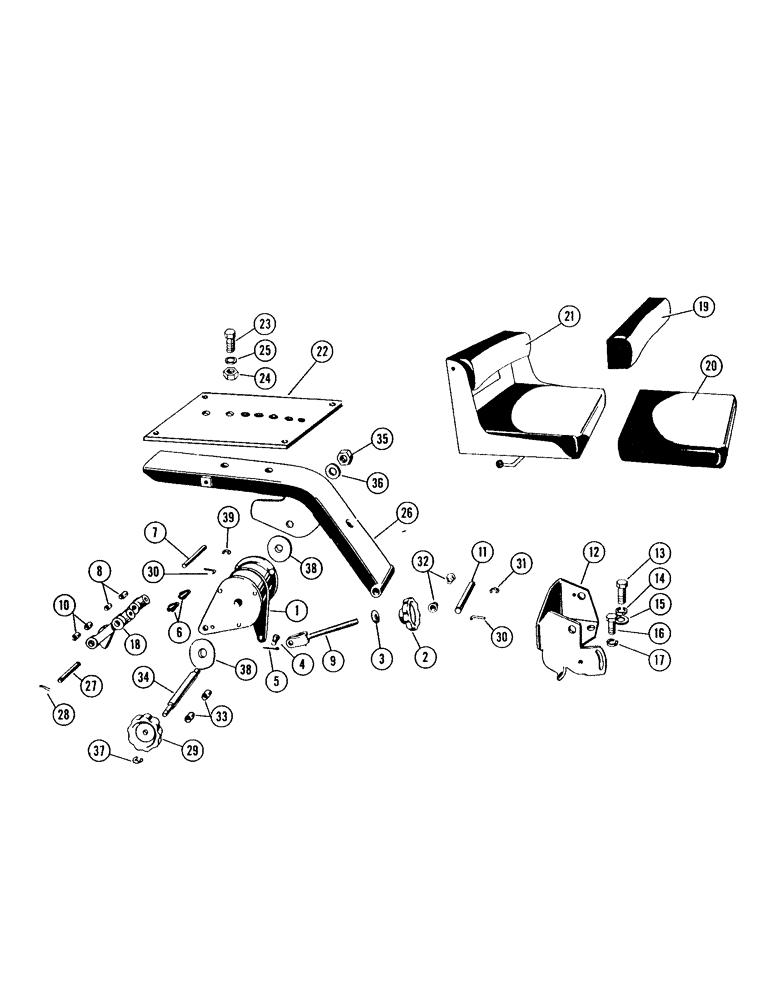

Запчасти Case IH 930 (6-30[1]) - CASE DELUXE SEAT, PAGE 90 (09) - CHASSIS

A9962

PIN - gear shift hand lever

1шт.

O9608AB

X

"E" RING - seat mounting support pin retaining for A7063 (see 132-46)

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), (to retain A21396 pin) 1/8" x 3/4"

2шт.

1

A7053

SPRING

- rubber torsion and side arm assembly

1шт.

2

A7056

NUT

- seat spring adjusting hand wheel

1шт.

3

A7058

BUSHING

WASHER - seat spring adjusting nut

1шт.

4

A7059

PIN - seat spring mounting adjusting rod

1шт.

5

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

6

A7061

BUMPER

- seat, on A11742 link

2шт.

7

A7063

PIN - seat mounting support link, upper

1шт.

8

A7065

BUSHING

- for A11742 upper link support

2шт.

9

A7516

ROD AND YOKE - seat adjusting

1шт.

10

A8433

BUSHING - seat mounting support lower, for A11742 link

2шт.

11

A8819

PIN - seat channel pivot

1шт.

12

A22972

BRACKET - seat channel and throttle lever

1шт.

13

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

195-41

WASHER,5/8"

2шт.

16

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

1шт.

17

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

18

A11706

LINK - uses A11742

1шт.

18

A11742

LINK - seat mounting support with 2 - A7061 bumpers, 2 - A7065 bushings and 2 - A8433 bushings

1шт.

19

A22842

X

REST - seat back

1шт.

20

A22843

X

CUSHION - seat

1шт.

21

A22807

X

SEAT - operator's, complete

1шт.

129-22

NUT - 5/16" N.F. hex #3-56

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

22

A21308

PLATE - seat mounting

1шт.

23

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- 1/2" x 1" N.F. hex

2шт.

24

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

2шт.

25

92-8

LOCK WASHER,1/2"

2шт.

26

A21314

CHANNEL - seat

1шт.

27

A21396

PIN - seat mounting support link, lower

1шт.

28

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

29

6249A

NUT - seat mounting adjusting hand wheel

1шт.

30

O9585AB

X

PIN - lock, for A7063 and A8819 pins

2шт.

31

O9586AB

X

"E" RING - seat channel pivot pin retaining

1шт.

32

O9587AB

X

BUSHING - seat channel pivot pin

2шт.

33

O9597AB

BUSHING - seat mounting pivot bolt

2шт.

34

O9598AB

X

BOLT - seat mounting pivot

1шт.

35

25-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2" N.F. hex jam

1шт.

36

92-8

LOCK WASHER,1/2"

1шт.

37

O9599AB

X

"E" RING - seat mounting pivot bolt retaining

1шт.

38

O9602AB

X

DISC - friction, seat snubbing

2шт.

39

O9608AB

X

"E" RING - seat mounting support pin retaining for A7063

1шт.
