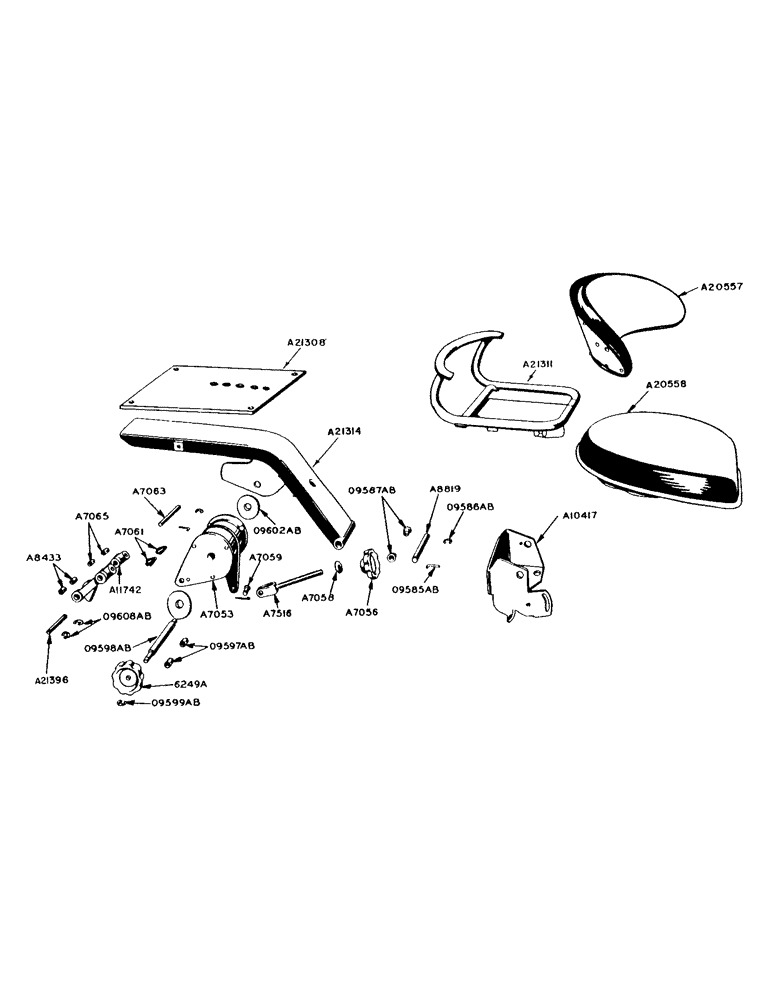

Запчасти Case IH 930 (2-090) - CASE DELUXE SEAT PRIOR TO SERIAL NUMBER 8172001 (09) - CHASSIS

A7053

SPRING

- rubber torsion and side arm assembly

1шт.

A7056

NUT

- seat spring adjusting hand wheel

1шт.

A7058

BUSHING

WASHER - seat spring adjusting nut

1шт.

A7059

PIN - seat spring mounting adjusting rod

1шт.

3/32" x 3/4" cotter pin

1шт.

A7061

BUMPER

- seat, on A11742 link

2шт.

A7063

PIN - seat mounting support link, upper

1шт.

A7065

BUSHING

- for A11742 upper link support

2шт.

A7516

ROD AND YOKE - seat adjusting

1шт.

A8433

BUSHING - seat mounting support lower, for A11742 link

2шт.

A8819

PIN - seat channel pivot

1шт.

A10417

BRACKET - seat channel and throttle lever

1шт.

5/8" x 1-1/4" N.C. hex. bolt w/lockwasher and plain washer

2шт.

3/4" x 1-1/4" N.C. hex. bolt w/lockwasher

1шт.

A11706

LINK - use A11742

1шт.

A11742

LINK - seat mounting support with 2 - A7061 bumpers, 2 - A7065 bushings and 2 - A8433 bushings

1шт.

A20557

BACKREST

REST - seat back

1шт.

A20558

CUSHION - seat

1шт.

A21308

CHANNEL - seat mounting

1шт.

1/2" x 1" N.F. hex. bolt w/nut and lockwasher

2шт.

A21311

FRAME AND GUIDE - seat

1шт.

1/4" x 1-3/8" Phillips hd. mach. screw, zinc plated

7шт.

A21314

CHANNEL - seat

1шт.

A21396

PIN - seat mounting support link, lower

1шт.

6249A

NUT - seat mounting adjusting hand wheel

1шт.

O9585AB

X

PIN - lock, for A7063 and A8819 pins

2шт.

O9586AB

X

"E" RING - seat channel pivot pin retaining

1шт.

O9587AB

X

BUSHING - seat channel pivot pin

2шт.

O9597AB

BUSHING - seat mounting pivot bolt

2шт.

O9598AB

X

BOLT - seat mounting pivot

1шт.

1/2" N.F. hex. jam nut w/lockwasher

1шт.

O9599AB

X

"E" RING - seat mounting pivot bolt retaining

1шт.

O9602AB

X

DISC - friction, seat snubbing

2шт.

O9608AB

X

"E" RING - seat mounting support pin retaining for A7063 and A7064

3шт.
