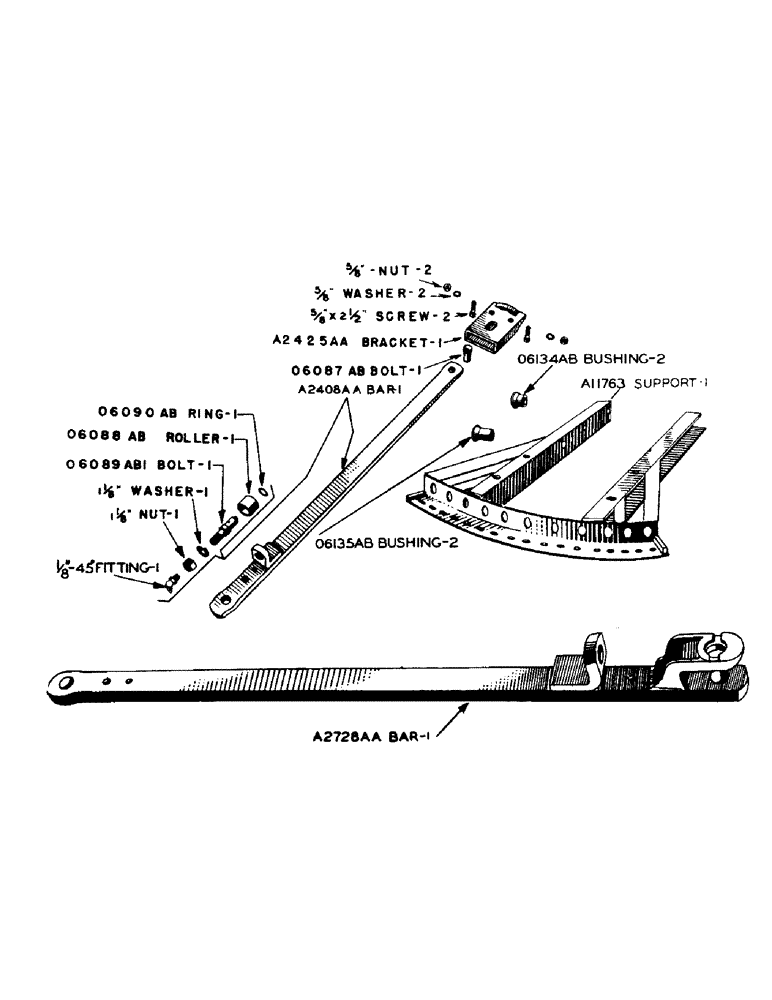

Запчасти Case IH 930 (2-088[1]) - DRAW BAR WITH YOKE TYPE REAR END (09) - CHASSIS

A11763

SUPPORT - draw bar

1шт.

A2408AA

X

DRAW BAR - with roller assembly (consists of: draw bar with 1 - 06088AB, 1 - 06089AB1, 1 - 06090AB, 1 - 1-1/8" N.F. hex. nut w/lockwasher and 1/8" - 45 degree Lincoln fitting)

1шт.

A2425AA

BRACKET - draw bar pivot

1шт.

5/8" x 2-1/2" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

O6087AB

X

BOLT - draw bar pivot

1шт.

O6088AB

X

ROLLER - draw bar

1шт.

O6089AB1

X

BOLT - draw bar roller

1шт.

1/8" - 45 degree Lincoln fitting #5200

1шт.

1-1/8" N.F. hex. nut, light, w/lockwasher

1шт.

O6090AB

X

SNAP RING - draw bar roller bolt

1шт.

O6134AB

BUSHING - draw bar channel, front

2шт.

3/8" x 2-1/2" N.C. hex. hd. cap screw w/lockwasher

2шт.

O6135AB

BUSHING - draw bar channel, rear

2шт.

3/4" x 3" N.C. hex. hd. cap screw w/lockwasher

2шт.

5738A

YOKE - draw bar (use A2728AA)

1шт.

A2728AA

BAR - draw with roller assembly (machy. item) consists of: draw bar with 1 - 06088AB, 1 - 06089AB1, 1 - 06090AB, 1 - 06249AB, 1 - 1-1/8" hex. light nut, N.F. thrd. 1 - 1-1/8" lockwasher, 1 - 3/8 x 2-1/2" cotter pin and 1-1/8" 45 degree Lincoln fitting

1шт.

O6088AB

X

ROLLER - draw bar

1шт.

O6089AB1

X

BOLT - draw bar roller

1шт.

1/8" - 45 degree Lincoln fitting no. 5200

1шт.

1-1/8" N.F. hex. nut w/lockwasher

1шт.

O6090AB

X

SNAP RING - draw bar roller bolt

1шт.

O6249AB

PIN - draw bar

1шт.

3/8" x 2-1/2" cotter pin

1шт.
