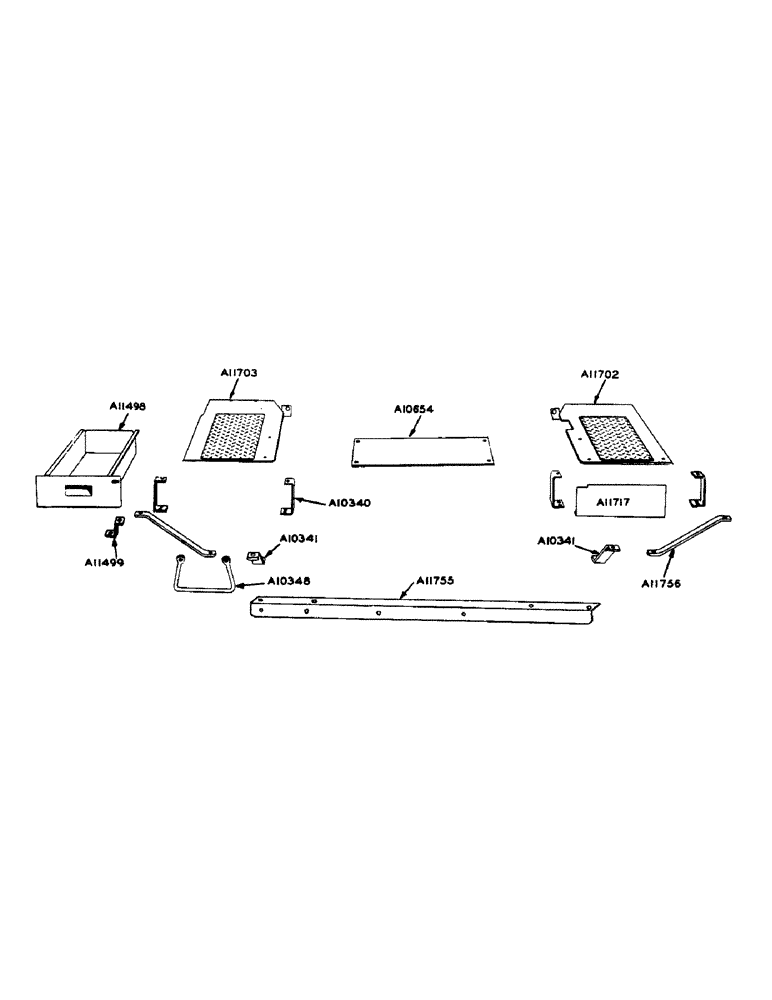

Запчасти Case IH 930 (2-087) - PLATFORM AND TOOL BOX (09) - CHASSIS

A10340

BRACE - platform

4шт.

1/2" x 1-1/2" fin. hex. bolt (NF) w/nut and lockwasher

4шт.

A10341

BRACE - platform, lower

2шт.

5/8" x 1-1/2" fin. hex. bolt (NF) w/nut and lockwasher

2шт.

A10348

STEP

1шт.

1/2" x 1-1/2" hex. hd. bolt (NF) w/nut

2шт.

A10654

PLATE - platform, rear (for tractor less P.T.O. and hydraulic unit)

1шт.

5/16" x 7/8" carr. bolt, w/nut and lockwasher

4шт.

A11498

TOOL BOX

1шт.

1/4" X 1-1/4" rhd. mach. screw w/nut and lockwasher zinc plated

1шт.

A11499

LATCH - tool box

1шт.

5/16" x 1" fin. hex. bolt (NF)

1шт.

A11702

PLATFORM - R.H.

1шт.

5/16" x 7/8" carr. bolt w/nut and lockwasher

8шт.

5/16" std. lockwasher

5шт.

5/16" shakeproof int.-ext. lockwasher #4018-24

2шт.

A11703

PLATFORM - L.H.

1шт.

5/16" x 7/8" carr. bolt w/nut

7шт.

5/16" std. lockwasher

5шт.

5/16" shakeproof int.-ext. lockwasher #4018-24

3шт.

A11717

PANEL - platform cover

1шт.

A11755

ANGLE - platform rear support

1шт.

A11756

BRACE - platform and fender, rear

2шт.

1/2" X 1-1/2" fin. hex. bolt (NF) w/nut

2шт.

1/2" std. lockwasher and plain washer

2шт.
