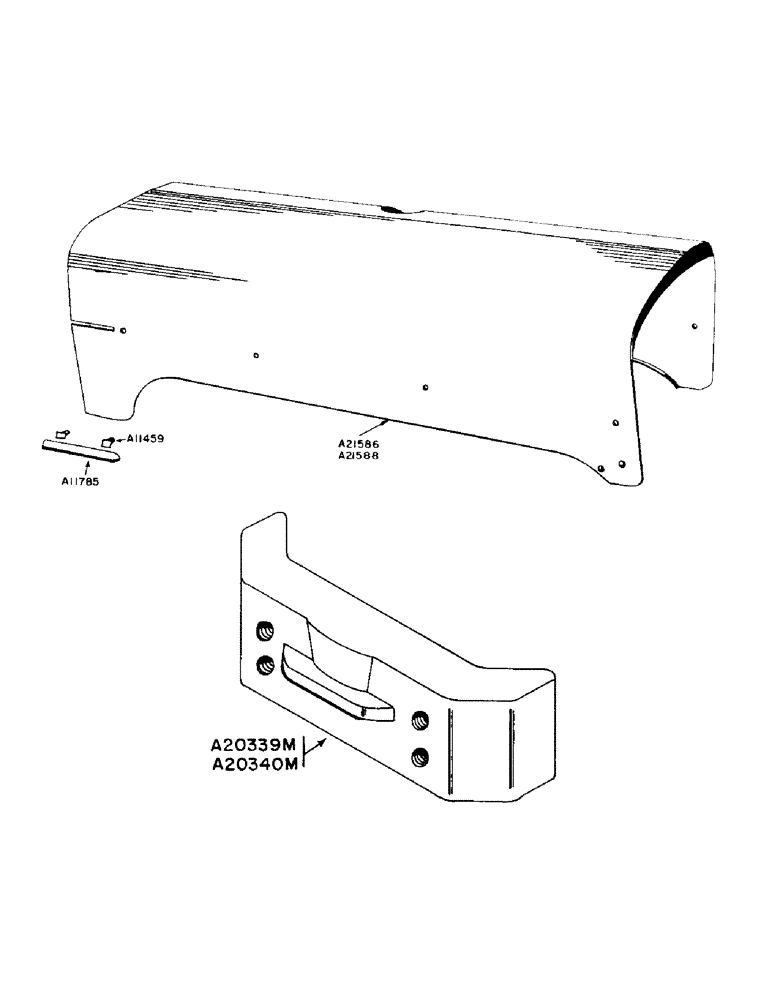

Запчасти Case IH 930 (2-064[1]) - ENGINE HOOD, FRONT END WEIGHTS (09) - CHASSIS

A205-10

PLUG - button, top of hood

1шт.

A7005

CUSHION - hood, anti-squeak

3шт.

A11459

BOLT

- hood trim molding

4шт.

#10-32 mach. screw nut, zinc plated

4шт.

#10 shakeproof ext.-int. lockwasher, zinc plated

4шт.

A11785

MOLDING - hood trim, diesel

2шт.

A21586

HOOD - engine, diesel

1шт.

5/16" - 24 x 3/8" N.F. Phillips hd. mach. screw, zinc plated

4шт.

A21588

HOOD - engine, LP-gas

1шт.

5/16" - 24 x 3/8" N.F. Phillips hd. mach. screw, zinc plated

4шт.

A21589

BRACKET - hood tie down, LP-gas

2шт.

3/8" x 1" N.F. hex. bolt w/nut and lockwasher

4шт.

A20338

WEIGHTS - use A20339M or A20340M

1шт.

A20339M

WEIGHT - front end (machy. item)

1шт.

5/8" x 4" N.C. hex. bolt w/lockwasher

2шт.

A20340M

WEIGHT - additional front end (machy. item)

1шт.

5/8" x 7" N.C. rhd. sq. neck bolt w/nut and lockwasher

2шт.
