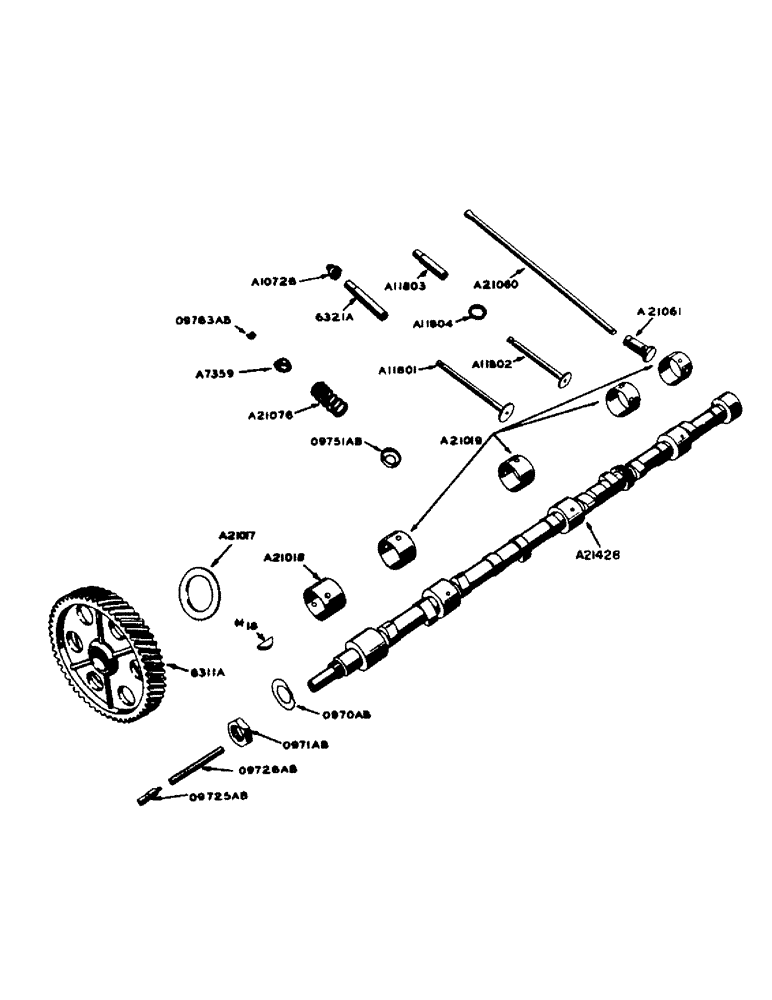

Запчасти Case IH 930 (2-008) - DIESEL ENGINE, VALVES, PUSH RODS AND CAMSHAFT, SEE PAGE 1 OF SUPPLEMENT (02) - ENGINE

A7359

RETAINER - valve spring (use A21657)

12шт.

A10726

SEAL

SHIELD - rubber, intake valve

6шт.

A11801

VALVE

- inlet (use A21712)

6шт.

A11802

VALVE - exhaust (use A21713)

6шт.

A11803

GUIDE

- exhaust valve (use A21674)

6шт.

A11804

INSERT - exhaust valve seat (use A21681)

6шт.

A21017

WASHER

- camshaft thrust

1шт.

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- camshaft front (use A21662)

1шт.

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

BUSHIING - camshaft, second, third, fourth and rear (use A21662)

4шт.

A21060

ROD

- push

12шт.

A21061

LIFTER - push rod (use A21654)

12шт.

A21076

SPRING

- inlet and exhaust valve (use A21694)

12шт.

A21428

X

CAMSHAFT

1шт.

A21654

KIT

LIFTERS - set (4) A21061 push rod

3шт.

A21657

LOCK

RETAINERS AND LOCKS - set of (2) A7359 and (4) 09763AB

6шт.

A21662

X

BUSHINGS - camshaft - set of (1) A21018 and (4) A21019

1шт.

A21671

GUIDE

S - valve, inlet, set of (2) 6321A

3шт.

A21674

GUIDE

S - valve, exhaust, set of (2) A11803

3шт.

A21681

KIT

INSERTS - exhaust valve seat, set of (2) A11804

3шт.

A21694

SPRING

S - valve, set of (4) A21076

1шт.

A21712

VALVE

S - inlet, set of (4) A11801

1шт.

A21713

KIT

VALVES - exhaust, set of (4) A11802

1шт.

6311A

X

GEAR - camshaft

1шт.

#18 Woodruff key

1шт.

6321A

GUIDE - inlet valve (use A21671)

6шт.

O970AB

X

LOCKWASHER - camshaft

1шт.

O971AB

X

NUT - camshaft

1шт.

O9725AB

X

PLUNGER - camshaft thrust

1шт.

O9726AB

X

SPRING - camshaft thrust plunger

1шт.

O9751AB

X

SEAT - inlet and exhaust valve spring

12шт.

O9763AB

LOCK - valve spring retainer (2 per valve) (use A21657)

24шт.
