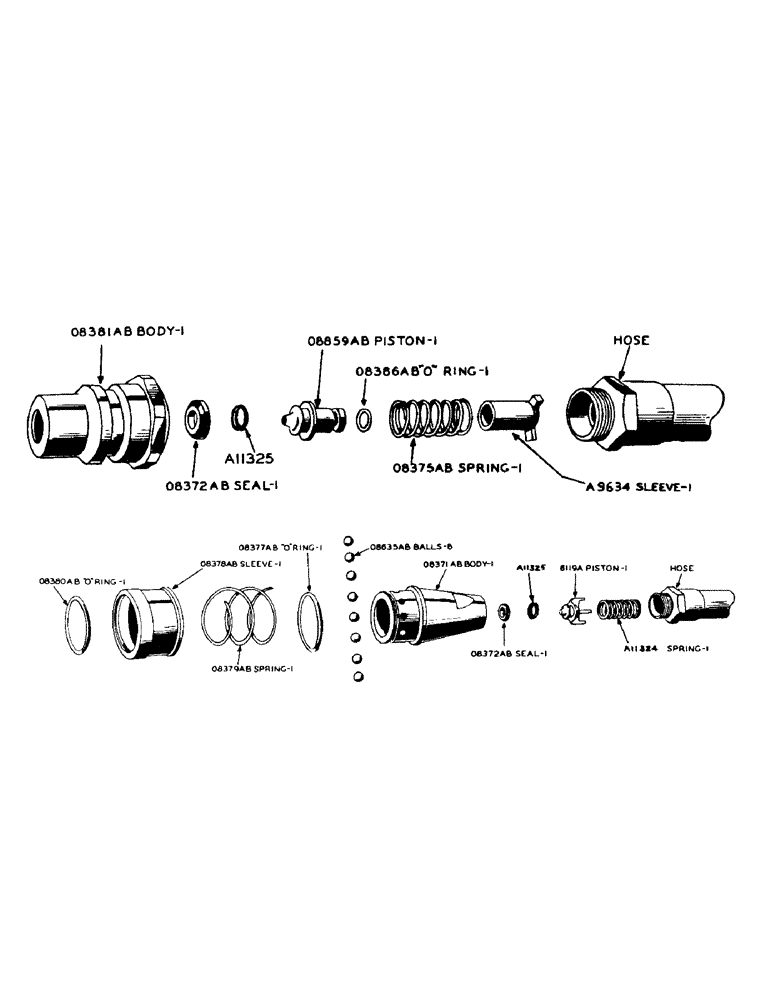

Запчасти Case IH 930 (2-118[1]) - HYDRAULIC CONTROL UNIT, 4026AA BREAK-AWAY SELF SEALING COUPLING FEMALE (08) - HYDRAULICS

A9631ASY

SPARE PART

- coupling plug piston

1шт.

A11325

X

RETAINER - seal

1шт.

4025AA

X

PLUG - break-away self sealing, assembly

2шт.

O8372AB

X

SEAL - piston

1шт.

O8375AB

X

SPRING - piston

1шт.

O8381AB

X

BODY - male plug coupling

1шт.

O8386AB

X

"O" RING - piston sleeve

1шт.

O8859AB

X

PISTON - coupling plug

1шт.

A11324

SPRING

- coupling piston

1шт.

A11325

X

RETAINER - seal

1шт.

6119A

X

PISTON - socket

1шт.

4026AA

X

SOCKET - break-away self sealing coupling assembly

4шт.

O8371AB

BODY - female coupling socket

1шт.

O8372AB

X

SEAL - piston

1шт.

O8377AB

X

"O" RING - socket body

1шт.

O8378AB

X

SLEEVE - ball retaining

1шт.

O8379AB

X

SPRING - ball retaining sleeve

1шт.

O8380AB

X

SNAP RING - socket rubber

1шт.

O8635AB

X

BALL - socket locking

8шт.
