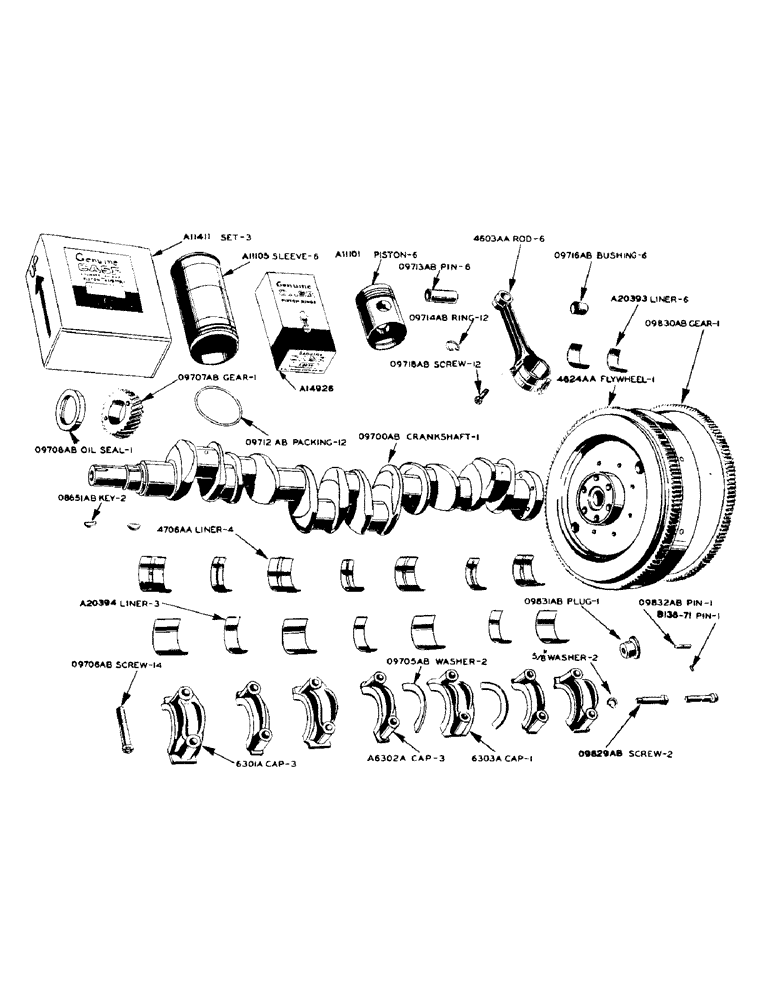

Запчасти Case IH 930 (2-006) - DIESEL ENGINE, PISTONS, CONNECTING RODS AND CRANKSHAFT, PISTIONS AND CONNECTING RODS (02) - ENGINE

A11101

PISTON

6шт.

A11102

RING

- piston, top

6шт.

When piston rings are replaced, use A14926 set of 2-in-1 chrome replacement rings.

1шт.

A11103

RING

- piston, second and third

12шт.

When piston rings are replaced, use A14926 set of 2-in-1 chrome replacement rings.

1шт.

A11104

RING

- piston, oil

6шт.

When piston rings are replaced, use A14926 set of 2-in-1 chrome replacement rings.

1шт.

A11105

X

SLEEVE - cylinder (see A11411)

6шт.

A11411

SET OF (2) CYLINDER SLEEVES, pistons, rings and piston pins

3шт.

A14926

SET OF RINGS

RINGS - piston, set of (24) Perfect Circle 2-in-1 chrome

1шт.

A20393

LINING

LINERS - connecting rod bearing, top and bottom half (std. size)

6шт.

A20569

JOURNAL

LINERS - connecting rod bearing, top and bottom half (.002" undersize)

6шт.

A20571

BEARING LINER

LINERS - connecting rod bearing, top and bottom half (.010" undersize)

6шт.

A20573

KIT

LINERS - connecting rod bearing, top and bottom half (.020" undersize)

6шт.

A20576

LINING

LINERS - connecting rod bearing, top and bottom half (.030" undersize)

6шт.

A21721

BUSHING

S - piston pin, set of (2) 09716AB

3шт.

A21723

PIN

PISTON PINS, set of (2) 09713AB and (4) 09714AB retainers

3шт.

4603AA

X

ROD - connecting, with cap, bushings and capscrews

6шт.

O9712AB

X

PACKING - cylinder sleeve

12шт.

O9713AB

PIN - piston (use A21723)

6шт.

O9714AB

X

RING - piston pin retainer (see A21723)

12шт.

O9716AB

BUSHING - piston pin (use A21721)

6шт.

O9718AB

X

SCREW - connecting rod cap

12шт.

A7182

KIT

LINER - crankshaft bearing (wide-upper and lower) (.002" undersize), see Figure 1 of supplement

4шт.

A7188

BEARING LINER

LINER - crankshaft bearing (wide-upper and lower) (.010" undersize), see Figure 1 of supplement

4шт.

A7194

KIT

LINER - crankshaft bearing (wide-upper and lower) (.020" undersize), see Figure 1 of supplement

4шт.

A7200

KIT

LINER - crankshaft bearing (wide-upper and lower) (.030" undersize), see Figure 1 of supplement

4шт.

A7204

WASHER

- crankshaft thrust (.006" oversize) see 09705AB, see Figure 1 of supplement

2шт.

A20394

LINING

LINER - crankshaft bearing (narrow-upper and lower) (std. size), see Figure 1 of supplement

3шт.

A20579

LINING

LINER - crankshaft bearing (narrow-upper and lower) (.002" undersize), see Figure 1 of supplement

3шт.

A20582

LINING

LINER - crankshaft bearing (narrow-upper and lower) (.010" undersize), see Figure 1 of supplement

3шт.

A20585

KIT

LINER - crankshaft bearing (narrow-upper and lower) (.020" undersize), see Figure 1 of supplement

3шт.

A20588

KIT

LINER - crankshaft bearing (narrow-upper and lower) (.030" undersize), see Figure 1 of supplement

3шт.

B138-71

ROLL pin - 5/32" X 5/8", for 09832AB wiggle pin, crankshaft, see Figure 1 of supplement

1шт.

6301A

CAP - crankshaft bearing, wide, see Figure 1 of supplement

3шт.

A6302A

X

CAP - crankshaft bearing, narrow, see Figure 1 of supplement

3шт.

6303A

CAP - crankshaft thrust bearing, see Figure 1 of supplement

1шт.

6318A

FLYWHEEL (use 4624AA), crankshaft, see Figure 1 of supplement

1шт.

4624AA

FLYWHEEL - w/ring gear, crankshaft, see Figure 1 of supplement

1шт.

4706AA

X

LINER - crankshaft bearing (wide-upper and lower) (std. size), see Figure 1 of supplement

4шт.

O8651AB

X

KEY - Woodruff, crankshaft, see Figure 1 of supplement

2шт.

O9700AB

CRANKSHAFT, see Figure 1 of supplement

1шт.

5/8" X 3" N.F. hex. bolt w/lockwasher, crankshaft, see Figure 1 of supplement

4шт.

O9705AB

X

WASHER - crankshaft thrust (std. size) (see A7204), see Figure 1 of supplement

2шт.

O9706AB

SCREW - crankshaft bearing cap, see Figure 1 of supplement

14шт.

O9707AB

X

GEAR - crankshaft, see Figure 1 of supplement

1шт.

O9708AB

X

OIL SEAL - crankshaft front, see Figure 1 of supplement

1шт.

O9829AB

SCREW - flywheel dowel, crankshaft, see Figure 1 of supplement

2шт.

5/8" std. lockwasher, crankshaft, see Figure 1 of supplement

2шт.

O9830AB

X

GEAR - flywheel (137T), crankshaft, see Figure 1 of supplement

1шт.

O9831AB

X

PLUG - flywheel oil control, crankshaft, see Figure 1 of supplement

1шт.

O9832AB

PIN - wiggle, flywheel oil control, crankshaft, see Figure 1 of supplement

1шт.

A22346

X

GASKET KIT, valve grind, includes the following:

1шт.

A7669

RING

rubber, cylinder head gasket, valve grind kit

6шт.

A11421

GASKET

thermostat housing, valve grind kit

1шт.

A11423

SEAL

"O" RING, thermostat seal, valve grind gasket kit

1шт.

A11888

MANIFOLD GASKET

intake manifold, valve grind kit

3шт.

A11889

GASKET

exhaust manifold, valve grind kit

6шт.

A21517

CYLINDER HEAD GASKET

. cylinder head, valve grind kit

3шт.

O8569AB

X

"O" RING, cylinder head oil passage, valve grind gasket kit

3шт.

O9772AB

X

"O" RING, valve rocker arm shaft tube, valve grind gasket kit

3шт.

O9784AB

GASKET, decompressor, lever housing, valve grind kit

3шт.

O9804AB1

X

GASKET, water manifold, valve grind kit

6шт.

O9959AB

X

GASKET, cylinder head cover, valve grind kit

3шт.
