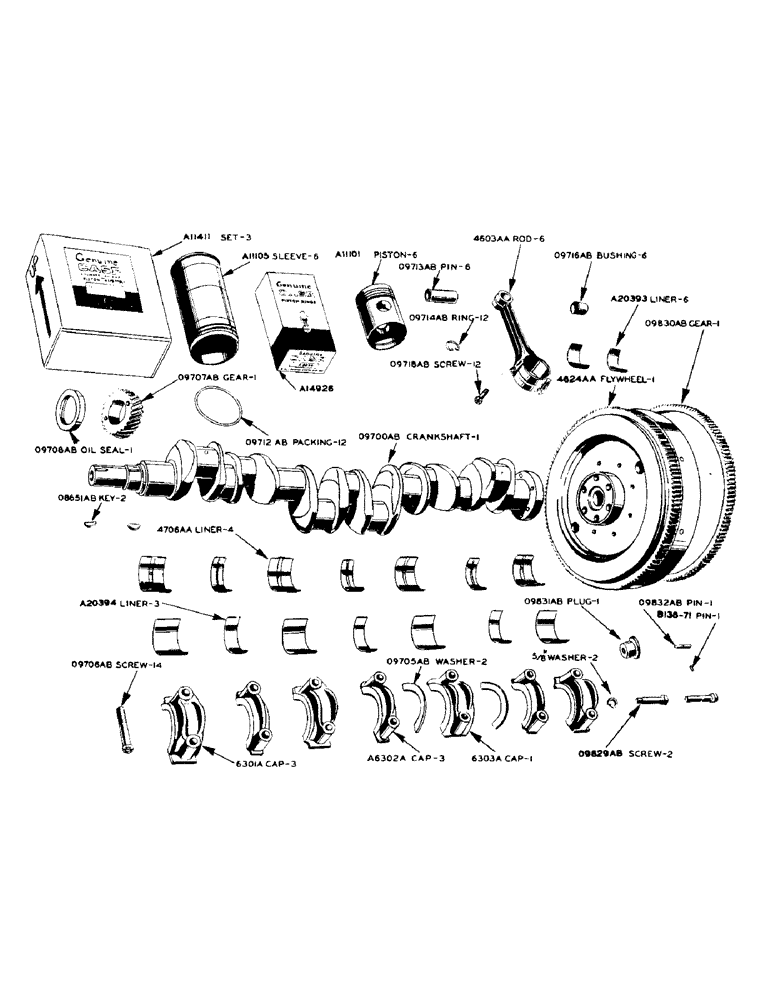

Запчасти Case IH 930 (2-006[1]) - DIESEL ENGINE, CRANKSHAFT SEE PAGE 1 OF SUPPLEMENT (02) - ENGINE

A11101

PISTON

6шт.

A11102

RING

- piston, top

6шт.

When piston rings are replaced, use A14926 set of 2-in-1 chrome replacement rings.

1шт.

A11103

RING

- piston, second and third

12шт.

When piston rings are replaced, use A14926 set of 2-in-1 chrome replacement rings.

1шт.

A11104

RING

- piston, oil

6шт.

When piston rings are replaced, use A14926 set of 2-in-1 chrome replacement rings.

1шт.

A11105

X

SLEEVE - cylinder (see A11411)

6шт.

A11411

SET OF (2) CYLINDER SLEEVES, pistons, rings and piston pins

3шт.

A14926

SET OF RINGS

RINGS - piston, set of (24) Perfect Circle 2-in-1 chrome

1шт.

A20393

LINING

LINERS - connecting rod bearing, top and bottom half (std. size)

6шт.

A20569

JOURNAL

LINERS - connecting rod bearing, top and bottom half (.002" undersize)

6шт.

A20571

BEARING LINER

LINERS - connecting rod bearing, top and bottom half (.010" undersize)

6шт.

A20573

KIT

LINERS - connecting rod bearing, top and bottom half (.020" undersize)

6шт.

A20576

LINING

LINERS - connecting rod bearing, top and bottom half (.030" undersize)

6шт.

A21721

BUSHING

S - piston pin, set of (2) 09716AB

3шт.

A21723

PIN

PISTON PINS, set of (2) 09713AB and (4) 09714AB retainers

3шт.

4603AA

X

ROD - connecting, with cap, bushings and capscrews

6шт.

O9712AB

X

PACKING - cylinder sleeve

12шт.

O9713AB

PIN - piston (use A21723)

6шт.

O9714AB

X

RING - piston pin retainer (see A21723)

12шт.

O9716AB

BUSHING - piston pin (use A21721)

6шт.

O9718AB

X

SCREW - connecting rod cap

12шт.

A7182

KIT

LINER - crankshaft bearing (wide-upper and lower) (.002" undersize)

4шт.

A7188

BEARING LINER

LINER - crankshaft bearing (wide-upper and lower) (.010" undersize)

4шт.

A7194

KIT

LINER - crankshaft bearing (wide-upper and lower) (.020" undersize)

4шт.

A7200

KIT

LINER - crankshaft bearing (wide-upper and lower) (.030" undersize)

4шт.

A7204

WASHER

- crankshaft thrust (.006" oversize) see 09705AB

2шт.

A20394

LINING

LINER - crankshaft bearing (narrow-upper and lower) (std. size)

3шт.

A20579

LINING

LINER - crankshaft bearing (narrow-upper and lower) (.002" undersize)

3шт.

A20582

LINING

LINER - crankshaft bearing (narrow-upper and lower) (.010" undersize)

3шт.

A20585

KIT

LINER - crankshaft bearing (narrow-upper and lower) (.020" undersize)

3шт.

A20588

KIT

LINER - crankshaft bearing (narrow-upper and lower) (.030" undersize)

3шт.

B138-71

ROLL pin - 5/32" x 5/8", for 09832AB wiggle pin

1шт.

6301A

CAP - crankshaft bearing, wide

3шт.

A6302A

X

CAP - crankshaft bearing, narrow

3шт.

6303A

CAP - crankshaft thrust bearing

1шт.

6318A

FLYWHEEL (use 4624AA)

1шт.

4624AA

FLYWHEEL - w/ring gear

1шт.

4706AA

X

LINER - crankshaft bearing (wide-upper and lower) (std. size)

4шт.

O8651AB

X

KEY - Woodruff, crankshaft

2шт.

O9700AB

CRANKSHAFT

1шт.

5/8" x 3" N.F. hex. bolt w/lockwasher

4шт.

O9705AB

X

WASHER - crankshaft thrust (std. size) (see A7204)

2шт.

O9706AB

SCREW - crankshaft bearing cap

14шт.

O9707AB

X

GEAR - crankshaft

1шт.

O9708AB

X

OIL SEAL - crankshaft front

1шт.

O9829AB

SCREW - flywheel dowel

2шт.

5/8" std. lockwasher

2шт.

O9830AB

X

GEAR - flywheel (137T)

1шт.

O9831AB

X

PLUG - flywheel oil control

1шт.

O9832AB

PIN - wiggle, flywheel oil control

1шт.

A22346

X

GASKET KIT, valve grind, includes the following:

1шт.

A7669

RING

rubber, cylinder head gasket

6шт.

A11421

GASKET

thermostat housing

1шт.

A11423

SEAL

"O" RING, thermostat seal

1шт.

A11888

MANIFOLD GASKET

intake manifold

3шт.

A11889

GASKET

exhaust manifold

6шт.

A21517

CYLINDER HEAD GASKET

. cylinder head

3шт.

O8569AB

X

"O" RING, cylinder head oil passage

3шт.

O9772AB

X

"O" RING, valve rocker arm shaft tube

3шт.

O9784AB

GASKET, decompressor, lever housing

3шт.

O9804AB1

X

GASKET, water manifold

6шт.

O9959AB

X

GASKET, cylinder head cover

3шт.
