Запчасти Case IH 930 (2-084[1]) - STEEL REAR WHEEL EXTENSIONS (54" X 8") (06) - POWER TRAIN

A11939

WHEEL - rear, steel (11-1/8" x 54")

2шт.

A7105M

EXTENSION - rear wheel (54" x 8") machy. item

2шт.

O1959AB

STRAP - tie, rear wheel extension

14шт.

3/4" x 1-3/4" mach. bolt w/hex. nut and lockwasher (tie strap extension)

14шт.

3/4" x 2" mach. bolt w/hex. nut and lockwasher (tie strap to rear wheel)

14шт.

3/4" x 2" no. 1 keyhead old standard plow bolt w/hex. and lockwasher (tie strap to extension)

14шт.

A7365M

EXTENSION - rear wheel (54" x 12") machy. item

2шт.

O1959AB

STRAP - tie, rear wheel extension

14шт.

3/4" x 1-3/4" mach. bolt w/hex. nut and lockwasher (tie strap to extension)

14шт.

3/4" x 2" no. 1 key head old standard plow bolt w/hex. nut and lockwasher

14шт.

489AA

LUGS - set of (56) steel spade for rear wheel (machy. item) (consists of: 56 - 02802AB lugs, bolts, nuts and lockwashers)

1шт.

557AA

LUGS - set of (28) steel spade for rear wheel extension (machy. item) (consists of: 28 - 02802AB lugs, bolts, nuts and lockwashers)

1шт.

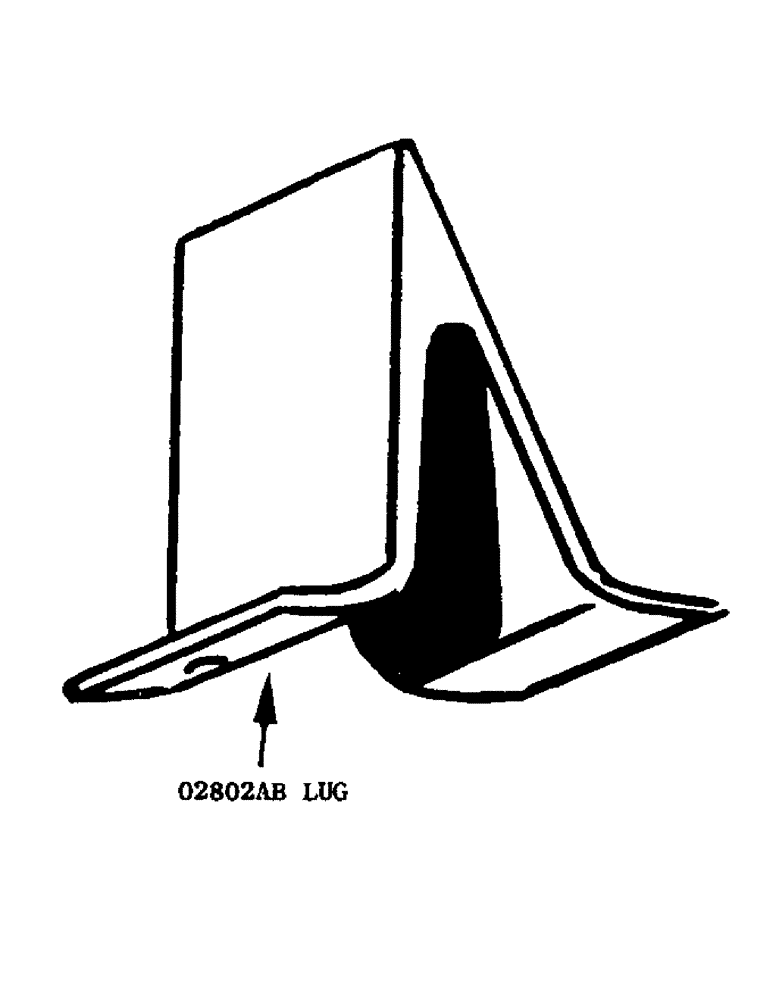

O2802AB

LUG - 6" steel spade, for rear wheel extension

28шт.

3/4" x 1-1/2" mach. bolt w/hex. nut and lockwasher

42шт.

3/4" x 2" mach. bolt w/hex. nut and lockwasher

14шт.

O2802AB

LUG - 6" steel spade, for rear wheel

56шт.

3/4" x 1-1/2" mach. bolt w/hex. nut and lockwasher

112шт.
