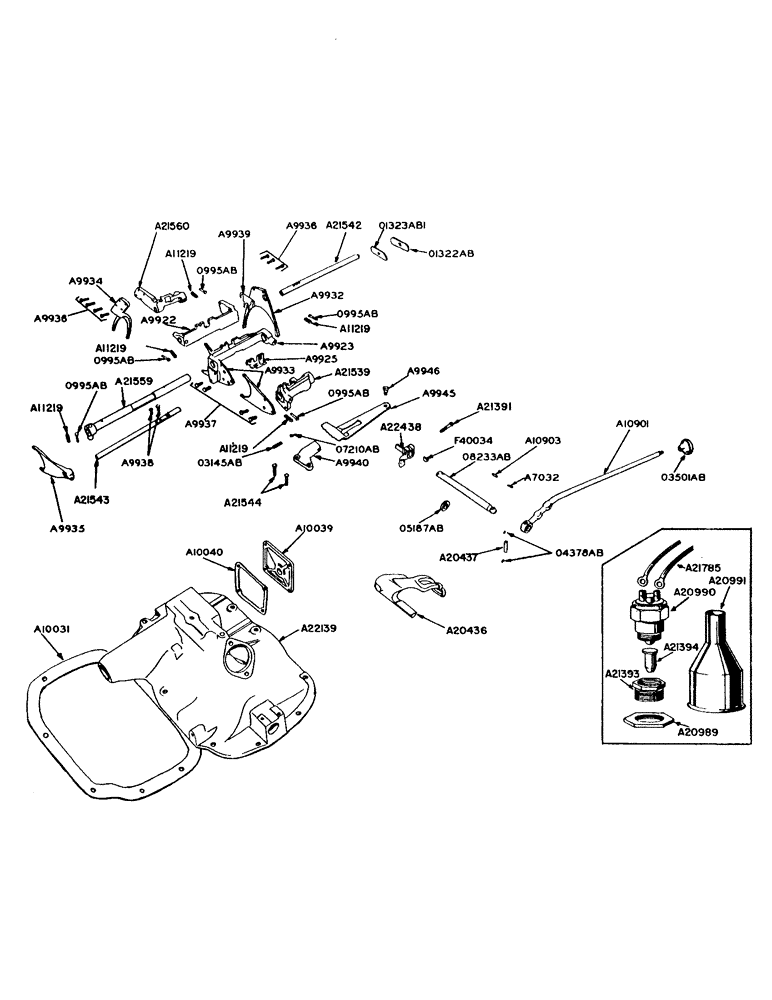

Запчасти Case IH 930 (2-070) - GEAR SHIFT PARTS (06) - POWER TRAIN

A7032

SPRING

- gear shift hand lever lock plunger

1шт.

A9922

SHIFTER - first and fourth gear

1шт.

A9923

SHIFTING UNIT

SHIFTER - second and reverse gear

1шт.

A9925

SHIFTER - fifth gear

1шт.

A9932

FORK - first and fourth gear

1шт.

A9933

FORK - second, sixth and reverse speed shifter

2шт.

A9934

FORK - third gear shifter

1шт.

A9935

FORK - fifth gear shifter

1шт.

7/16" x 1-1/4" N.F. hex. bolt w/lockwasher

1шт.

A9936

SCREW - first, third and fourth gear shifter fork

7шт.

A9937

SCREW - second, sixth and reverse gear shifter fork

4шт.

A9938

SCREW - fifth gear shifter fork

2шт.

A9939

SHIM - fourth gear shifter

1шт.

A9940

HOUSING - interlock ball

1шт.

A9945

PLATE - transmission shift selector and lockout grille

1шт.

A9946

CAP SCREW - gear shift selector plate

1шт.

A10031

GASKET

- transmission case top cover

1шт.

A10039

COVER - steering gear, on transmission case top cover

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher

4шт.

A10040

GASKET - steering gear cover

1шт.

A10901

LEVER - gear shift hand

1шт.

A10903

PLUNGER

- lock, gear shift hand lever

1шт.

A11219

SPRING - for A9922, A9923, A9925, A21539 and A21560 shifters

5шт.

A20436

BRACKET - (use A20488)

1шт.

A20437

PIN - gear shift hand lever bracket

1шт.

1/4" N.F. hex. nut w/shakeproof int. lockwasher #1214-00

1шт.

A20488

BRACKET - gear shift hand lever (includes A20437 pin)

1шт.

A20989

LOCK NUT

LOCKNUT - switch adjustment nut

1шт.

A20990

SWITCH

- safety, neutral start

1шт.

#8-32 x 1/4" N.C. rhd. mach. screw

2шт.

1/4" shakeproof lockwasher #1208 cadmium plated

2шт.

A20991

BOOT

- dust seal, for safety switch

1шт.

A21391

BOLT - gear shifter arm

1шт.

3/8" N.F. castle nut

1шт.

3/32" x 7/8" cotter pin

1шт.

A21393

NUT - neutral switch adjustment

1шт.

A21394

PIN - neutral switch button

1шт.

A21539

SHIFTER - sixth gear

1шт.

A21541

SHIM - third gear shifter

1шт.

A21542

SHAFT - first, third and fourth gear shifter

1шт.

A21543

SHAFT - fifth gear shifter

1шт.

A21544

SCREW - interlock ball housing

2шт.

3/8" N.C. hex. nut

1шт.

A21559

SHAFT - second, sixth and reverse gear shifter

1шт.

A21560

X

SHIFTER - third gear

1шт.

A21785

WIRE - neutral starting, Serial Range: switch-starter

1шт.

A22125

BUSHING

- steering arm shaft (in A22139)

2шт.

A22139

COVER - transmission case, top w/A22125 bushings

1шт.

1/2" x 1-1/4" N.C. hex. bolt w/lockwasher

5шт.

1/2" x 1" N.C. hex. bolt w/lockwasher

1шт.

1/2" x 2-1/2" N.C. hex. bolt w/lockwasher

1шт.

A22438

ARM - gear shifter, and neutral switch contact bar

1шт.

B138-51

ROLL PIN - 1/8" x 3/8" in A9940 housing

1шт.

F40034

KEY

- Woodruff, gear shift hand lever shaft

1шт.

O995AB

PLUNGER - gear shifter

5шт.

3/32" x 1/2" cotter pin

5шт.

O1322AB

PLATE - shifter shaft end

2шт.

O1323AB1

X

GASKET - shifter shaft end plate

2шт.

O3145AB

X

SPRING - interlock ball housing

1шт.

O3501AB

X

BALL - gear shift hand lever

1шт.

O4378AB

SNAP RING - gear shifter hand lever pin

2шт.

O5187AB

X

OIL SEAL - gear shifter shaft

1шт.

O7166AB

X

BREATHER - transmission

1шт.

O7210AB

X

BALL - 1/2" steel, interlock housing

1шт.

O8233AB

SHAFT - gear shift hand lever

1шт.
