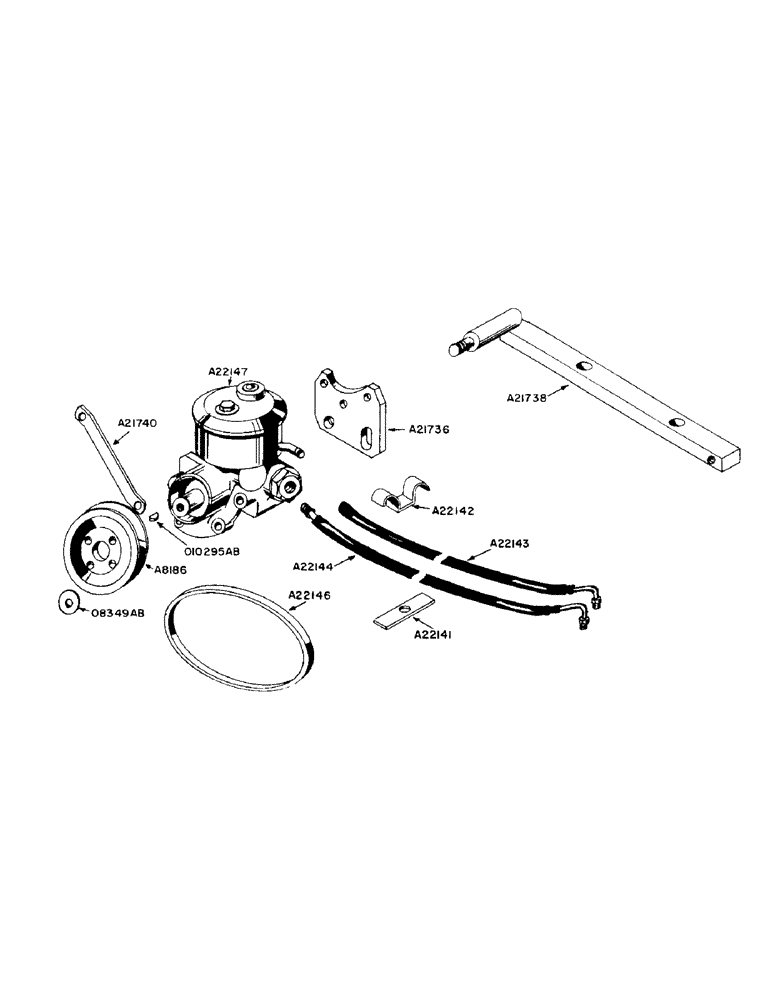

Запчасти Case IH 930 (2-099) - HYDRAULIC POWER STEERING PUMP (05) - STEERING

A8186

PULLEY

- pump

1шт.

5/16" x 3/4" N.C. hex. bolt w/lockwasher

1шт.

A21736

PLATE - mounting

1шт.

3/8" N.F. hex. nut and lockwasher

3шт.

A21738

STRAP - pump mounting

1шт.

3/8" N.F. hex. nut w/lockwasher

1шт.

7/16" x 1-1/2" N.F. hex. bolt w/lockwasher (diesel only)

2шт.

A21740

STRAP - steering pump adjusting

1шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

3/8" x 2-3/4" N.C. hex. bolt w/hex. nut and plain washer

1шт.

A22141

BRACKET - hydraulic hose clamp

1шт.

A22142

CLAMP - hydraulic hose

1шт.

A22143

HOSE

- valve to pump, return

1шт.

#4 Wittek hose clamp (3/4" long screw)

1шт.

A22144

X

HOSE - pump, Serial Range: outlet-valve

1шт.

A22146

BELT,30.00" L

Drive 30.00" L

1шт.

A22147

PUMP - hydraulic power steering

1шт.

O8349AB

X

WASHER - pump shaft end

1шт.

O10295AB

X

KEY - pulley

1шт.

FOOTNOTE

1шт.

REF. BELTS-A22764 IS 27" AND A22763 IS 29"

1шт.
