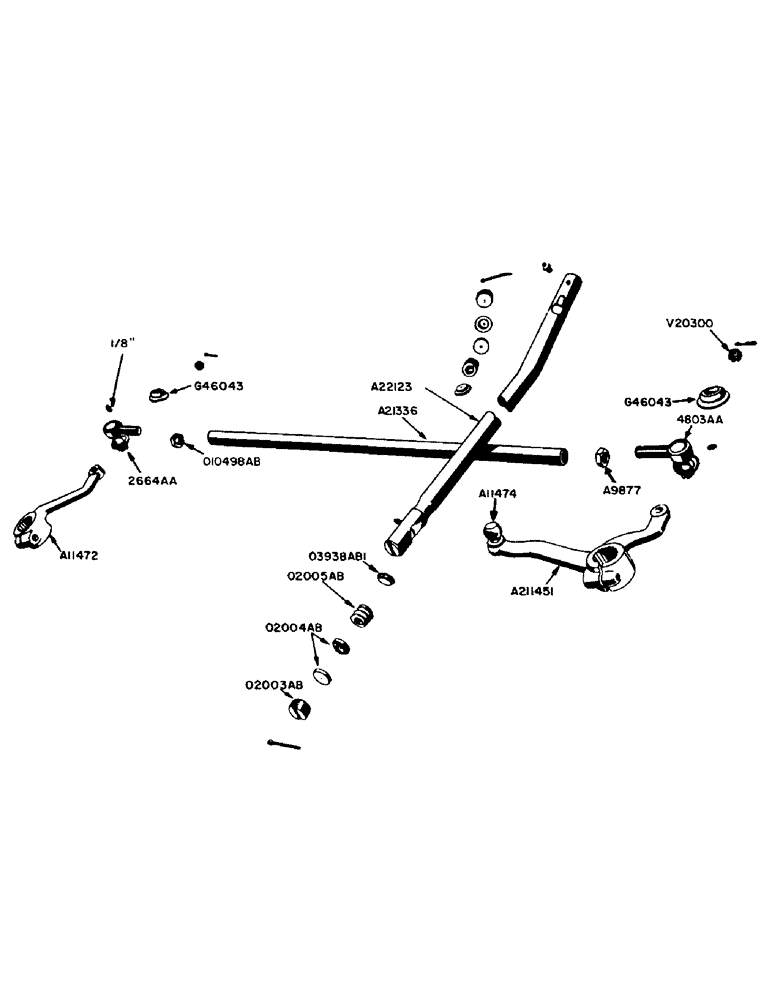

Запчасти Case IH 930 (2-098) - STEERING ARMS AND TIE ROD (05) - STEERING

A9877

NUT

- jam, front axle tie rod, L.H. thread for 4803AA

1шт.

A11472

ARM - steering, R.H.

1шт.

1/2" x 3" N.F. hex. bolt w/nut and lockwasher

1шт.

A11474

BALL

- steering arm

1шт.

A21336

TUBE - tie rod

1шт.

A21451

ARM - steering spindle, w/ball L.H.

1шт.

1/2" x 3" N.F. hex. bolt w/nut and lockwasher

1шт.

2664AA

X

END - tie rod, R.H. thread

1шт.

1/8" str. Lincoln fitting #5000

1шт.

1/8" x 1" cotter pin

1шт.

4803AA

X

END - tie rod, L.H. thread

1шт.

1/8" str. Lincoln fitting #5000

1шт.

1/8" x 1" cotter pin

1шт.

O10498AB

NUT - jam, front axle tie rod, R.H. thread for 2664AA

1шт.

G46043

COVER

- dust, tie rod end

2шт.

V20300

OPERATOR MANUAL

NUT - slotted hex. for 2664AA and 4803AA tie rod end

2шт.

A22123

LINK - steering drag (mechanical steering), A22123

1шт.

1/8" str. Lincoln fitting #5000, A22123 steering drag link

2шт.

O2003AB

X

SCREW - adjusting, for drag link, A22123 steering

2шт.

1/8" x 2" cotter pin, A22123 steering drag link

2шт.

O2004AB

BEARING - drag link, A22123 steering

4шт.

O2005AB

X

SPRING - drag link, A22123 steering

2шт.

O3938AB1

X

SEAT AND SPACER - drag link, A22123 steering

2шт.
