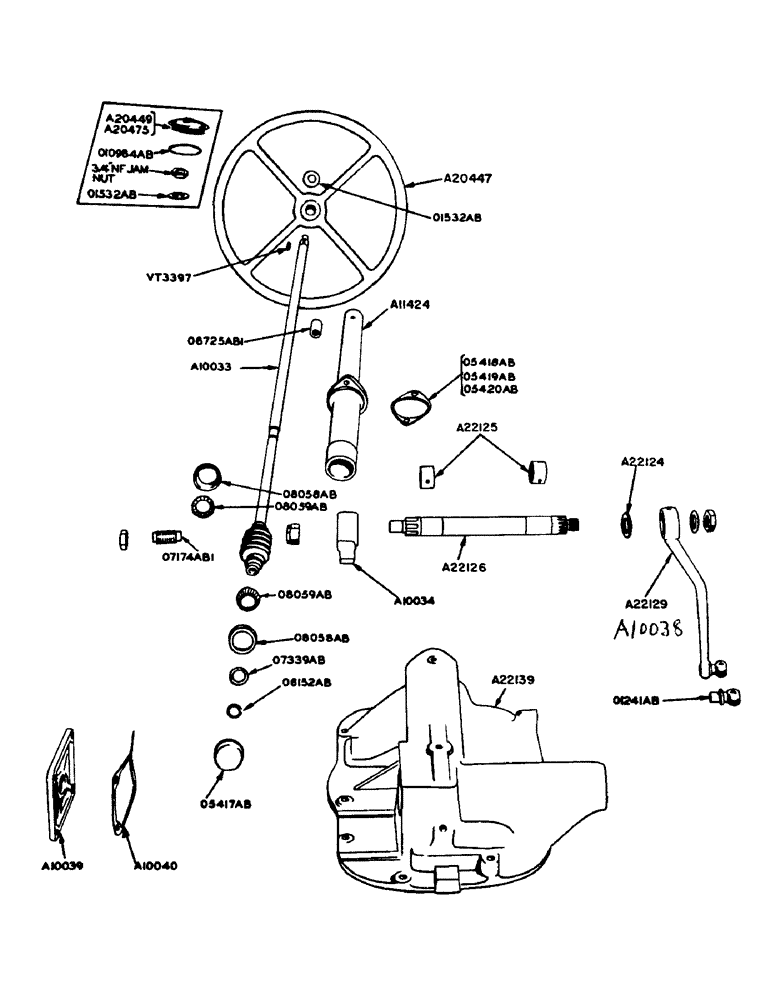

Запчасти Case IH 930 (2-096) - STEERING GEAR (05) - STEERING

A10033

SHAFT - steering wheel w/worm gear

1шт.

3/4" N.f. hex. jam nut

1шт.

A10034

GEAR - steering worm drive

1шт.

A10035

SCREW - adjusting, steering worm drive stop

2шт.

A10039

COVER - steering gear side

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher

4шт.

A10040

GASKET - side cover

1шт.

A11424

COLUMN - steering shaft w/bushing

1шт.

1/8" str. Lincoln fitting #5000

1шт.

1/2" x 1-1/2" N.C hex. bolt w/lockwasher

2шт.

A20447

WHEEL - steering

1шт.

A20449

EMBLEM CASE/IH

MEDALLION - steering wheel, mechanical steering

1шт.

A20475

CAP

MEDALLION - steering wheel, power steering

1шт.

A22124

OIL SEAL

- steering arm shaft

1шт.

A22125

BUSHING

- steering arm shaft

2шт.

A22126

SHAFT - steering drop arm

1шт.

1" - 14 slotted nut

1шт.

1" - 14 Marsden locknut

1шт.

1/8" x 1-1/2" cotter pin

1шт.

A22129

ARM - steering drop, w/ball mechanical steering

1шт.

A22139

COVER - transmission case top w/bushings

1шт.

O1241AB

BALL - steering drop arm

1шт.

O1532AB

WASHER - steering shaft upper end

1шт.

O5417AB

PLUG - steering column end

1шт.

O5418AB

SHIM - .033"

4шт.

O5419AB

SHIM - .005"

3шт.

O5420AB

SHIM - 28 gauge

4шт.

O6152AB

SNAP RING - steering worm

1шт.

O6725AB1

X

BUSHING - steering column

1шт.

O7174AB1

SCREW - adjusting

1шт.

1" N.F. hex. jam nut

1шт.

O7339AB

WASHER - bearing retainer

1шт.

O8058AB

X

CUP - steering shaft bearing (Timken #24)

2шт.

O8059AB

X

CONE - steering shaft bearing (Timken #213C)

2шт.

O10984AB

X

"O" RING - steering wheel medallion

1шт.

VT3397

WOODRUFF KEY - steering shaft

1шт.

A10038

ARM - steering (power steering)

1шт.
