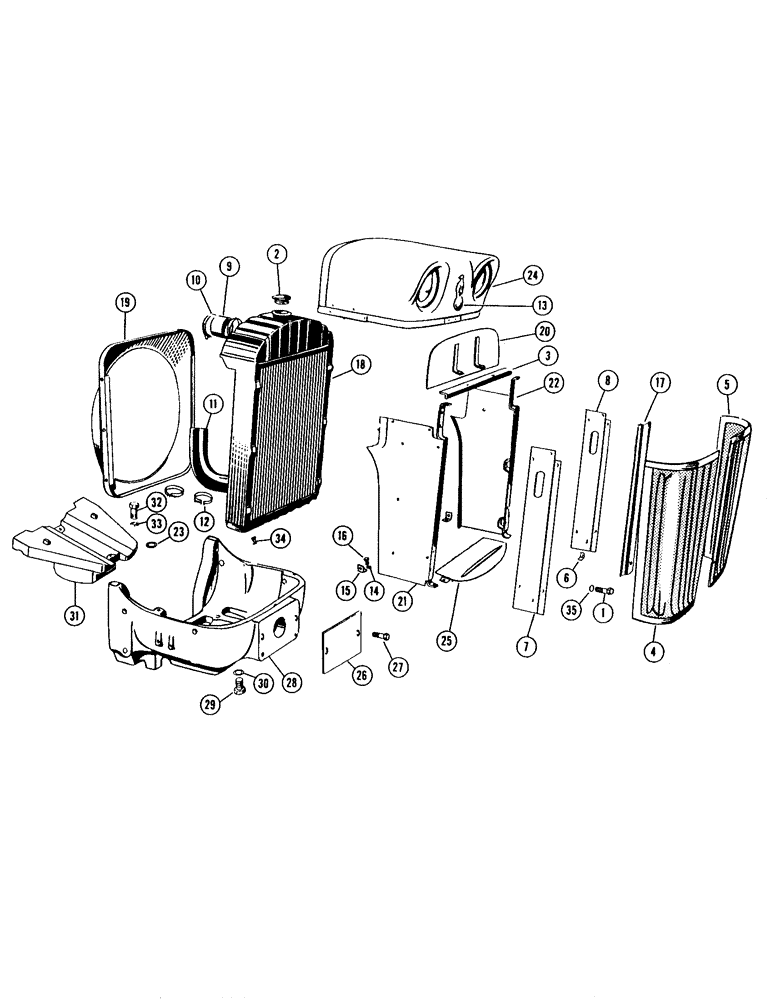

Запчасти Case IH 930 (5-24) - RADIATOR AND GRILLE, FRONT TRACTOR LAMP, PAGE 56 (04) - ELECTRICAL SYSTEMS

A11765

WIRE - connector to headlamp (w/connector) (prior to serial no. 8172001)

1шт.

A11943

WIRE - connector to headlamp (w/connector) (serial no. 8172001 and after)

1шт.

A22880

CLIP

- outlet socket wire to P.T.O. hsg. (serial no. 8172001 and after), rear lamp

5шт.

O7532AB

CLIP - rear lamp wire loom (2) and outlet socket wire loom (prior to serial no. 8172001)

5шт.

1

A8399

BOLT,Hex, Tap, 5/8" - 11 x 1 3/4", Gr 5

- radiator grille and "A" frame, serial no. 8172001 and after

1шт.

2

A10259

CAP

- radiator pressure, grille, serial no. 8172001 and after

1шт.

3

A11049

BRACE - radiator side member, top, grille, serial no. 8172001 and after

1шт.

76-48

BOLT (MACHINE)

SCREW - 1/4" x 1/2" N.F. rhd. mach, radiator and grille, serial no. 8172001 and after

2шт.

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

LOCKWASHER - 1/4" shakeproof ext.-int., radiator and grille, serial no. 8172001 and after

2шт.

4

A11286

GRILLE - R.H., radiator, serial no. 8172001 and after

1шт.

5

A11287

TUBE

GRILLE - L.H., radiator, serial no. 8172001 and after

1шт.

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- 1/4" x 3/4" N.C. Phillips hd. mach. (for A11286 and A11287), radiator and grille, serial no. 8172001 and after

8шт.

6

A11292

BRACE - radiator side member extension, grille, serial no. 8172001 and after

2шт.

7

A11328

DECAL

EXTENSION - radiator side member, R.H., grille, serial no. 8172001 and after

1шт.

8

A11329

EXTENSION - radiator side member, L.H., grille, serial no. 8172001 and after

1шт.

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- 1/4" x 1/2" N.C. Phillips truss head mach., zinc plated, radiator and grille, serial no. 8172001 and after

14шт.

9

A11446

RADIATOR HOSE,2.50" ID x 2.13", SAE 20R2

Inlet , Grille, Serial No. 8172001 and After 2.50" ID x 2.13", SAE 20R2

1шт.

10

214-35

CLAMP

- hose, radiator and grille, serial no. 8172001 and after

2шт.

11

A11447

X

HOSE - radiator to water pump (2-1/4" I.D. x 2-5/8" O.D.), grille, serial no. 8172001 and after

1шт.

12

214-33

CLAMP

- hose, radiator and grille, serial no. 8172001 and after

2шт.

13

A11492

X

MEDALLION - grille cap, radiator, serial no. 8172001 and after

1шт.

131-131

NUT

- 3/16" Tinnerman speed grip, push-on type, radiator and grille, serial no. 8172001 and after

2шт.

14

A11737

WASHER - radiator side members, grille, serial no. 8172001 and after

2шт.

15

A11905

CLIP - radiator side member rear support, grille, serial no. 8172001 and after

2шт.

16

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - 3/8" x 1/2" N.F. hex, radiator and grille, serial no. 8172001 and after

2шт.

17

A20378

BRACE

CENTERPIECE - grille, radiator, serial no. 8172001 and after

1шт.

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- 1/4" x 1/2" N.C. Phillips truss hd. mach. (zinc plated), radiator and grille, serial no. 8172001 and after

1шт.

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- 1/4" x 3/4" N.C. Phillips truss hd. mach. (zinc plated), radiator and grille, serial no. 8172001 and after

2шт.

25-104

NUT,1/4"-20, G5

Radiator and grille, S/N 8172001 and after 1/4"-20, G5

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Radiator and grille, S/N 8172001 and after 1/4"

2шт.

18

A20918

RADIATOR, grille, serial no. 8172001 and after

1шт.

19

A20925

SHROUD - radiator, grille, serial no. 8172001 and after

1шт.

20

A20954

PLATE - radiator upper baffle, grille, serial no. 8172001 and after

1шт.

75-412

SCREW,Rd, 1/4" x 3/4"

- 1/4" x 3/4" N.C. rhd. mach, radiator and grille, serial no. 8172001 and after

2шт.

25-104

NUT,1/4"-20, G5

Radiator and grille, S/N 8172001 and after 1/4"-20, G5

2шт.

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

LOCKWASHER - 1/4" shakeproof ext.-int. tooth, radiator and grille, serial no. 8172001 and after

2шт.

21

A20960

MEMBER - radiator side, R.H., grille, serial no. 8172001 and after

1шт.

22

A20961

MEMBER - radiator side, L.H., grille, serial no. 8172001 and after

1шт.

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" - 20 Tinnerman speed grip, radiator and grille, serial no. 8172001 and after

4шт.

131-122

NUT

- 5/16" - 24 Tinnerman speed grip, radiator and grille, serial no. 8172001 and after

2шт.

23

A21546

WASHER - radiator bracket weight hold-down, grille, serial no. 8172001 and after

2шт.

24

A21631

CAP - radiator grille, serial no. 8172001 and after

1шт.

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- 1/4" x 5/8" N.C. Phillips truss hd. mach., zinc plated, radiator and grille, serial no. 8172001 and after

4шт.

25

A22690

PLATE - lower radiator baffle, grille, serial no. 8172001 and after

1шт.

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex, radiator and grille, serial no. 8172001 and after

2шт.

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Radiator and grille, S/N 8172001 and after Hex, 5/16"-24 x 1 3/4", G5

2шт.

26

A22769

COVER - radiator bracket, front, grille, serial no. 8172001 and after

1шт.

27

13-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd

Radiator and grille, S/N 8172001 and after Hex, 5/8"-11 x 3/4", G5, Full Thd

2шт.

28

A22803

BRACKET - radiator and front axle, grille, serial no. 8172001 and after

1шт.

29

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Radiator and grille, S/N 8172001 and after Hex, 3/4"-10 x 2", G5

4шт.

30

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Radiator and grille, S/N 8172001 and after 3/4"

4шт.

31

A22819

WEIGHT - radiator bracket, grille, serial no. 8172001 and after

1шт.

32

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C. hex, radiator and grille, serial no. 8172001 and after

2шт.

33

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Radiator and grille, S/N 8172001 and after 5/8"

2шт.

34

O9739AB

X

VALVE - radiator drain, grille, serial no. 8172001 and after

1шт.

35

O6480HT

X

SPACER - A8399 grille bolt, radiator, serial no. 8172001 and after

1шт.
