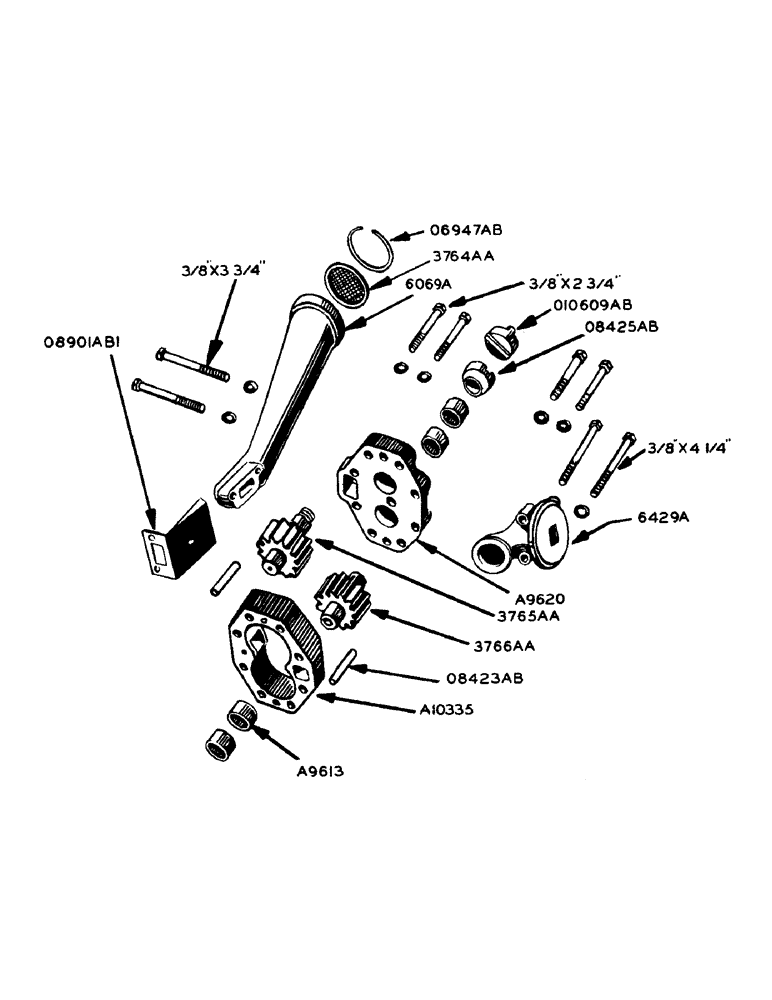

Запчасти Case IH 920 (28) - HYDRAULIC PUMP, 15 GALLON PER MINUTE CAPACITY, USE IN PLACE OF PAGE 112 OF PARTS CATALOG NO. 628 (08) - HYDRAULICS

A9613

NEEDLE BEARING,0.875" ID x 1.375" OD x 0.75"

BEARING - (BCA SV7173) hydraulic pump shaft

4шт.

A9620

COVER

- hydraulic pump body

1шт.

3/8" x 3-1/4" N.C. hex. hd. cap screw w/lockwasher

4шт.

A10335

BODY

- hydraulic pump

1шт.

3/8" x 2-3/4" N.C. hex. hd. cap screw w/lockwasher

4шт.

6069A

ELBOW - hydraulic pump inlet

1шт.

3/8" x 3-3/4" N.C. hex. hd. cap screw w/lockwasher

2шт.

6429A

ELBOW - hydraulic pump filter

1шт.

3/8" x 4-1/4" N.C. hex. hd. cap screw w/lockwasher

2шт.

3674AA

SCREEN ASSEMBLY - hydraulic pump intake

1шт.

3765AA

DRIVE GEAR AND SHAFT - hydraulic pump

1шт.

3766AA

IDLER GEAR AND SHAFT - hydraulic pump

1шт.

O6947AB

X

SNAP RING - hydraulic pump screen retainer

1шт.

O8423AB

PIN - hydraulic pump body dowel

2шт.

O8425AB

X

COUPLING - hydraulic pump drive shaft

1шт.

O8901AB1

PLATE - oil deflector

1шт.

O10609AB

X

COUPLING - hydraulic pump drive

1шт.
