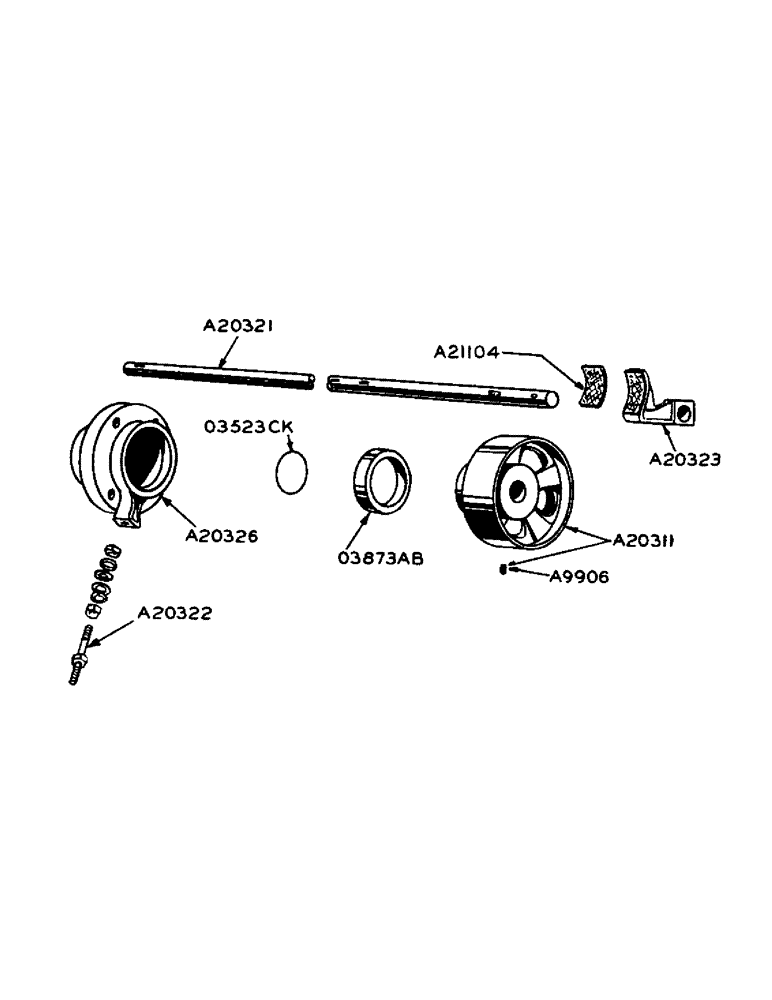

Запчасти Case IH 920 (15) - TRANSMISSION BRAKE (07) - BRAKES

A9906

X

SET SCREW - brake pulley

2шт.

A20311

PULLEY - first reduction shaft brake (includes 2 - A9906)

1шт.

A20319

PULLEY - first reduction shaft brake (use A20311)

1шт.

A20321

SHAFT - clutch throwout

1шт.

1/2" x 2" groove pin type "S"

1шт.

A20322

BOLT - bearing carr. anchor

1шт.

A20323

BRAKE shoe w/lining and rivets

1шт.

3/8" x 1 - 1/2" sq. hd. set screw NC with hex. jam nut

2шт.

A20326

CARRIER - bearing, first reduction shaft R.H. (includes 02879AB bearing cup)

1шт.

A21104

LINING

- brake shoe (includes rivets)

1шт.

O3873AB

X

OIL SEAL- bearing carrier

1шт.

O3523CK

X

"O" RING - brake pulley

1шт.
