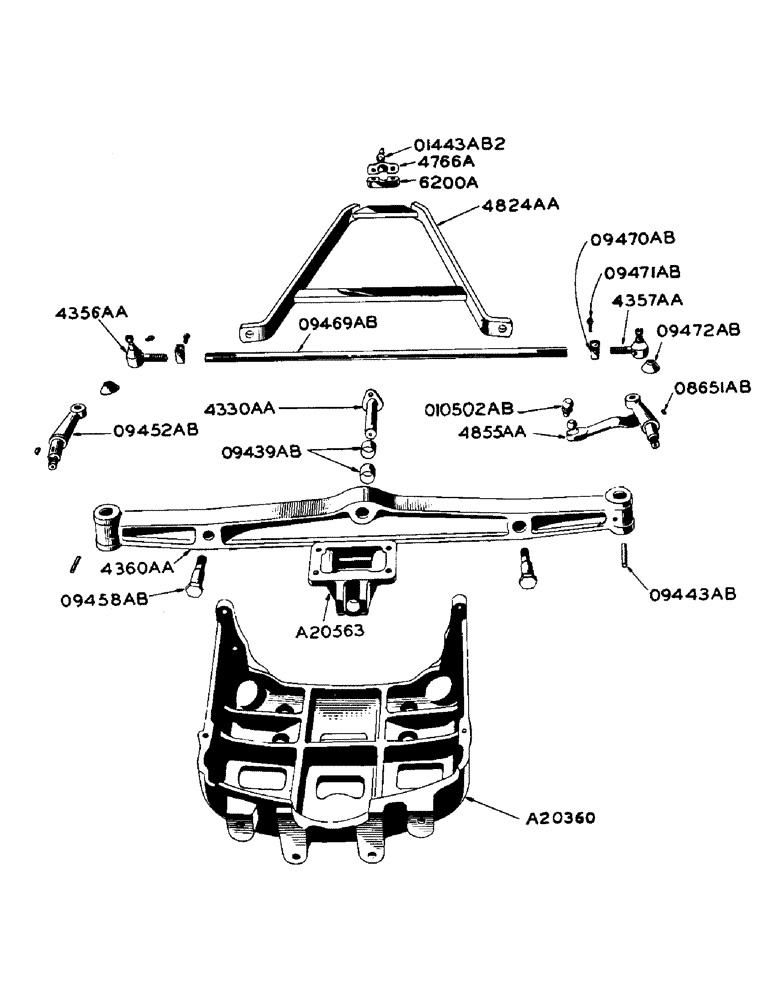

Запчасти Case IH 920 (20) - FRONT AXLE (06) - POWER TRAIN

A131-301

MARSDEN LOCKNUT (5/8"), steering spindle arm ball, L.H.

1шт.

A20360

BRACKET - front axle and radiotor

1шт.

3/4" x 2" N.C. hex. bolt w/lockwasher

4шт.

A20563

PEDESTAL - front axle

1шт.

5/8" x 2" N.C. hex. bolt w/lockwasher

4шт.

4766A

CAP - radius rod ball socket

1шт.

5/8" x 4" N.F. hex. bolt w/nut and lockwasher

2шт.

6200A

SOCKET - radius rod ball

1шт.

4330AA

PIN - front axle pivot

1шт.

1/8" straight lincoln fitting no. 5000

1шт.

1/2" x 1-1/4" N.F. hex bolt w lockwasher

1шт.

4360AA

AXLE - front, with pivot pin bushings

1шт.

5/8" x 1-1/2" N.F. hex bolt w/jam nut

2шт.

4824AA

RADIUS ROD - front axle

1шт.

4855AA

ARM - steering spindle, L.H. w/ball

1шт.

1" N.F. hex. nut w/lockwasher

1шт.

O1443AB2

BALL - radius rod pivot

1шт.

3/4" N.F. hex, nut w/lockwasher

1шт.

O8651AB

X

WOODRUFF KEY - for 09452AB and 4855AA spindle arms

2шт.

O9436AB

AXLE - front (use 4360AA)

1шт.

O9439AB

BUSHING - pivot pin

2шт.

O9443AB

X

LOCK - king pin

2шт.

5/8" N.F. hex. nut w/lockwasher

2шт.

O9452AB

ARM - steering spindle, R.H.

1шт.

1" N.F. hex, nut w/lockwasher

1шт.

O9458AB

BOLT - radius rod, front

2шт.

1" N.F. hex. nut w/lockwasher

2шт.

4333AA

TIE ROD - complete

1шт.

4356AA

END - socket, w/R.H. thread and rubber dust cover and nut, parts for tie rod

1шт.

1/8" straight lincoln fitting no. 5000, parts for tie rod

1шт.

5/8" N.C. hex. slotted nut, parts for tie rod

1шт.

4357AA

END - socket, w/L.H. thread and rubber dust cover and nut, parts for tie rod

1шт.

1/8" straight lincoln fitting no. 5000, parts for tie rod

1шт.

5/8" N.C. hex. slotted nut, parts for tie rod

1шт.

O9469AB

ROD - tie, parts for

1шт.

O9470AB

CLAMP - for tie rod, parts

2шт.

O9471AB

BOLT - for 09470AB, parts for tie rod

2шт.

1/2" N.F. hex. nut w/lockwasher, parts for tie rod

2шт.

O9472AB

X

SEAL - rubber dust cover, parts for tie rod

2шт.
