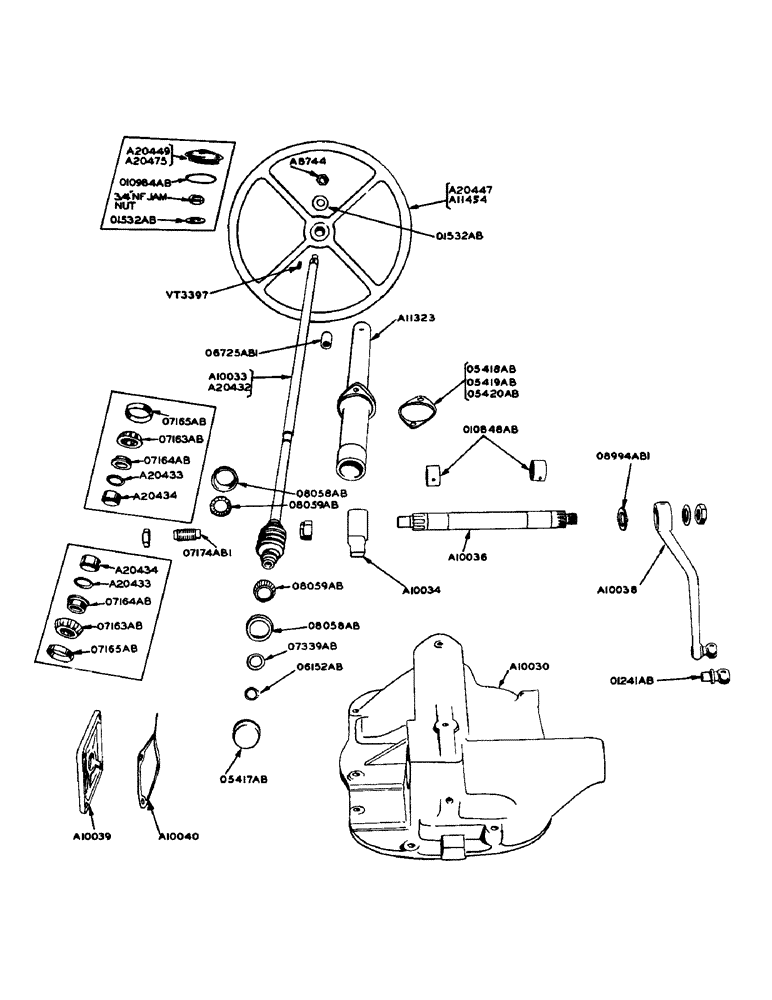

Запчасти Case IH 920 (24) - STEERING GEAR, USE PAGE 97 OF PARTS CATALOG NO. 628 WITH THE FOLLOWING EXCEPTIONS (05) - STEERING

A8744

NUT

- steering wheel shaft, Serial Range: -8141036

1шт.

A10033

SHAFT - steering wheel w/worm gear (all tractors except serial no. 8129086 to 8129683) see A20432, Serial Range: 8129086-8129683

1шт.

3/4" fin. hex. jam nut (NF), Start Serial: 8141036

1шт.

A11454

WHEEL - steering see A20447, Serial Range: -8141036

1шт.

A20447

WHEEL - steering, Start Serial: 8141036

1шт.

A20449

EMBLEM CASE/IH

MEDALLION - steering wheel no power steering (see A20475), Start Serial: 8141036

1шт.

A20475

CAP

MEDALLION - steering wheel with power steering, Start Serial: 8141036

1шт.

O8058AB

X

CUP - steering shaft bearing (Timken #24) all tractors except serial no. 8129086 to 8129683, Serial Range: 8129086-8129683

2шт.

O8059AB

X

CONE - steering shaft bearing (Timken #21BC) all tractors except serial no. 8129086 to 8129683, Serial Range: 8129086-8129683

2шт.

O10984AB

X

"O" RING - steering wheel medalion, Start Serial: 8141036

1шт.

A20432

SHAFT - steering w/worm gear

1шт.

A20433

WASHER - worm gear adapter

2шт.

A20434

SLEEVE - worm gear adapter

2шт.

O7163AB

X

ROLLER - bearing, steering shaft (Timken no. 11BC)

2шт.

O7164AB

X

CONE - steering shaft (Timken no. 12BC)

2шт.

O7165AB

X

CUP - steering shaft (Timken no. 13BC)

2шт.
