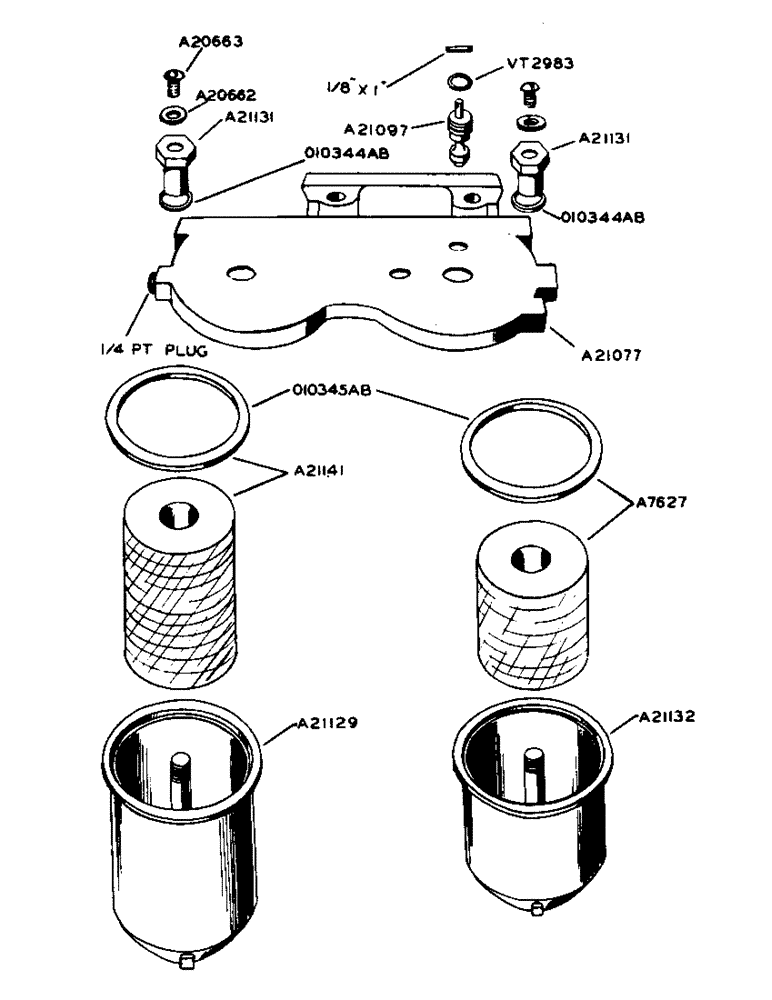

Запчасти Case IH 920 (09) - DIESEL ENGINE, PARTS FOR A21133 FIRST AND SECOND STAGE FUEL FILTERS (03) - FUEL SYSTEM

A7627

FILTER, ELEMENT

ELEMENT - second stage filter w/010345AB gasket

1шт.

A20662

GASKET

- for A20663 bleed valve screw

2шт.

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed valve

2шт.

A21077

FILTER HEAD

HEAD - 1st and 2nd stage filter

1шт.

1/4" sq. hd. pipe plug

1шт.

1/8" sq. hd. pipe plug

1шт.

A21097

VALVE - fuel filter by-pass

1шт.

1/8" x 1" roll pin

1шт.

A21129

BODY

- first stage filter

1шт.

1/8" sq. pipe plug

1шт.

A21131

NUT

- first and second stage filter body

2шт.

A21132

BODY

- second stage filter

1шт.

1/8" sq. hd. pipe plug

1шт.

A21141

FILTER, ELEMENT

ELEMENT - first stage filter w/010345AB gasket

1шт.

O10344AB

X

GASKET - A21131 body, Serial Range: nut-head

2шт.

O10345AB

X

GASKET - 1st and 2nd filter, Serial Range: body-head

2шт.

VT2983

X

"O" RING - by pass valve

1шт.
