Запчасти Case IH 920 (08) - DIESEL ENGINE, FIRST AND SECOND STAGE FUEL FILTERS AND TUBES SERIAL NO. 8141036 & AFTER (03) - FUEL SYSTEM

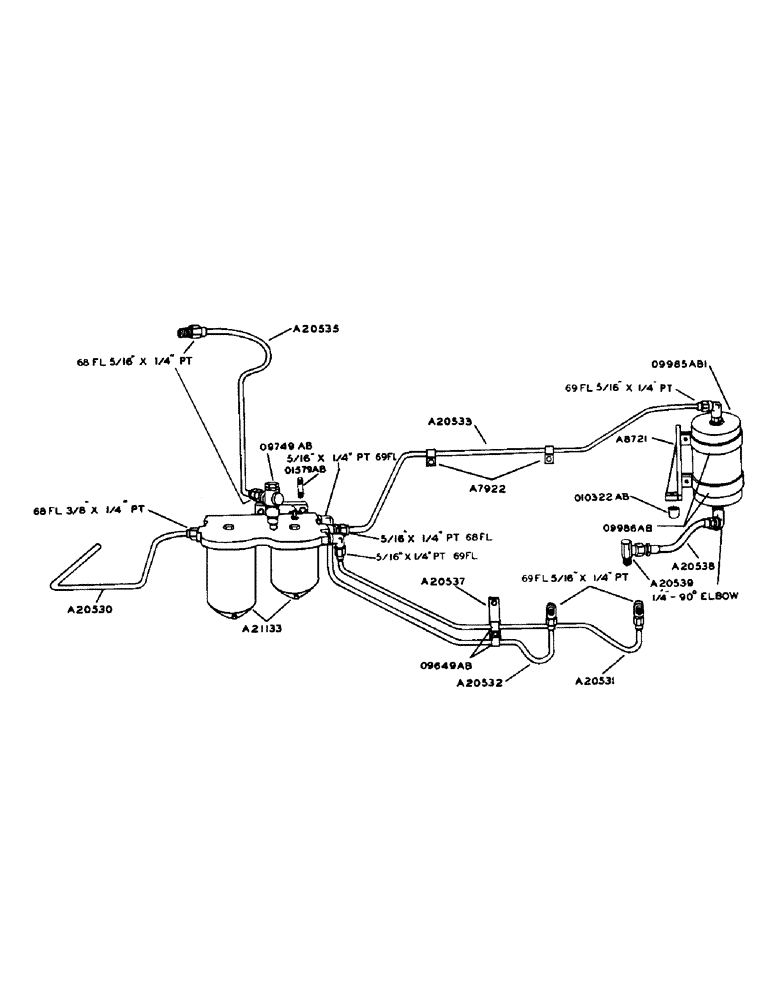

Схема запчастей Case IH 920 - (08) - DIESEL ENGINE, FIRST AND SECOND STAGE FUEL FILTERS AND TUBES SERIAL NO. 8141036 & AFTER (03) - FUEL SYSTEM

№

Артикул

Название

Примечание

Количество

A20530

TUBE - fuel tank to first stage filter

1шт.

Imperial flex connector #68FL (3/8" tube x 1/4" PT)

1шт.

A20531

TUBE

- first stage, Serial Range: filter-pump

1шт.

Imperial flex. elbow #69FL (5/16" tube x 1/4" PT)

2шт.

A20532

TUBE - fuel pump to second stage filter

1шт.

Imperial flex. elbow #69FL (5/16" tube x 1/4" PT)

2шт.

A20535

TUBE - leakoff, relief valve to fuel tank

1шт.

Imperial flex. connector #68FL (5/16" tube x 1/4" PT)

2шт.

A20537

SUPPORT - for #09649AB clips

1шт.

3/8" x 3/4" fin. hex bolt N.C. w/int. tooth lockwasher, Serial Range: (support-block)

1шт.

1/4" x 1/2" rhd. mach. screw N.C. lockwasher, Serial Range: (support-clip)

1шт.

A21133

FILTER

- first and second stage fuel (Assembly)

1шт.

O1579AB

STUD - A21077 filter, Serial Range: head-block

2шт.

3/8" fin. hex nut N.F. w/lockwasher

2шт.

O9649AB

CLIP FOR A20531 AND A20532 FUEL TUBES

2шт.

O9749AB

VALVE - relief, American Bosch (VA7928A)

1шт.

A7922

CLIP

FOR A20533 FUEL TUBE TO DECOMPRESSION HOUSING

2шт.

A8721

BRACKET - final stage fuel filter

1шт.

7/16" fin. hex bolt N.C. lockwasher

2шт.

A20533

TUBE

- second stage filter to final stage

1шт.

Imperial flex. connector #68FL (5/16" tube x 1/4" PT) tube to second filter

1шт.

Imperial flex. elbow #69FL (5/16" tube x 1/4" PT) tube to final filter

1шт.

A20538

FUEL HOSE,0.38" ID x 8.50"

Final stage filter to pump 0.38" ID x 8.50"

1шт.

1/4" 90 deg. street elbow, brass, Serial Range: (hose-filter)

1шт.

A20539

FITTING

UNION - 90 deg. adapter, connects A20538 hose to fuel pump

1шт.

O9985AB1

FILTER - final stage

1шт.

O9986AB

CLAMP - final stage filter

2шт.

5/16" x 1/2" fin. hex bolt, N.C. w/shakeproof ext.-int. lockwasher #4018-24

1шт.

5/16" x 3/4" fin. hex bolt, N.F. w/shakeproof ext.-int. lockwasher #4018-24

3шт.

1/4" x 1-1/2" rhd. mach. screw w/hex nut

2шт.

5/16" fin. hex nut N.F.

3шт.

O10322AB

SPACER - filter mounting (without power steering)

2шт.

Imperial #60FL nut and #61FL SLEEVE (5/16" tube) for A20531, A20535 and A20533 tubes

1шт.

Imperial #60FL nut and #61FL SLEEVE (3/8" tube) for A20531 tube

1шт.

Выбрано товаров: 34
