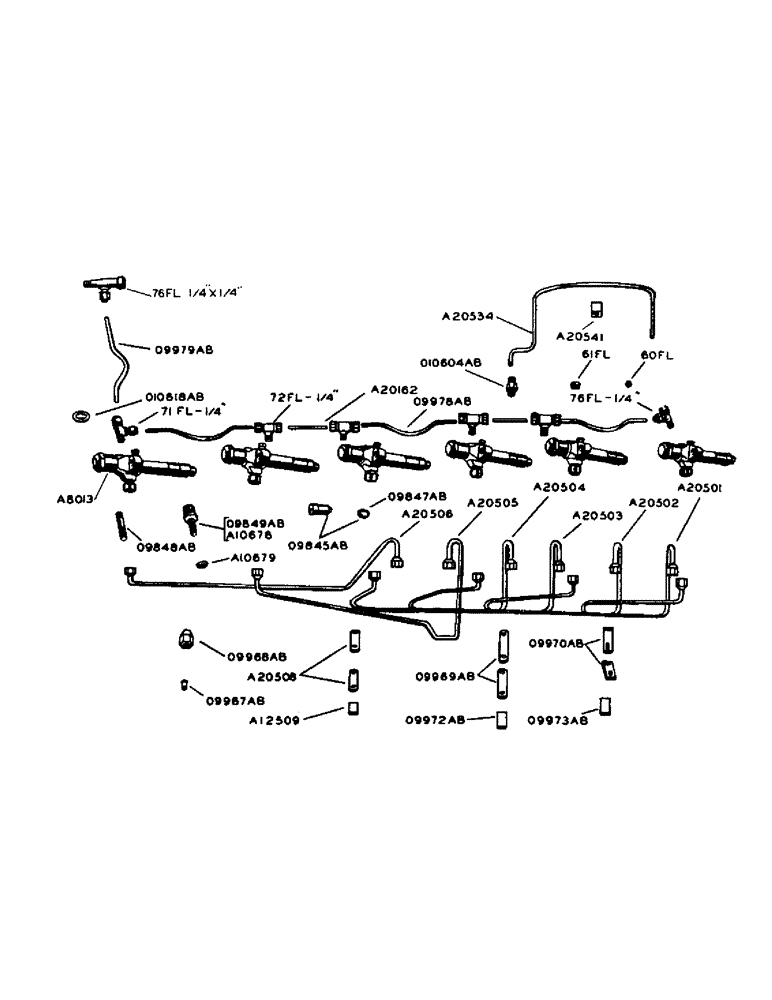

Запчасти Case IH 920 (07) - DIESEL ENGINE, FUEL INJECTOR NOZZLE AND TUBES, SERIAL NO. 8141036 AND AFTER (02) - ENGINE

A8013

NOZZLE INJECTION

NOZZLE - injector w/holder and gasket

6шт.

A10678

STUD

- nozzle holder, large (7/8" across flats) See 09849AB

6шт.

A10679

GASKET

- for A10678 stud

6шт.

A12509

CUSHION - between A20508 clamp and injector tubes

2шт.

A20162

TUBE

- injector leakoff upper

2шт.

Imperial flex - tee #72FL (1/4" tube x 1/8" PT)

4шт.

A20501

TUBE

- fuel injector, w/sleeves and nuts, No. 1 cylinder

1шт.

A20502

TUBE

- fuel injector, w/sleeves and nuts, No. 2 cylinder

1шт.

A20503

TUBE

- fuel injector, w/sleeves and nuts, No. 3 cylinder

1шт.

A20504

TUBE

- fuel injector, w/sleeves and nuts, No. 4 cylinder

1шт.

A20505

TUBE

- fuel injector, w/sleeves and nuts, No. 5 cylinder

1шт.

A20506

TUBE

- fuel injector, w/sleeves and nuts, No. 6 cylinder

1шт.

A20508

CLAMP

- injector tube (2 tubes)

2шт.

#10 x 1"k rhd. mach. screen N.C. w/nut and lockwasher

2шт.

A20534

TUBE - fuel pump leakoff to No. 1 cylinder

1шт.

Imperial flex tee 71FL (1/4" tube x 1/8" PT), Serial Range: tube-nozzle

1шт.

A20541

CLIP

- for A20534 leakoff tube

1шт.

O9845AB

X

NOZZLE - injector, with 09847AB gasket

6шт.

O9847AB

X

GASKET - injector nozzle

6шт.

O9848AB

X

STUD - nozzle holder small

6шт.

3/8" N.F. light hex nut

6шт.

O9849AB

STUD - nozzle holder, large (3/4" across flats) See A10678

6шт.

O9967AB

X

SLEEVE - fuel injector tube coupling

12шт.

O9968AB

NUT - fuel injector tube coupling

12шт.

O9969AB

X

CLAMP - injector tube (3 tubes)

4шт.

#10 x 1" rhd. mach. screw N.C w.hex nut and lockwasher

8шт.

O9970AB

X

CLAMP - injector tube (5 tubes)

1шт.

#10 x 1" rhd. mach screw N.C. w/nut and lockwasher

2шт.

O9972AB

X

CUSHION - between #09969AB clamp and injector tubes

4шт.

O9973AB

X

CUSHION - for #09970AB

2шт.

O9978AB

X

TUBE - injector leakoff, lower (1/4" tube)

3шт.

O9979AB

TUBE - injector leakoff to fuel tank

1шт.

Imperial flex. tee #71FL (1/4" tube x 1/8" PT), Serial Range: tube-nozzle

1шт.

Imperial flex. tee #76FL (1/4" tube x 1/4" PT), Serial Range: tube-tank

1шт.

O10604AB

X

CHECK VALVE - fuel pump leakoff

1шт.

O10618AB

X

GASKET - injector pressure adjusting screw protective cap

6шт.

Imperial brass #60FL sleeve and #61FL NUT (1/4" tube) for A20534, A20162, 09978AB and 09979AB tubes

1шт.
