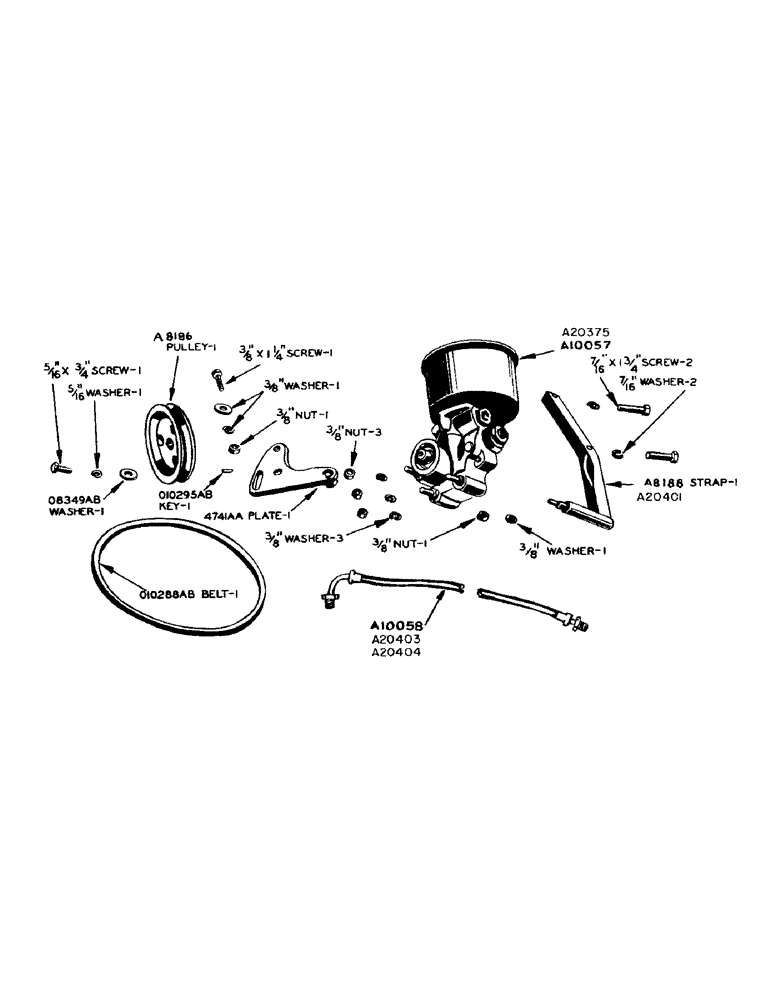

Запчасти Case IH 900 (114) - HYDRAULIC POWER STEERING PUMP (08) - HYDRAULICS

A8186

PULLEY

- pump

1шт.

5/16" x 3/4" fin. hex. bolt (NC) w/lockwasher

1шт.

A8188

STRAP - pump mounting - use with A10057 pump

1шт.

3/8" fin. hex. jam nut w/lockwasher

1шт.

7/16" x 1-1/2" fin. hex. bolt w/lockwasher (additional parts for "910" only)

2шт.

A10057

PUMP - hydraulic power steering (can use A20375)

1шт.

A10058

HOSE - pump to valve (3/8" I.D. x 30-1/4" long) use with A10057 pump

2шт.

A20375

PUMP - hydraulic power steering (roll type) w/return, Serial Range: hose-reservoir

1шт.

A20401

STRAP - pump mounting (use with A20375 pump)

1шт.

3/8" fin. hex. nut w/lockwasher

1шт.

7/16" x 1-1/2" fin. hex. bolt w/lockwasher (LP-gas only)

2шт.

A20403

HOSE - pump to valve (pressure) use with A20375 pump

1шт.

A20404

HOSE - valve to pump reservoir (return) use with A20375 pump

1шт.

5/8" hose clamp

1шт.

4741AA

PLATE - mounting

1шт.

O8349AB

X

WASHER - pump shaft end

1шт.

O10288AB

X

BELT - drive

1шт.

O10295AB

X

KEY- pulley

1шт.
