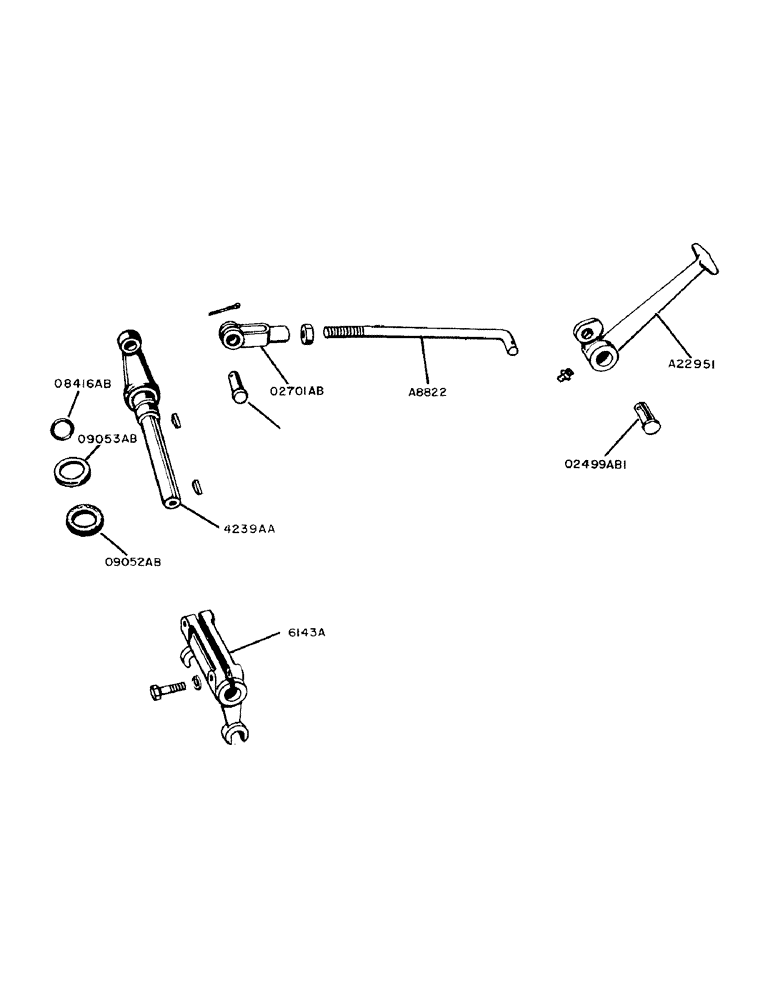

Запчасти Case IH 900 (122) - PTO CLUTCH THROWOUT (06) - POWER TRAIN

A8822

ROD - PTO clutch hand control (replaces 09537AB rod on tractors with hydraulic unit)

1шт.

1/8" x 1" cotter pin

1шт.

1/2" N.F. light hex. nut

1шт.

A10417

BRACKET - seat channel mounting w/throttle lever support and PTO clutch lever mounting pin

1шт.

A22951

X

LEVER - PTO clutch hand

1шт.

1/8" - 90 degree Lincoln fitting #5400

1шт.

6143A

X

YOKE- PTO clutch throw-out

1шт.

5/16" x 1-1/4" (NC) hex. hd. cap screw w/lockwasher

2шт.

4239AA

SHAFT AND ARM - PTO clutch throwout

1шт.

#9 Woodruff key

2шт.

O2499AB1

X

PIN - yoke end, for PTO clutch

2шт.

1/8" x 1" cotter pin

2шт.

O2701AB

X

END YOKE - PTO clutch hand control rod

1шт.

O8416AB

X

"O" RING - PTO clutch throwout shaft

1шт.

O9052AB

X

WASHER - felt, PTO clutch throwout shaft

1шт.

O9053AB

X

WASHER - felt, PTO clutch throwout shaft

1шт.

O9639AB

X

"E" RING - retaining, for PTO clutch hand lever mounting pin, on A10417 bracket

1шт.
