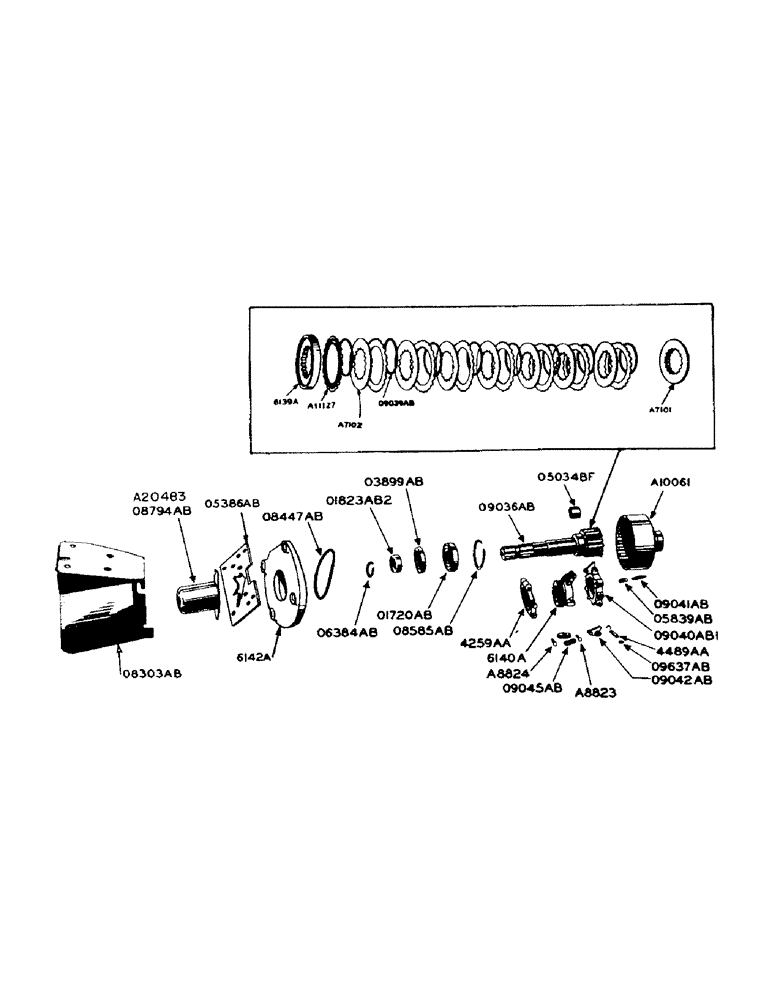

Запчасти Case IH 900 (120) - POWER TAKE OFF CLUTCH (06) - POWER TRAIN

A7101

PLATE

- PTO clutch backing

1шт.

A7102

CLUTCH DRIVING PLATE

PLATE - PTO clutch driven (steel, ground finish surface)

9шт.

A8823

PIN,6.29mm OD x 26.99mm L

- PTO clutch lever link, upper

3шт.

3/32" x 1/2" cotter pin

3шт.

A8824

PIN

- PTO clutch lever link, lower

3шт.

3/32" x 1/2" cotter pin

3шт.

A10061

DRUM - PTO clutch

1шт.

A11127

PLATE

- PTO clutch drive (bronze, circular corregations)

10шт.

A20483

GUARD

- PTO shaft tubular

1шт.

3/8" x 3/4" N.F. hex. hd. cap screw w/nut and shakeproof lockwasher #4020-26

2шт.

6139A

X

PLATE - PTO clutch pressure

2шт.

6140A

X

SLEEVE - PTO clutch sliding

1шт.

6141A

X

COLLAR - PTO clutch throwout (use 4259AA)

1шт.

6142A

CARRIER - PTO rear bearing

1шт.

4259AA

X

COLLAR - PTO clutch throwout (consists of: 2 - 6141A, 2 - 5/16" x 2" N.F. hex. hd. cap screw w/2 - 010837AB nuts)

1шт.

4489AA

X

PIN - PTO clutch finger (consists of pin with 2 - 09637AB rings)

3шт.

4550AA

PULLER - for removing needle bearing from PTO stub shaft. tractors equipped with constant PTO (same puller as 3913AA except 09915AB jaws are used)

1шт.

O1720AB

BEARING

- PTO shaft, rear (N.D. 1207)

1шт.

O1823AB2

X

SPACER - PTO stub shaft

1шт.

O3899AB

X

OIL SEAL - PTO stub shaft

1шт.

O5386AB

PLATE - PTO guard mounting

1шт.

1/2" x 1-3/4" N.C. hex. hd. cap screw w/lockwasher

4шт.

O5839AB

X

SPRING - PTO clutch adjusting lock pin

1шт.

O6384AB

SNAP RING - PTO stub shaft

1шт.

O8303AB

X

GUARD - power take-off

1шт.

3/8" x 1" carr. bolt w/hex. nut

2шт.

3/8" shakeproof lockwasher, no. 4020-26

2шт.

O8447AB

X

"O" RING - PTO rear bearing carrier

1шт.

O8585AB

X

SNAP RING - stub shaft rear bearing carrier

1шт.

O8794AB

GUARD - use A20483

1шт.

3/8" x 3/4" N.F. hex. hd. cap screw w/hex. nut

2шт.

3/8" shakeproof lockwasher no. 4020-26

2шт.

O9036AB

X

SHAFT - PTO stub

1шт.

O9039AB

SPRING

- PTO clutch drive plate separator

10шт.

O9040AB1

X

YOKE - PTO clutch adjusting

1шт.

O9041AB

X

PIN - PTO clutch adjusting lock

1шт.

O9042AB

X

FINGER - PTO clutch

3шт.

O9045AB

LINK - PTO clutch lever

6шт.

O9342AB

BAR - clutch adjusting

1шт.

O9637AB

X

"E" RING - retaining, for 4489AA

6шт.

O9914AB

DRIVER - for installing 05034BF needle bearing in PTO stub shaft

1шт.

O9915AB

JAW- for 4550AA puller

2шт.

O10837AB

NUT - 5/16" - 24 steel elastic stop for cap screw in 4259AA collar

2шт.

O5034BF

X

BEARING - pilot, on rear end of PTO and hydraulic drive shaft (Torrington #BH1616-OH)

1шт.
