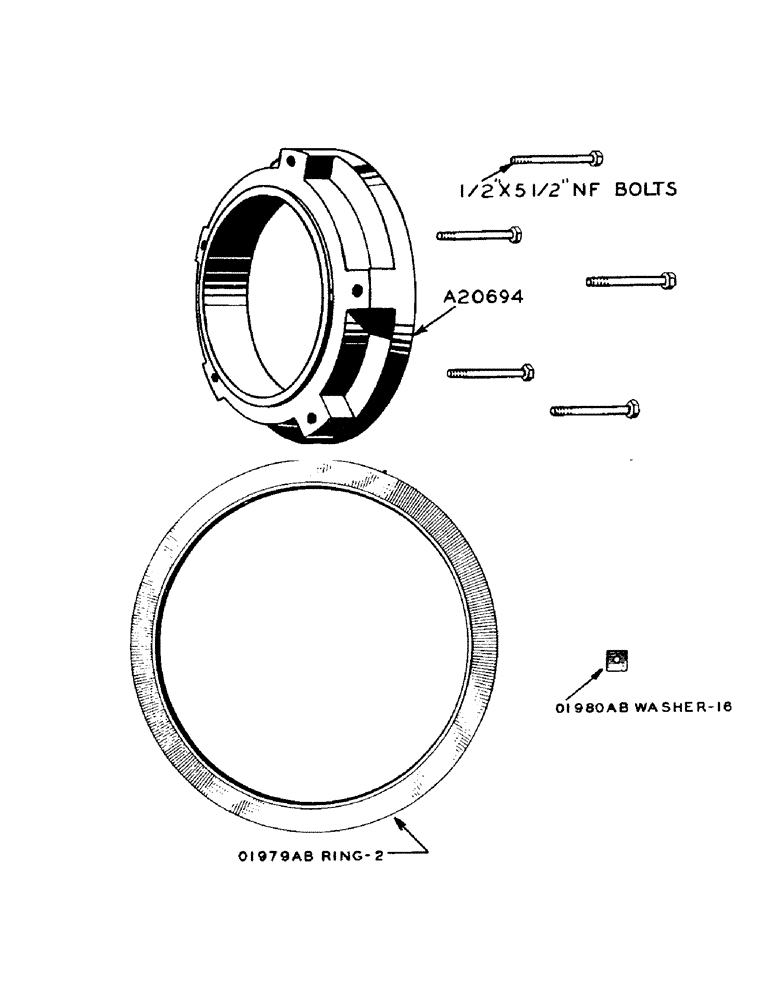

Запчасти Case IH 900 (109) - FRONT WHEEL RIM EXTENSION RINGS (06) - POWER TRAIN

A20694

RING - front wheel rim extension (see A20695)

2шт.

1/2" x 5" reg. hex. hd. bolt NF

10шт.

A20695M

RING - set of 2 front wheel rim extension (includes 10 - 1/2" x 5-1/2" reg. hex. hd. bolt NF) machy. item

1шт.

67AA

RING - set of (2) skid, for front wheel (machy. item) consists of: 2 - 01979AB, 16 - 01980AB washers and 16 - 1/2" x 1-1/2" mach. bolt w/hex. nut and lockwasher, steel

1шт.

466AA

RING - set of front wheel skid (1-1/2" high) (set consists of 4 - 01781AB rings, 12-1/12" x 1-1/4" mach. bolt w/hex. nuts and 16-1/2" lockwasher) (machy. item), steel

1шт.

O1781AB

RING - front wheel skid (1-1/2" high, half ring - 2 required per wheel) 1/2" x 1-1/4" mach. bolt w/hex. nut and lockwasher (see 466A), steel

16шт.

O1979AB

RING - (3") front wheel skid, for, steel

2шт.

1/2" x 1-1/2" mach. bolt w/hex. nut and lockwasher, skid rings for steel front wheels

16шт.

O1980AB

WASHER - spacing, 3" front wheel skid ring, for, steel

16шт.
