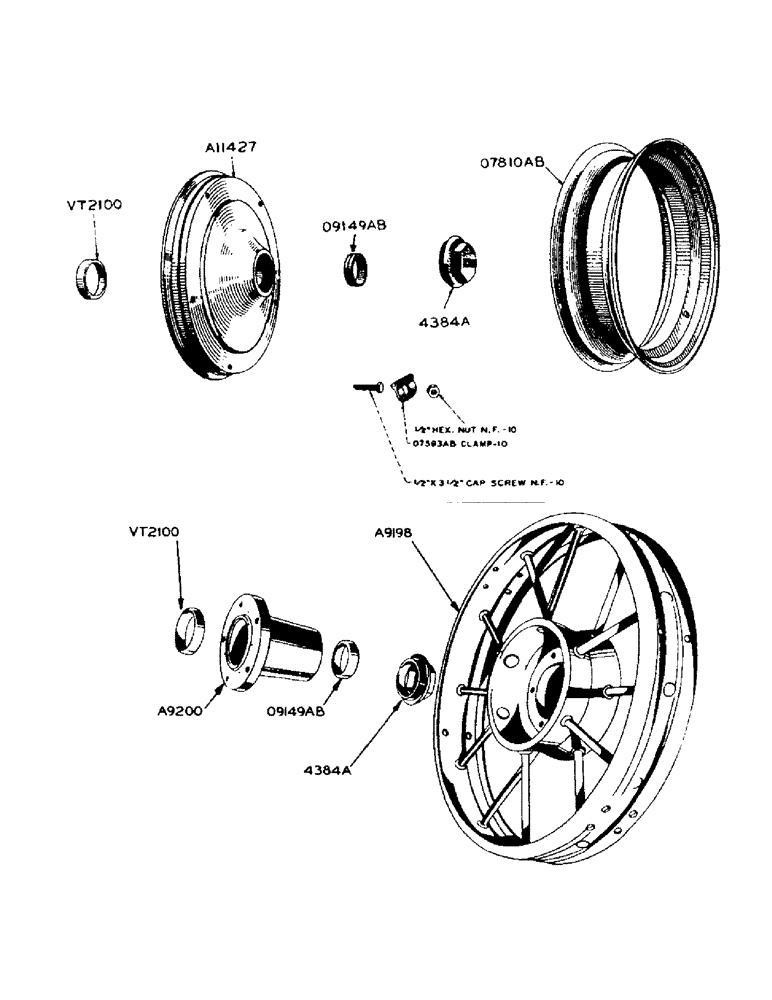

Запчасти Case IH 900 (108) - FRONT WHEELS FOR PNEUMATIC TIRES (06) - POWER TRAIN

A11426

WHEEL - front (use A11427)

1шт.

A11427

WHEEL

- front w/09149AB and VT2100 bearing cups

2шт.

4384A

X

CAP - front wheel hub

2шт.

O7593AB

X

CLAMP - front wheel rim (5 per wheel)

10шт.

1/2" x 3-1/2" (NF) fin. hex. hd. bolt w/heavy semi-finish hex. nut

10шт.

O7810AB

X

RIM - front (5.50F - 18, full drop center without drive lugs) for 7.50-18, 4 ply triple rib tractor tire (valve TR15CW)

2шт.

O9149AB

X

CUP - outer bearing

1шт.

VT2100

X

CUP - inner bearing

1шт.

A9198

WHEEL - steel front (5" x 28")

2шт.

1/2" x 2" (NC) hex. bolt w/lockwasher, steel front wheel

10шт.

A9199

HUB - front wheel (use A9200), steel

1шт.

A9200

HUB - front wheel with bearing cups (consists of: 1 - VT2100, 1 - 09149AB, 1 - A9199), steel

2шт.

4384A

X

CAP - front wheel hub, steel

2шт.

O9149AB

X

CUP - outer bearing (Timken #25820), steel front wheel

2шт.

VT2100

X

CUP - inner bearing (Timken #25520), steel front wheel

2шт.
