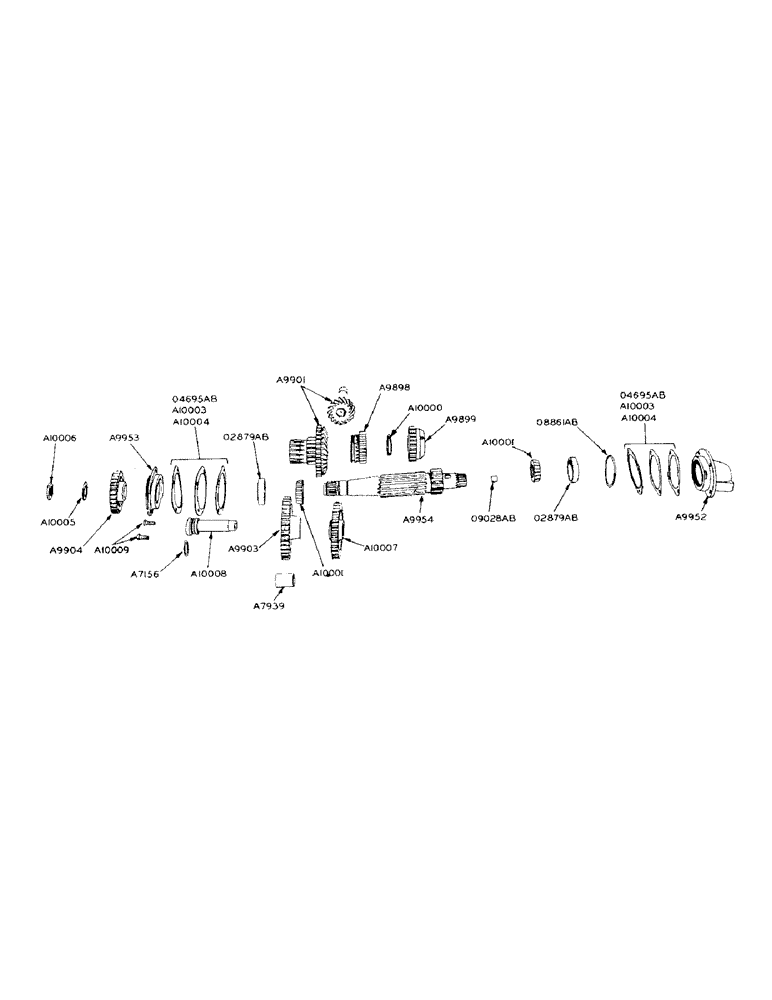

Запчасти Case IH 900 (085) - FIRST REDUCTION SHAFT (06) - POWER TRAIN

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - reverse idler gear stud

1шт.

A7939

BUSHING - reverse idler gear

1шт.

A9898

PINION - third speed sliding (39T-22T)

1шт.

A9899

PINION - fourth speed (36T-25T)

1шт.

A9901

SHAFT - clutch, with pinion and transmission bevel gear (see note)

1шт.

A9903

GEAR - (37T) reverse idler w/bushing

1шт.

A9904

PINION - fifth speed (33T-28T)

1шт.

A9952

CARRIER - 1st. reduction shaft bearing R.H. (used without transmission brake) see A20326

1шт.

1/2" x 1-1/2" N.C. hex. hd. cap screw w/lockwasher

4шт.

A9953

CARRIER - 1st reduction shaft bearing, L.H.

1шт.

1/2" x 1-1/4" N.C. hex. hd. cap screw w/lockwasher

4шт.

A9954

SHAFT

- 1st reduction

1шт.

A10000

SNAP RING,#306, Ext

Ring, Snap, , fourth speed pinion #306, Ext

1шт.

A10001

ROLLER BEARING,2.0625" ID x 1.193"

CONE - 1st reduction shaft bearing (Timken no. 3767)

2шт.

A10003

SHIM - 1st reduction shaft bearing carrier R.H. and L.H. (.005")

4шт.

A10004

SHIM - 1st reduction shaft bearing carrier, R.H. and L.H. (.015")

7шт.

A10005

WASHER

LOCKWASHER - 5th speed pinion retaining nut on clutch shaft

1шт.

A10006

NUT - retaining, fifth speed pinion

1шт.

A10007

GEAR - transmission oil thrower (34T-19T)

1шт.

A10008

STUD - reverse idler gear

1шт.

1/2" x 1-3/4" N.C. hex. cap screw w/lockwasher

1шт.

A10009

SCREW,Stud, Hex, 1/2" - 13 x 1 1/4", Nylon Insert

- reverse idler gear stud

2шт.

A10413

GAUGE - for setting spiral bevel pinion

1шт.

A20326

CARRIER - 1st reduction shaft bearing R.H. (used with transmission brake)

1шт.

O2879AB

X

CUP - 1st reduction shaft bearing (Timken no. 3720)

2шт.

O3873AB

X

OIL SEAL - for A20326 carrier

1шт.

O4695AB

SHIM - 1st reduction shaft bearing carrier, .003" thick

4шт.

O8861AB

X

"O" RING - 1st reduction shaft bearing carrier

1шт.

O9028AB

X

BUSHING - 1st reduction shaft

1шт.
