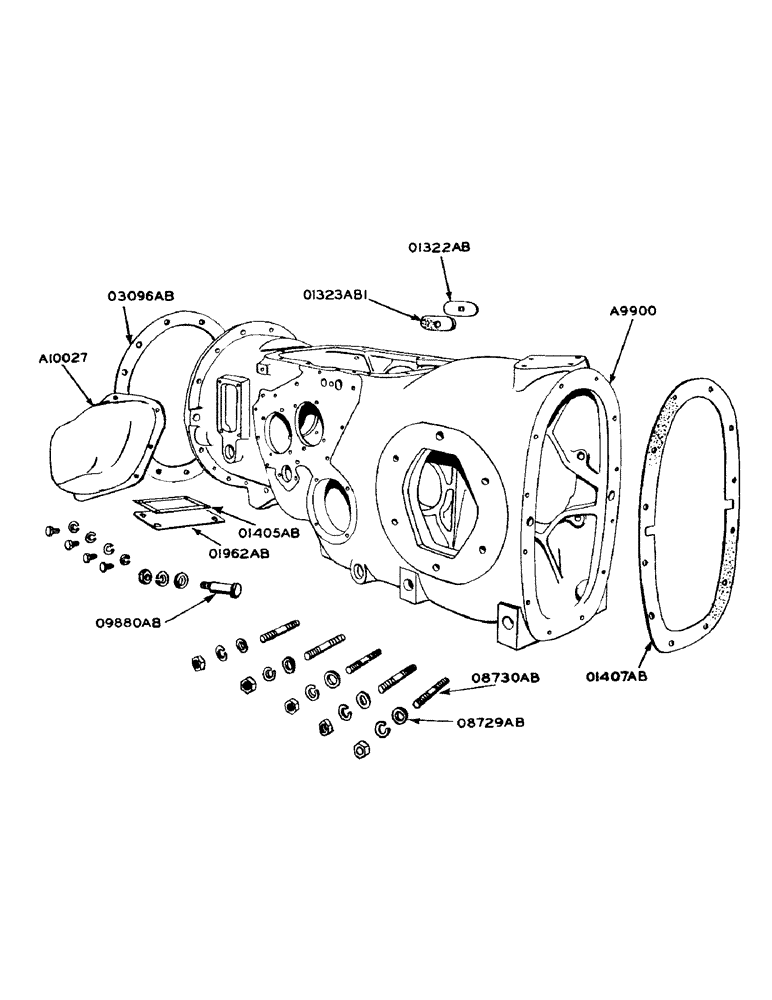

Запчасти Case IH 900 (084) - TRANSMISSION CASE (06) - POWER TRAIN

A9900

CASE - transmission

1шт.

3/8" countersunk headless set screw

1шт.

1/2" sq. hd. pipe plug

1шт.

1-1/4" sq. hd. pipe plug

1шт.

5/8" x 1-3/4" N.C. hex. hd. cap screw w/lockwasher (transmission case to cylinder block)

4шт.

5/8" x 2-1/4" N.C. hex. hd. cap screw w/hex. nut and lockwasher (transmission case to cylinder block)

3шт.

A10027

HOUSING - fifth speed gear

1шт.

3/8" x 1-1/4" N.C. hex. hd. cap screw w/lockwasher

8шт.

3/8" sq. hd. pipe plug

1шт.

1/2" sq. hd. pipe plug

1шт.

A10028

X

GASKET - fifth speed gear housing

1шт.

A10029

STUD - fifth speed gear housing

1шт.

3/8" N.F. hex. nut and lockwasher

2шт.

O1322AB

PLATE - shifter shaft end

2шт.

O1323AB1

X

GASKET - shifter shaft end plate

2шт.

O1405AB

X

GASKET - clutch hand hole cover

2шт.

O1407AB

X

GASKET - transmission case rear cover

1шт.

O1962AB

COVER - clutch hand hole

2шт.

1/2" x 3/4" N.C. hex. hd. cap screw w/lockwasher

12шт.

O3096AB

X

GASKET - engine to transmission case

1шт.

O8729AB

X

WASHER - rear axle housing stud

10шт.

O8730AB

STUD - rear axle housing (3/4" x 3-3/8" long)

8шт.

O9880AB

BOLT - transmission and cylinder block flange

2шт.
