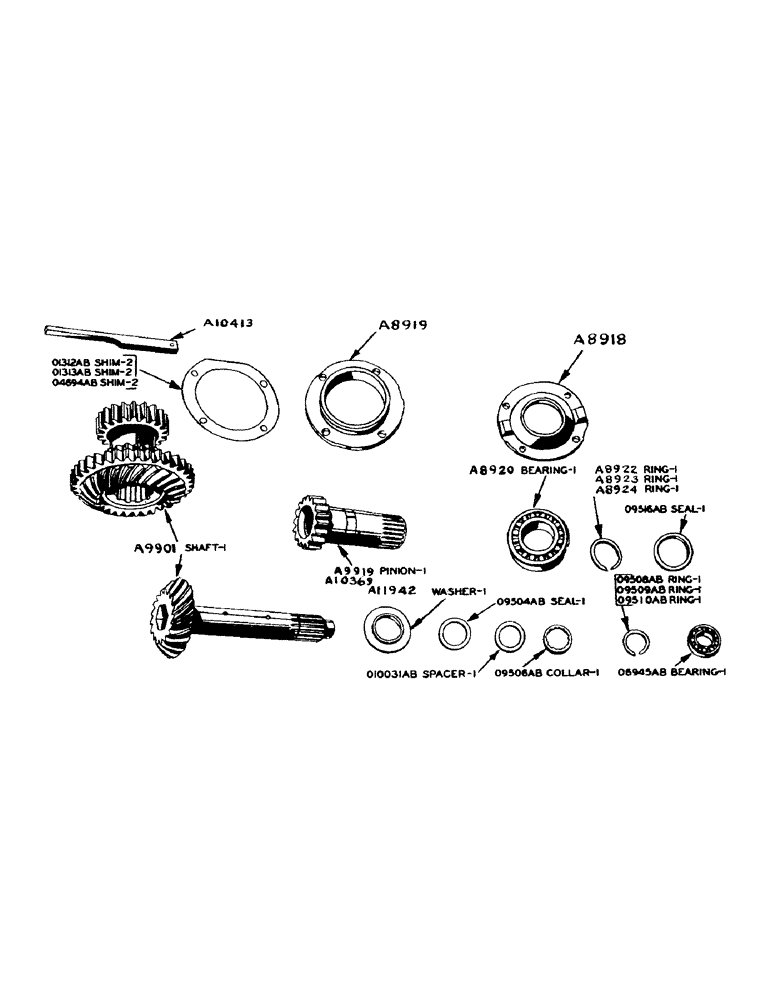

Запчасти Case IH 900 (080) - CLUTCH SHAFT (06) - POWER TRAIN

A8918

CARRIER - clutch shaft bearing, front

1шт.

A8919

CARRIER - clutch shaft bearing, rear

1шт.

1/2" x 1-1/2" N.C. hex. hd. cap screw w/lockwasher

4шт.

A8920

BALL BEARING,2.5591" ID x 4.7244" OD x 1.5"

BEARING - (N.D. #45213) clutch shaft, rear end

1шт.

A8922

SNAP RING - clutch shaft bearing retaining, 1/2" thick

1шт.

A8923

SNAP RING - clutch shaft bearing retaining, .1135 thick

1шт.

A8924

SNAP RING - clutch shaft bearing retaining, .115 thick

1шт.

A8926

OIL SEAL

- PTO pinion and sleeve

1шт.

A9901

SHAFT - clutch, with pinion and transmission bevel gear

1шт.

When clutch shaft and bevel pinion or transmission bevel gear are ordered for repairs, we furnish A9901 clutch shaft and bevel pinion with matched bevel gear, 09509AB and 09510AB snap rings.

1шт.

A9919

PINION - PTO drive and sleeve, w/bushings (for LP-gas tractors)

1шт.

A10369

PINION - PTO drive and sleeve, with bushings (for diesel tractors)

1шт.

A10413

GAUGE - for setting spiral bevel pinion

1шт.

A11942

WASHER

- clutch shaft and PTO thrust

1шт.

O1312AB

SHIM - clutch shaft bearing carrier, .012" thick

4шт.

O1313AB

SHIM - clutch shaft bearing carrier, .005" thick

3шт.

O4694AB

SHIM - clutch shaft bearing carrier, .003" thick

2шт.

O6945AB

X

BEARING - (N.D. #8506) clutch shaft pilot, flywheel end

1шт.

O9504AB

X

OIL SEAL - clutch shaft

2шт.

O9506AB

X

COLLAR - clutch shaft thrust

1шт.

O9508AB

SNAP RING - clutch shaft, .0835" thick

1шт.

A27758

SNAP RING

- clutch shaft (.0805" thk)

1шт.

O9510AB

X

SNAP RING - clutch shaft, .0765" thick

1шт.
