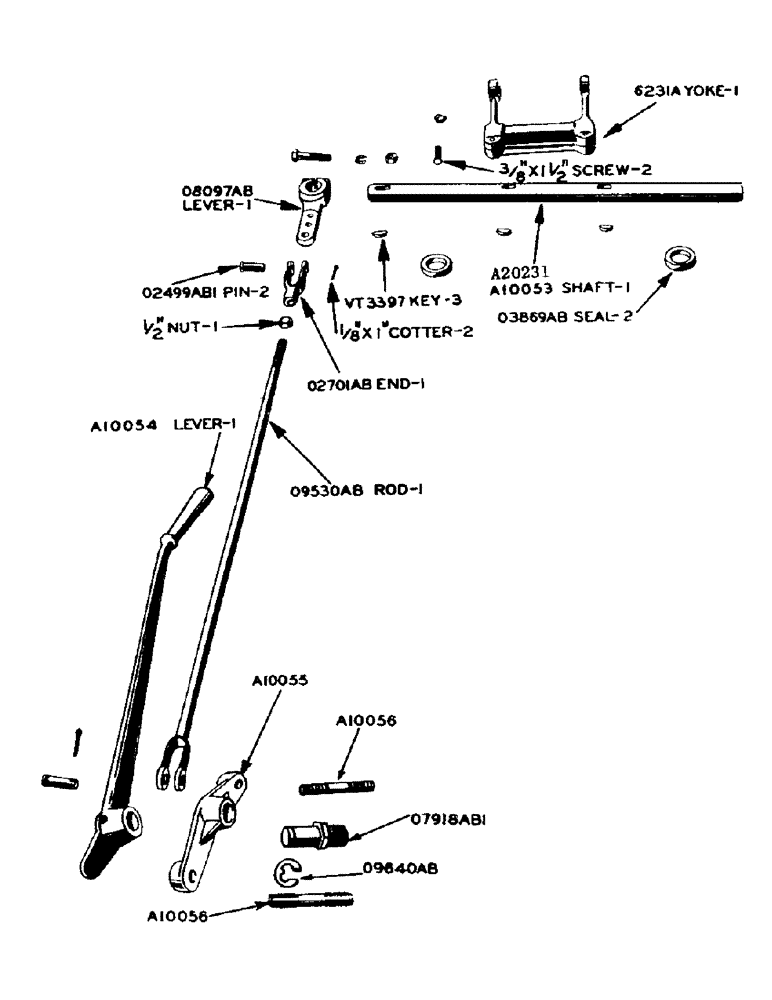

Запчасти Case IH 900 (079) - CLUTCH THROWOUT PARTS (06) - POWER TRAIN

A10053

SHAFT - clutch throwout (use without transmission brake)

1шт.

A10054

LEVER - hand

1шт.

1/8" str. Lincoln fitting #5000

1шт.

A10055

SUPPORT - hand lever

1шт.

A10056

STUD - clutch throwout hand lever support

2шт.

3/4" hex. nut (N.F.) w/lockwasher

2шт.

A20231

RING

SHAFT - clutch throwout (use w/transmission brake)

1шт.

1/2" x 2" groove pin type 5

1шт.

6231A

YOKE - clutch throwout

1шт.

3/8" x 1-1/2" (N.C.) hex. hd. cap screw w/lockwasher

2шт.

O2499AB1

X

PIN - yoke

2шт.

1/8" x 1-1/2" cotter pin

2шт.

O2701AB

X

YOKE - for 09530AB rod

1шт.

O3869AB

X

OIL SEAL - throwout shaft

2шт.

O7918AB1

STUD - hand lever

1шт.

O8097AB1

LEVER - shaft

1шт.

1/2" x 2-1/2" (N.F.) hex. hd. cap screw w/hex. nut and lockwasher

1шт.

O9530AB

ROD - clutch throwout

1шт.

1/2" (N.F.) hex. nut

1шт.

O9640AB

X

"E" RING - hand lever stud retaining

1шт.

VT3397

KEY - Woodruff, clutch throwout shaft

3шт.
